CRANE SPREADER BEAM - 2T SWL
CSB Spreader Beam
CSB Spreader Beam

CSBN Spreader Beam

Price range: $910.00 through $13,540.00

The CSBN Spreader Beams are designed in a range of capacities and lengths to suit any lifting application required by overhead crane.

FEATURES:

  • Supplied standard with 5 lifting position
  • Fitted with 2 safety swivel hooks
  • Custom lengths and capacity available on request
  • Enamel paint finish
View Pricing

Choose the Working Load Limit and beam length to suit your application.

EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS

SKU: CSBN_Main Categories: , ,
Model Description Price (Excl. GST)

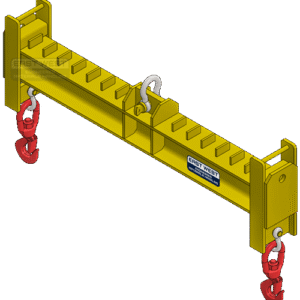

Model: CSBN2X1Description: Spreader Beam - 2T x 1m longPrice: $910.00

Add to Quote

Model: CSBN2X2Description: Spreader Beam - 2T x 2m longPrice: $1,260.00

Add to Quote

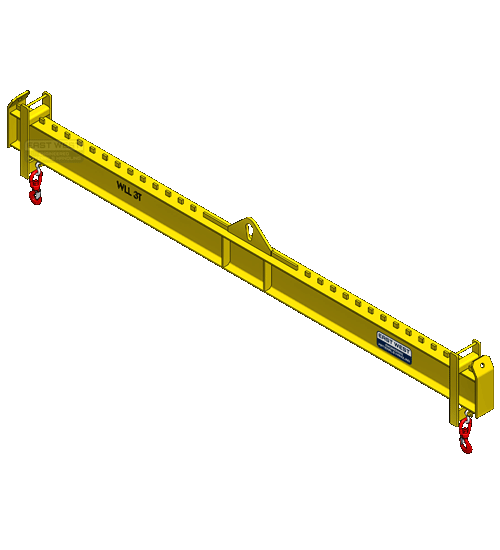

Model: CSBN3X3Description: Spreader Beam - 3T x 3m longPrice: $1,650.00

Add to Quote

Model: CSBN5X4Description: Spreader Beam - 5T x 4m longPrice: $3,980.00

Add to Quote

Model: CSBN10X4Description: Spreader Beam - 10T x 4m longPrice: $6,660.00

Add to Quote

Model: CSBN10X7Description: Spreader Beam - 10T x 7m longPrice: $13,540.00

Add to Quote

ModelWorking Load Limit (WLL) kgSpread Range (mm)No. of Lift PositionsUnit Weight (kg)
Model: CSBN2X1Working Load Limit (WLL) kg: 2,000Spread Range (mm): 160 - 950No. of Lift Positions: 5Unit Weight (kg): 31
Model: CSBN2X2Working Load Limit (WLL) kg: 2,000Spread Range (mm): 590 - 2000No. of Lift Positions: 5Unit Weight (kg): 70
Model: CSBN3X3Working Load Limit (WLL) kg: 3,000Spread Range (mm): 710 - 3000No. of Lift Positions: 5Unit Weight (kg): 110
Model: CSBN5X4Working Load Limit (WLL) kg: 5,000Spread Range (mm): 1140 - 4000No. of Lift Positions: 5Unit Weight (kg): 310
Model: CSBN10X4Working Load Limit (WLL) kg: 10,000Spread Range (mm): 1130 - 4000No. of Lift Positions: 5Unit Weight (kg): 565
Model: CSBN10X7Working Load Limit (WLL) kg: 10,000Spread Range (mm): 1730 - 7000No. of Lift Positions: 5Unit Weight (kg): 1500
Custom lengths and capacities available on request.
Working Load Limit is based on use as a lifting or spreader beam
