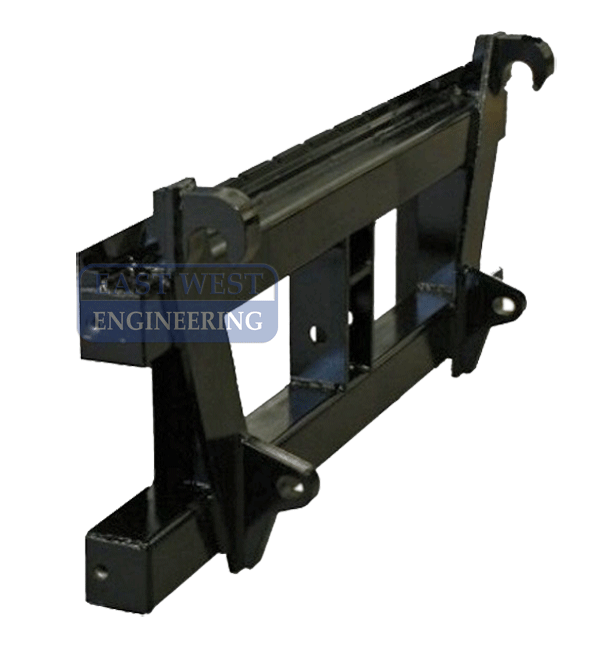

QEH25 Euro Hitch Carriage

$680.00

The QEH25 Euro Hitch Carriage is designed for the easy and safe handling of palletised goods when fitted to a tractor or loader fitted with a Euro 8 quick hitch.

FEATURES:

  • Class 2, WLL 2500kg carriage
  • Suits tractor or loader fitted with a Euro 8 quick hitch
  • Comes fitted with Euro 8 hitch lugs for easy connection
  • Carriage designed for easy fitment of optional Q-Fit accessories
  • High visibility design allows for safe operation
  • Designed in accordance with AS2359.1 and ISO 23206

OPTIONAL Q-FIT ACCESSORIES:

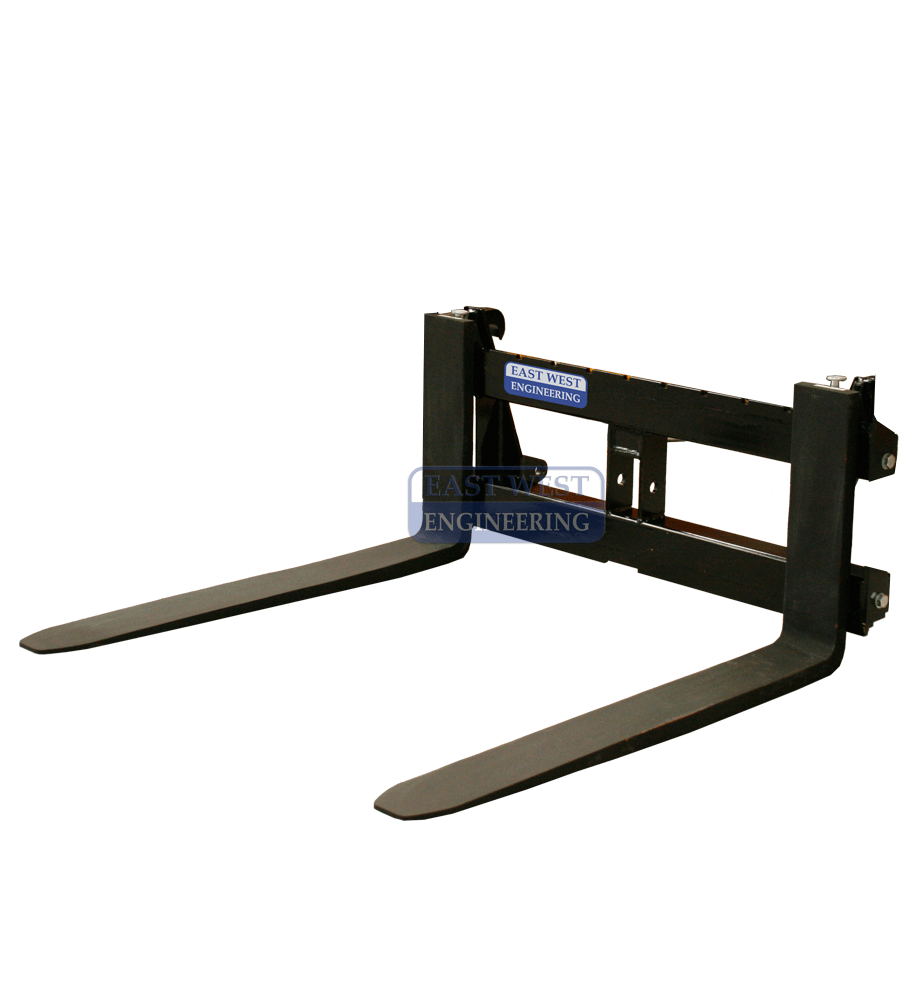

  • FA25-107E Fork Arms (Class 2, WLL 2500kg per pair, 125 x 35 x 1070mm long)
  • QEH25LG Bolt-on Load Guard for additional operator safety
  • QEH25LH  420mm Lifting Jib with hook & shackle (WLL 1500kg)
  • QEH25LHX 1000mm Lifting Jib with hook & shackle (WLL 800kg)
  • QEH25LHX2 1750mm Lifting Jib with hook & shackle (WLL 400kg)
  • QEH25TH Towing Hitch with towball  (500kg tow capacity)
  • QPH35 Pintle Hook Tow Hitch  (500/2500kg tow capacity)
  • QRP35 Drop Pin Tow Hitch  (500/2500kg tow capacity)
  • QHB2 Bale Spear Attachment (2 spears)
  • QHBV2 Vertical Bale Spear Attachment (2 spears)
  • QHB4 Bale Spear Attachment (4 spears)
  • FLF25-90 Bale Spear & Shank (WLL 250kg, Ø36 x 970mm clear length)
  • FLF4-90 Bale Spear & Shank (WLL 400kg, Ø45 x 900mm clear length)
  • FLF4-110 Bale Spear & Shank (WLL 400kg, Ø45 x 1100mm clear length)

- This hitch is for Euro 8 only
- Some tractor models do not fit standard euro hitch attachments. Check with the manufacturer for compatibility
- For Burder loaders, see models QBHS25 (Burder Style Small Hitch Carriage) & QBHL25 (Burder Style Large Hitch Carriage)
- For Challenge loaders, see model QCH25 (Challenge Style Hitch Carriage)
- Maximum load rating given is for the attachments only. Actual lifting capacities are determined by the working capacity of the tractor.
- Rating of the tractor should be confirmed by the truck manufacturer and residual capacity reduced if required

SKU: QEH25_Main Categories: , , ,
Model Description Price (Excl. GST)
Model: QEH25Description: Euro 8 Quick Hitch CarriagePrice: $680.00

Add to Quote

ModelWorking Load Limit (WLL) kgLoad Centre (mm)Carriage Width (mm)ColourUnit Weight (kg)To SuitFinish
Model: QEH25Working Load Limit (WLL) kg: 2500Load Centre (mm): 500Carriage Width (mm): 1200Colour: BlackUnit Weight (kg): 66To Suit: Euro hitchFinish: Enamel paint
