Price range: $1,960.00 through $2,380.00

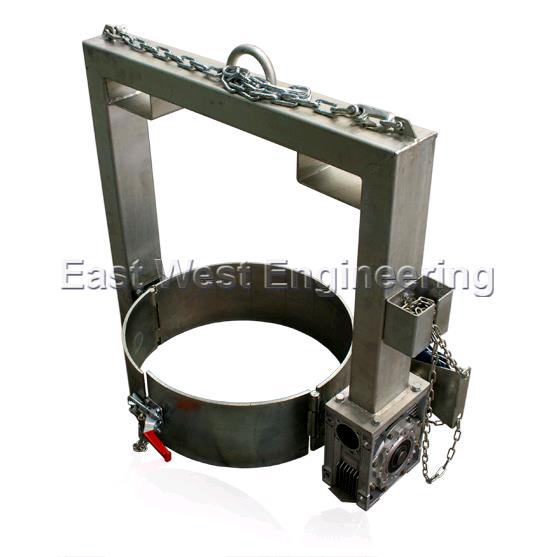

The DBR40C Drum Rotator is designed to lift and rotate a 205 litre steel drum 360° by overhead crane or forklift. Rotation of the drum is controlled throughout the operation by the chain driven gearbox which locks the drum in position when the operator stops pulling the chain, preventing dangerous and uncontrolled movements.
FEATURES:
• Empties a standard 205 litre drum with minimal effort
• For use with either overhead crane of forklift
• Suitable for drum rotation up to 3m above ground
• Rotation carried out via hand chain
• Belly strap and eccentric lock secures drum in position
• Locking pin prevents accidental release during tipping cycle
• Large worm drive gearbox provides automatic braking
• Can be coupled with the PBO Plastic Barrel Option
• Zinc finish
Plastic Barrel Option (PBO):
By replacing the standard belly strap, the PBO option allows for plastic drums and barrels, as well as standard steel drums to be handled. The dual woven and chain combination belly straps hold the drum or barrel firmly in position. The PBO option is suitable for a maximum load of 350kg
When Plastic Barrel Option (PBO) is fitted, the Working Load Limit is reduced to 350kg
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
| Model: DBR40C | Description: Crane Drum Rotator - hand chain | Price: $1,960.00 | ||
| Model: DBR40C-PBO | Description: Crane Drum Rotator - hand chain + PBO | Price: $2,380.00 | ||
| Model | Working Load Limit (WLL) kg | Rotation | Rotation Shaft CL to Lifting Eye (mm) | Fork Pocket Size (mm) | Fork Pocket Centres (mm) | Unit Weight (kg) | To Suit | Operation | Finish |
|---|---|---|---|---|---|---|---|---|---|
| Model: DBR40C | Working Load Limit (WLL) kg: 400 | Rotation: 360ø | Rotation Shaft CL to Lifting Eye (mm): 810 | Fork Pocket Size (mm): 160 x 65 | Fork Pocket Centres (mm): 615 | Unit Weight (kg): 72 | To Suit: 205L Steel drum | Operation: Hand chain | Finish: Zinc |
| Model: DBR40C-PBO | Working Load Limit (WLL) kg: 350 | Rotation: 360ø | Rotation Shaft CL to Lifting Eye (mm): 810 | Fork Pocket Size (mm): 160 x 65 | Fork Pocket Centres (mm): 615 | Unit Weight (kg): 82 | To Suit: 205L Steel/Plastic drum | Operation: Hand chain | Finish: Zinc |
Have a question about this product?
For detailed specifications please complete the form below and our sales team will be in touch shortly.
Explore related products designed for similar handling needs. With one of Australia’s most extensive ranges of material handling solutions, we’ll help you find exactly what you need.
Need help finding the right solution? Contact our sales team for expert product advice.
If the right piece of equipment isn’t available off the shelf, our in-house team can design, certify and build it for you. From tailored variations of standard products to full custom builds, we work closely with you to deliver safe, reliable solutions that meet the unique demands of your business.
Forklift attachments are engineered devices fitted to forklifts to expand their functionality beyond standard pallet handling. They allow forklifts to lift, move, tilt, rotate, clamp, or support different types of loads such as drums, bulk materials, machinery, and irregular items. These attachments are designed to improve handling efficiency and workplace safety across industrial environments.
Forklift attachments are important because they improve operational efficiency, increase load handling versatility, and reduce manual handling risks. By enabling forklifts to perform specialised tasks, they help minimise workplace injuries, reduce product damage, and streamline material handling processes in warehouses, construction sites, and manufacturing operations.
Forklift attachments improve safety by reducing the need for manual lifting and unstable handling practices. They provide better load control, improve stability during transport, and allow operators to safely manage heavy or awkward materials. This helps reduce the risk of injuries and accidents in high-risk working environments.
Yes. Adding a forklift attachment can impact the forklift’s rated capacity due to changes in load centre and additional attachment weight. The combined weight of the attachment and load must always be considered. It is recommended that forklift manufacturers or engineers confirm the revised operating capacity when using attachments.
There are many types of forklift attachments designed for specific applications, including fork extensions, work platforms, goods cages & platforms, jibs, bin tippers, drum handlers, dirt buckets, roll prongs, fork spreaders, rotators, clamps, fork positioners, sideshifts, and other specialised lifting solutions. Each attachment is engineered to suit different load types and operational requirements.
At East West Engineering, we have been designing and manufacturing forklift attachments for over 45 years, specialising in engineered solutions that enhance the versatility and capability of forklifts. Our range of standard and custom-designed attachments has helped industries across Australia safely and efficiently handle a wide variety of loads and applications.
Whether standard or purpose-built, our forklift attachments are designed to improve productivity, safety, and operational flexibility across demanding material handling environments.
Forklift attachments improve productivity by allowing a single forklift to perform multiple handling tasks without the need for additional equipment. This reduces downtime, speeds up material movement, and improves workflow efficiency across operations.
Yes. Forklift attachments can be fully customised or engineered to suit specific load sizes, weights, operating environments, and handling requirements.
At East West Engineering, we specialise in designing and manufacturing both custom forklift attachments and modifications to our standard range. With in-house engineering and production capabilities, we develop solutions tailored to your exact application, including variations in size, capacity and functionality. If the right equipment doesn’t already exist, we’ll engineer a custom solution.
Based at our Brookvale facility, our engineers and production team work closely together across design, fabrication, and manufacturing to deliver complete material handling solutions. This integrated approach ensures all equipment is Australian Standard compliant, design certified, and built for performance.
Choosing East West Engineering means more than supplying equipment, it means partnering with a specialist engineering team focused on improving safety, reliability, and productivity on site. Our engineered-to-order forklift attachments help reduce downtime, extend equipment life, and improve operational efficiency across demanding industrial environments.
While many applications can be met with our standard forklift attachment range, our engineering team can also design and deliver purpose-built solutions when required.
Speak to an East West Engineering materials handling specialist to find out how a custom forklift attachment can improve your operation.
When selecting a forklift attachment, you should consider the load type, weight, dimensions, frequency of use, operating environment, and the capacity of your forklift.
Choosing the correct attachment is critical to ensure safe operation, improve handling efficiency, and reduce the risk of product damage or equipment wear.
If you are unsure which attachment is most suitable for your application, speak with a materials handling specialist at East West Engineering. Our technical team can provide expert advice to help you select or engineer the right solution for your specific requirements.
