TPC Double Pallet Handler

Add to Favourites

Quick Overview

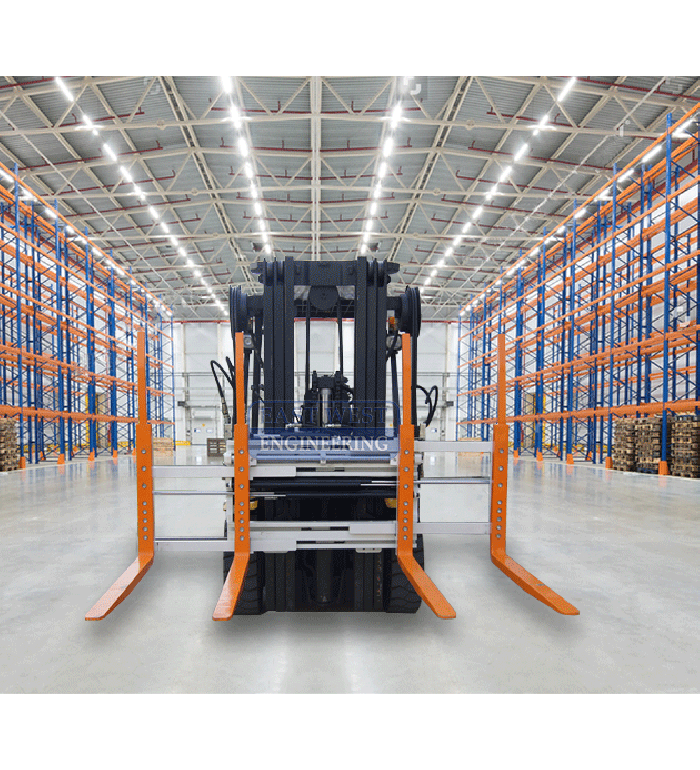

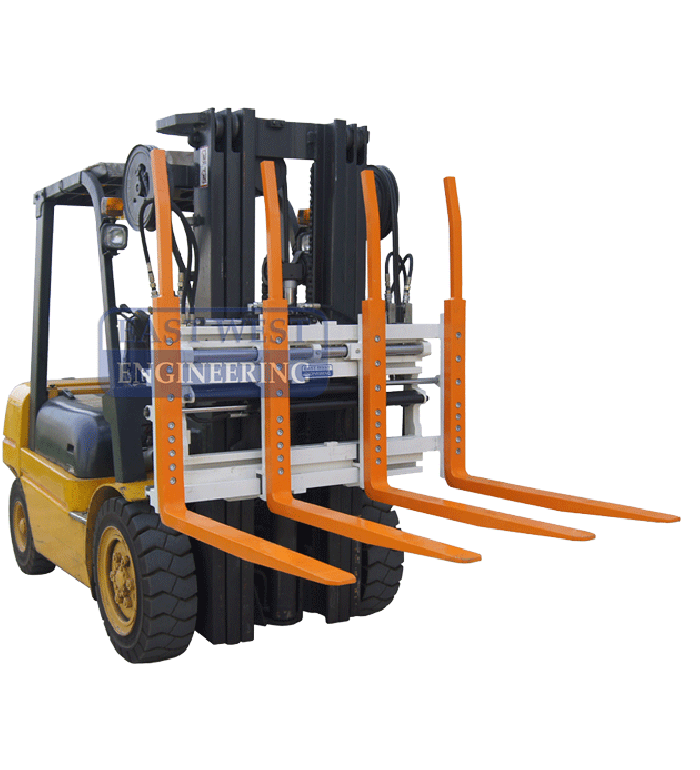

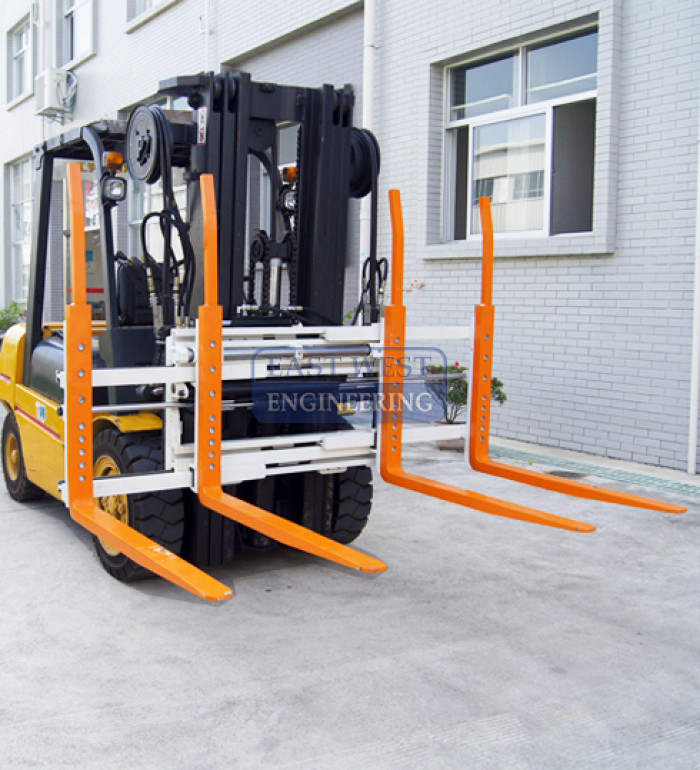

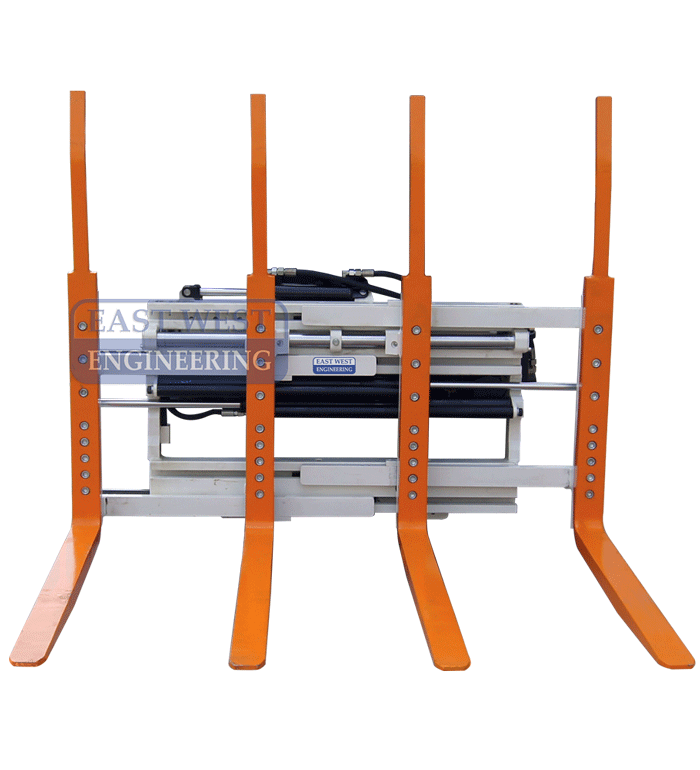

The TPC Double Pallet Handler is designed to improve the efficiency of handling multiple pallets at once.

FEATURES:
• Used to hydraulically adjust the fork opening range to handle 1 or 2 pallets simultaneously
• Sideshift function enables the forklift to move its load from side to side for ease in stacking, loading & unloading goods
• Available in a range of models designed to handle different pallet sizes
• Commonly used for handling and stacking operations in food & beverage, import/export trade and bulk goods industries

Hoses not included. Two additional hydraulic circuits required. Sideshift range: +/-100mm. Please contact the Forklift manufacturer for the residual capacity of attachment.

Details

Model	Capacity @ 600mm LC (kg)	Mounting Class	Min. Truck Carriage Width (mm)	Frame Width (mm)	Opening Range ITI (mm)	Opening Range OTO (mm)	Fork Set Spread (mm)	Fork Size (mm)	Backrest Height (mm)	Lost Load (mm)	Unit Weight (kg)
TPC25D-B001	2500	II	914	1100	330-815	660-2035	610	1065x80x45	1270	226	462
TPC25D-B002	2500	II	914	1100	330-815	660-2035	610	1150x80x45	1270	226	472
TPC25D-B006	2500	II	980	1200	230-715	560-1935	560	1150x80x45	1270	231	482
TPC25D-C001	2500	III	914	1100	330-815	660-2035	610	1065x80x45	1270	226	470
TPC25D-C002	2500	III	914	1100	330-815	660-2035	610	1150x80x45	1270	226	480
TPC25G-C003	2500	III	914	1200	490-975	825-2200	610	1065x80x45	1500	226	580
TPC30D-C001	3000	III	980	1200	230-716	560-1935	560	1150x80x50	1270	235	580
TPC32D-C001	3200	III	980	1200	330-815	660-2035	560	1150x80x60	1270	254	650

NOTES:

• Two additional hydraulic functions required
• Hoses not included
• Sideshift range: +/-100mm
• Please contact the forklift manufacturer for the residual capacity of attachment
• Further technical details available upon request, please call 1800 061 998

Model	Description	Lead Time (days)	Price (excl GST)
POA	Price on application		Please Call

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
