TF Hydraulic TeleFORKS

Add to Favourites

Quick Overview

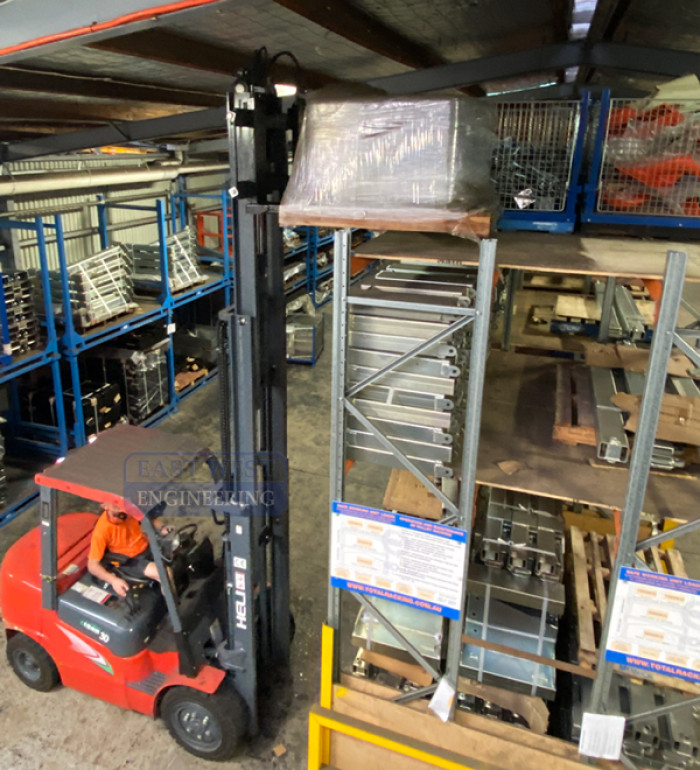

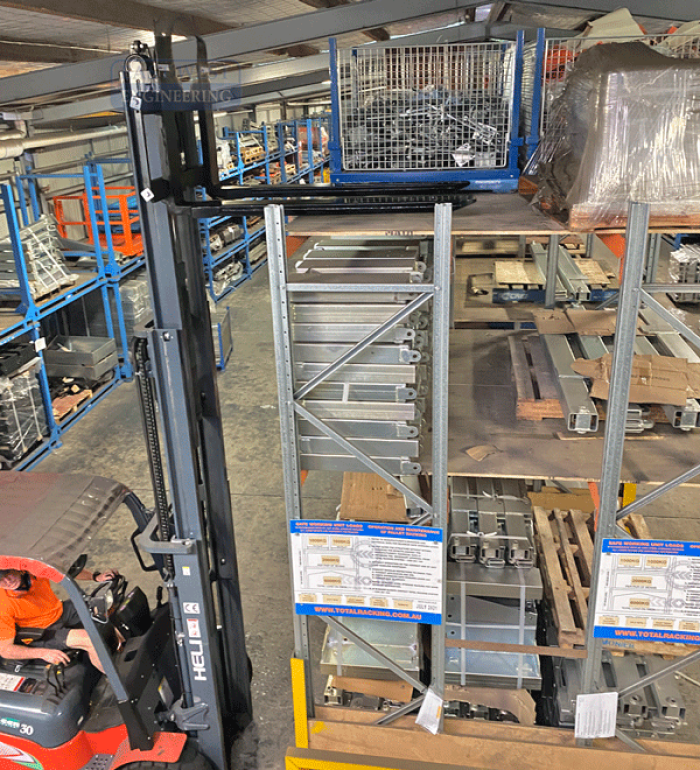

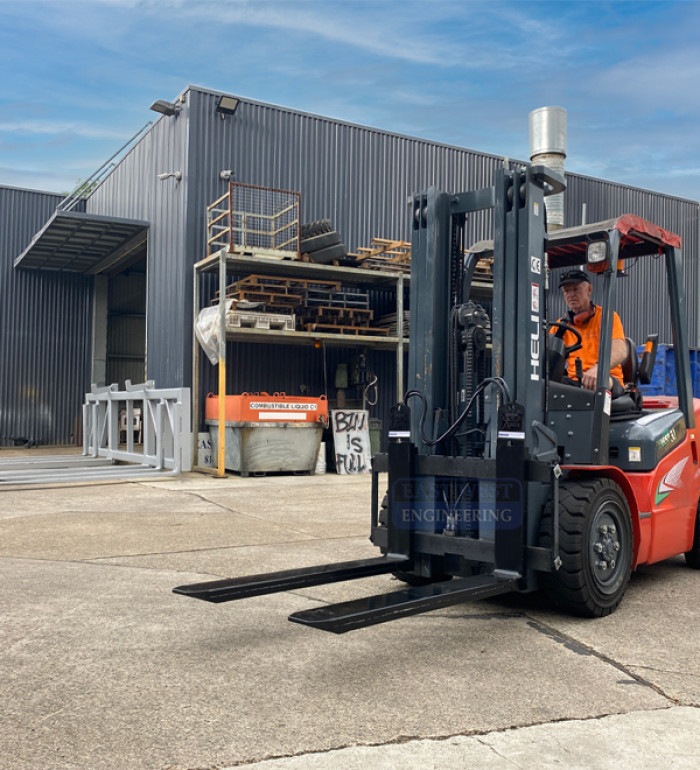

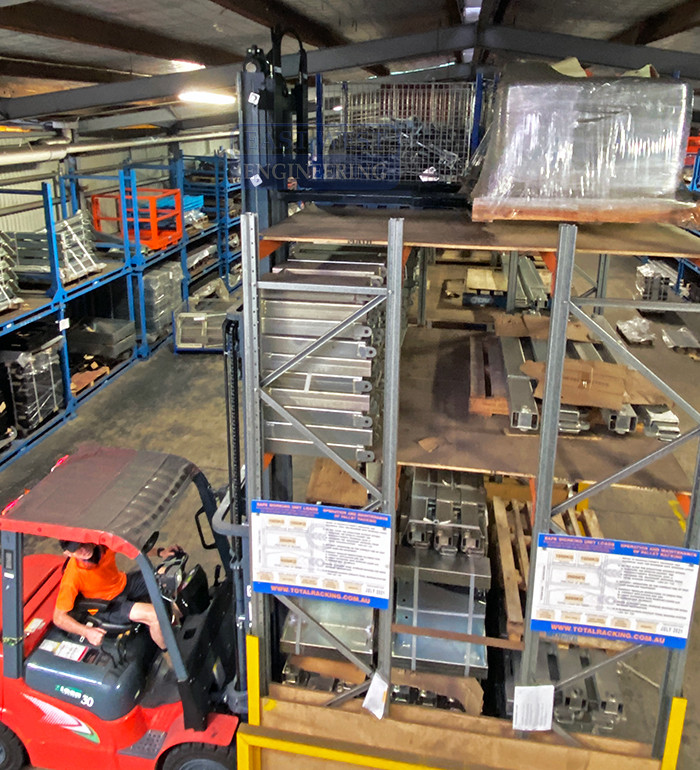

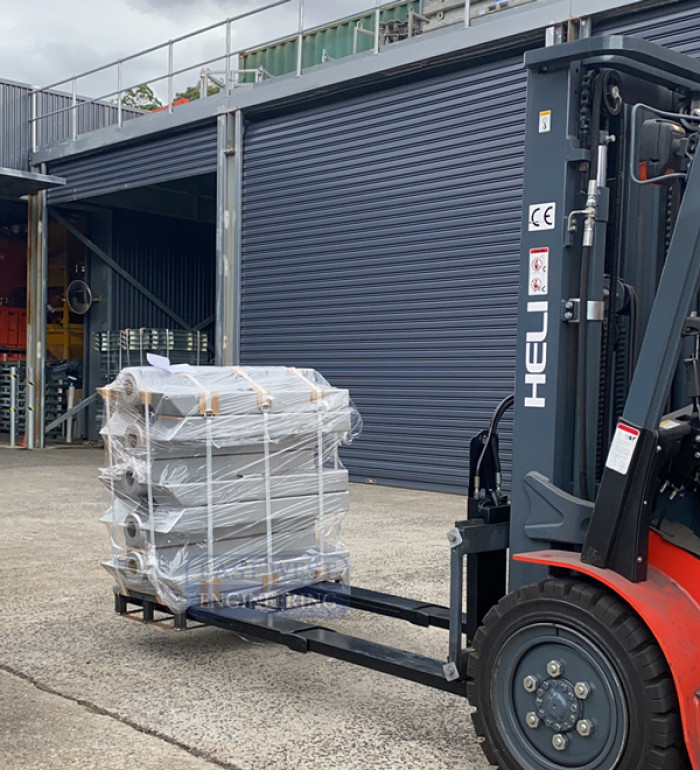

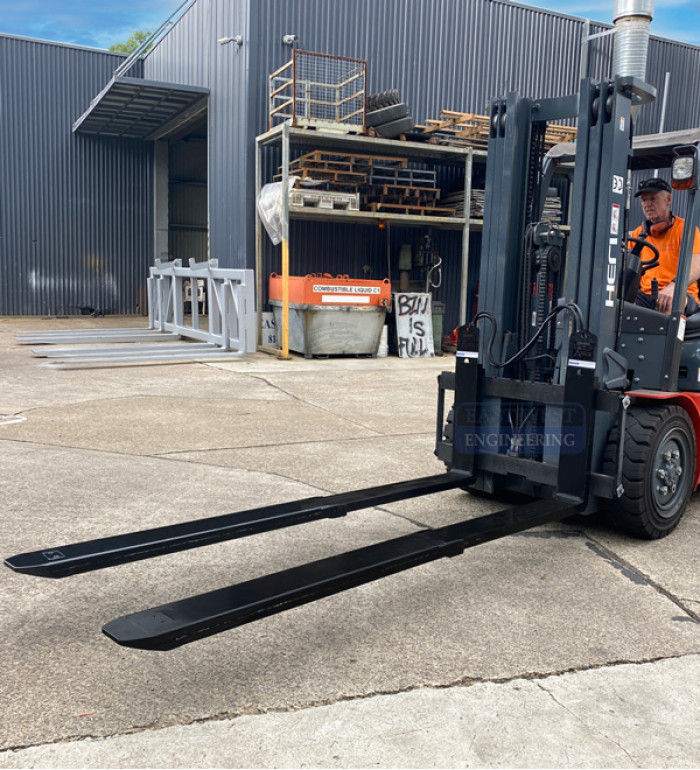

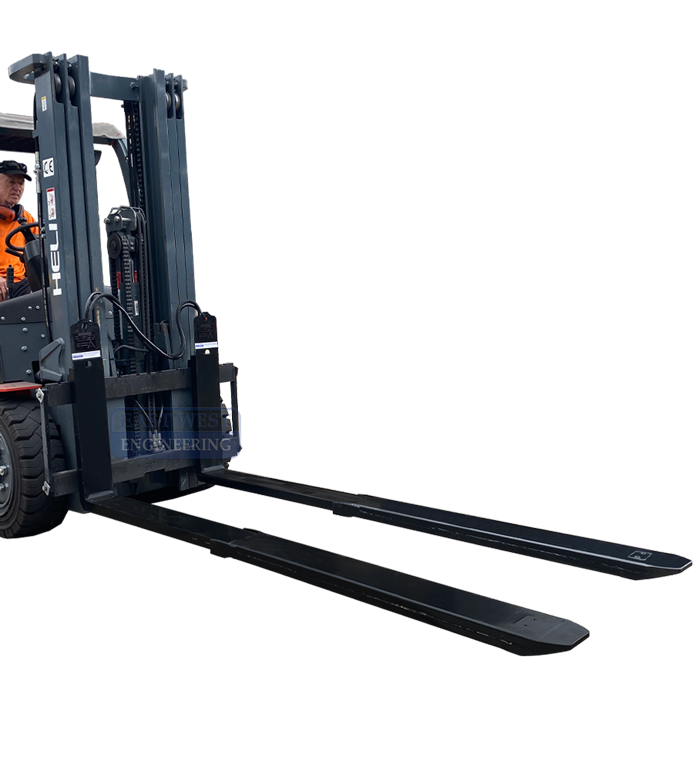

Hydraulic TeleFORKS hydraulically extend and retract for double deep stacking and one-sided loading/unloading. These forks help reduce loading times, increase warehouse storage capacity and vastly improve safety. One-sided loading/unloading eliminates the need to turn the vehicle or drive forklift to the opposite side making the operation safer. Double deep stacking can increase warehouse capacity by up to 30% compared to single deep warehouse operation..

FEATURES:
• Allows ‘double deep stacking’, increasing warehouse capacity

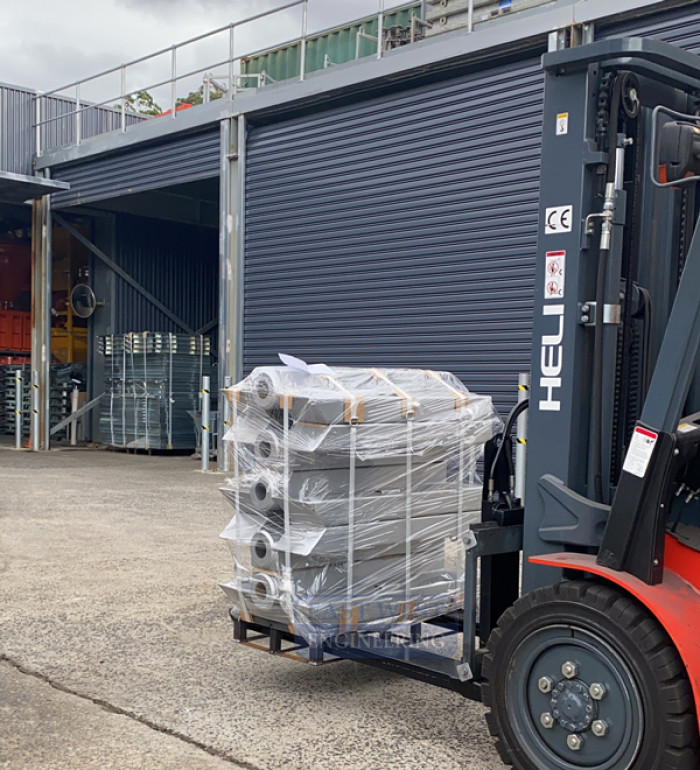

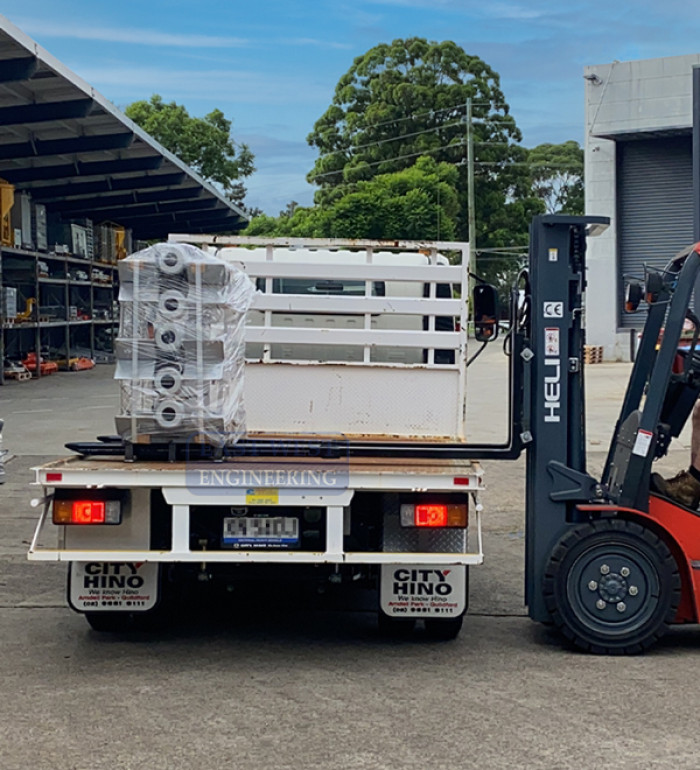

• Allows one-sided loading and unloading, saving time and increasing driver safety
• Phasing cylinders keep fork motion in sync
• Reinforced heel gives less deflection
• Easy connection of the forks onto the fork carrier
• Dual cylinder models provides greater push/pull power, ideal for performing under demanding circumstances
• Requires one additional hydraulic function
• Local technical support and spare parts
• Optional Pallet Stops prevent forks from protruding through to the rear pallet

Minimum operating pressure 15 MPa, maximum 25 MPa. The forklift manufacturer must determine the combined telescopic forks and forklift capacity.

Details

Model	Class	WLL @ 600mm LC (kg)	Cylinders per fork	Length (mm)	Extension (mm)	Section w x h (mm)	Lost Load (mm)	Weight per pair (kg)
TF2251200-850	II	2500	single	1200	850	132 x 57	45	162
TF2251350-1000	II	2500	single	1350	1000	132 x 57	45	177
TF4251200-850	II	2500	dual	1200	850	162 x 57	45	192
TF4251350-1000	II	2500	dual	1350	1000	162 x 57	45	212
TF4351200-850	III	3500	dual	1200	850	162 x 57	45	205
TF4351350-1000	III	3500	dual	1350	1000	162 x 57	45	225

* Custom sizes available upon request

Model	Description	Lead Time (days)	Price (excl GST)
TF2251200-850	Class 2, 2.5T, Single Cylinder, 1200mm Long, 850mm Stroke	3	Please Call
TF2251350-1000	Class 2, 2.5T, Single Cylinder, 1350mm Long, 1000mm Stroke	3	Please Call
TF4251200-850	Class 2, 2.5T, Dual Cylinder, 1200mm Long, 850mm Stroke	3	Please Call
TF4251350-1000	Class 2, 2.5T, Dual Cylinder, 1350mm Long, 1000mm Stroke	3	Please Call
TF4351200-850	Class 3, 3.5T, Dual Cylinder, 1200mm Long, 850mm Stroke	3	Please Call
TF4351350-1000	Class 3, 3.5T, Dual Cylinder, 1350mm Long, 1000mm Stroke	3	Please Call

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
