TJC-E Fork Positioner - Non Sideshifting

Add to Favourites

Quick Overview

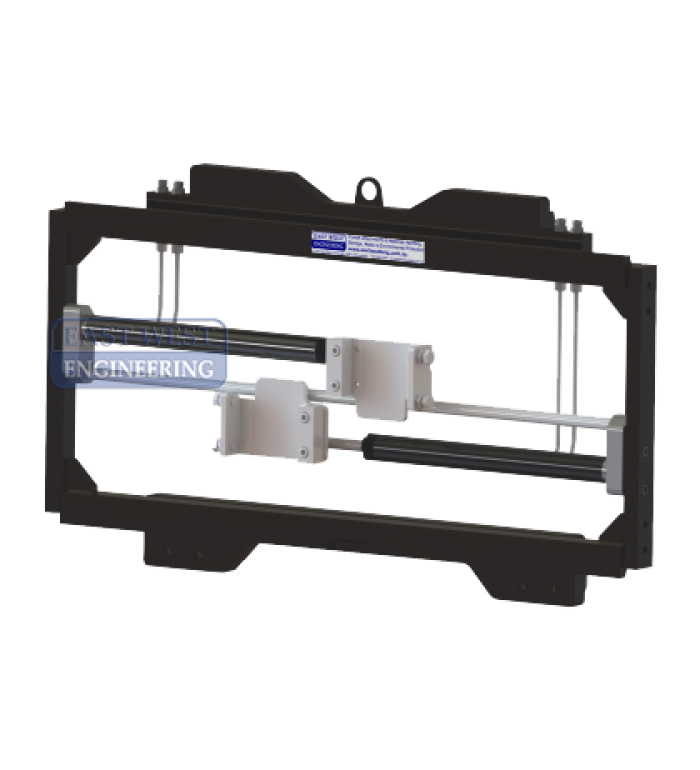

The TJC-E Fork Positioner with adjustable forks offers an efficient, practical solution to handling pallets of varying sizes which helps increase operator productivity while reducing the risk of damage to loads.

FEATURES:
• Used to hydraulically position forks for frequently changing load widths
• Suitable for stacking, loading and unloading palletised goods with different load sizes
• Load guard supplied standard for additional protection and capacity

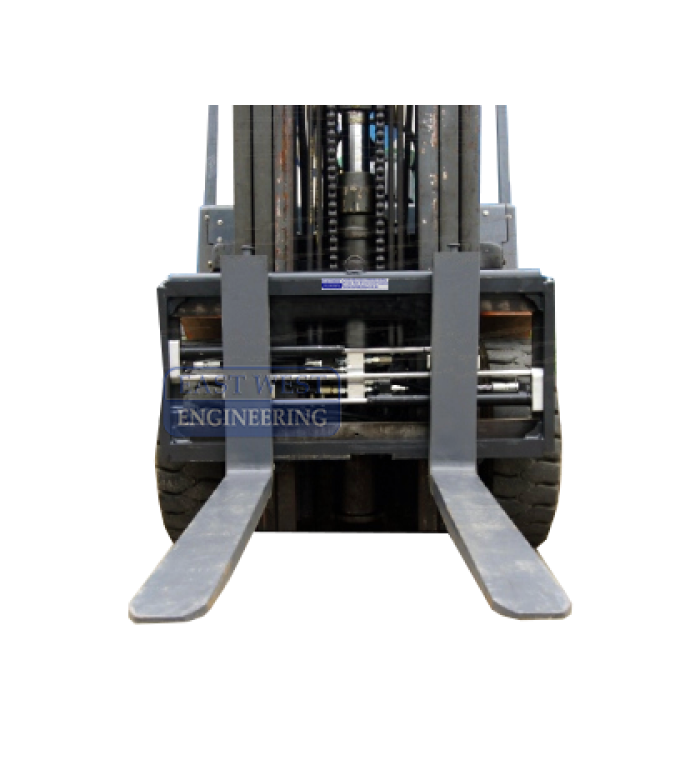

• Non-sideshifting model better suited for forklifts factory fitted with integral sideshift
• Commonly used in logistics, warehouse and manufacturing industries

Tines and hoses not included. Two additional hydraulic functions required. Opening range refers to the distance between the forks outer edge. The max. fork length is 1830mm. Please contact the Forklift manufacturer for the residual capacity of attachment.

Details

Model	Capacity @ LC (kg @ mm)	Mounting Class	Carriage Width (mm)	Opening Range (mm)	To Suit Fork Width (mm)	Lost Load (mm)	Unit Weight (mm)
TJC25E-B003-1020	2500 @ 600	II	1020	290-915	100-125	82	88
TJC25E-B003-1150	2500 @ 600	II	1150	295-1045	100-125	82	71
TJC35E-C003-1040	3500 @ 600	III	1040	290-935	100-125	87	82
TJC35E-C003-1150	3500 @ 600	III	1150	290-1040	100-125	87	85
TJC68K-D002-1380	6800 @ 600	IV	1380	462-1152	140-160	95	302
TJC68K-D002-2000	6800 @ 600	IV	2000	467-1767	140-160	95	433

NOTES:
• Two additional hydraulic functions required
• Tine & hoses not included
• Load guard not shown, but is supplied with this unit
• Two additional hydraulic functions required
• Opening range refers to the distance between the forks outer edges. The max. fork length is 1830mm
• Please contact the forklift manufacturer for the residual capacity of attachment
• Further technical details available upon request, please call 1800 061 998

Model	Description	Lead Time (days)	Price (excl GST)
POA	Price on application		Please Call

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
