SW-NH Sideways Drum Rotator

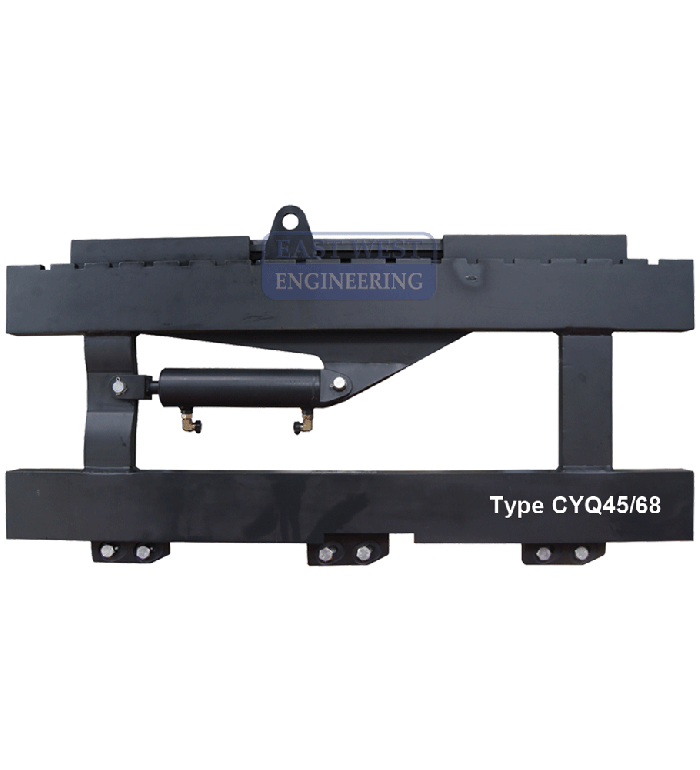

CYQ45/68 Sideshift (Heavy Duty)

  • CYQ45/68 Sideshift (Heavy Duty) CYQ45/68 Sideshift (Heavy Duty)

Quick Overview

The CYQ45/68 Heavy Duty Sideshift allows lateral movement of the load, enabling the forklift operator to place the load in the correct position without various movements of the forklift truck.

FEATURES:
• Enable forklift operator to move loads from side to side
• Adjustment of load provides greater flexibility for handling and stacking loads
• Equal sideshifting force
• Maximum residual capacity due to minimum weight and lost load
• Quick and simple installation – no welding required
• Excellent forklift operator visibility

Tines and hoses not included. Please contact the Forklift manufacturer for the residual capacity of attachment.

Details

 Model Capacity @ LC
(kg @ mm)
Mounting Class  Carriage Width
(mm)
Min Truck Carriage Width (mm) Lost Load
(mm)
Unit Weight
(mm)
 CYQ45D-D001-1100 4500 @ 600 III 1100 965 64 142
 CYQ45D-D001-1200 4500 @ 600 III 1200 1016 64 156
 CYQ68D-D001-1245 6800 @ 600 IV 1245 1170 84 225
 CYQ68D-D001-1270 6800 @ 600 IV 1270 1170 87 225

* Custom sizes and capacities available upon request
