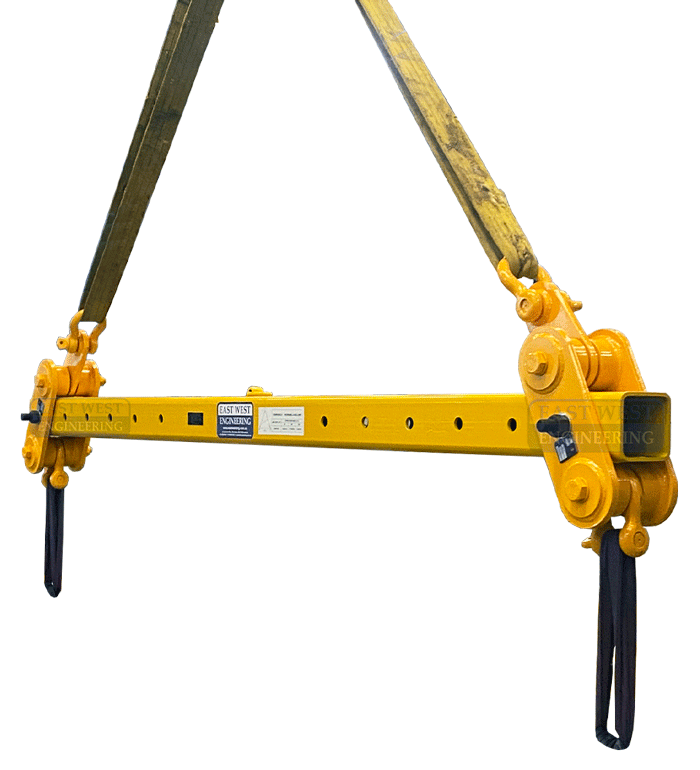

CSMP Multi Position Spreader Bar - 20, 48 & 100T

Add to Favourites

Quick Overview

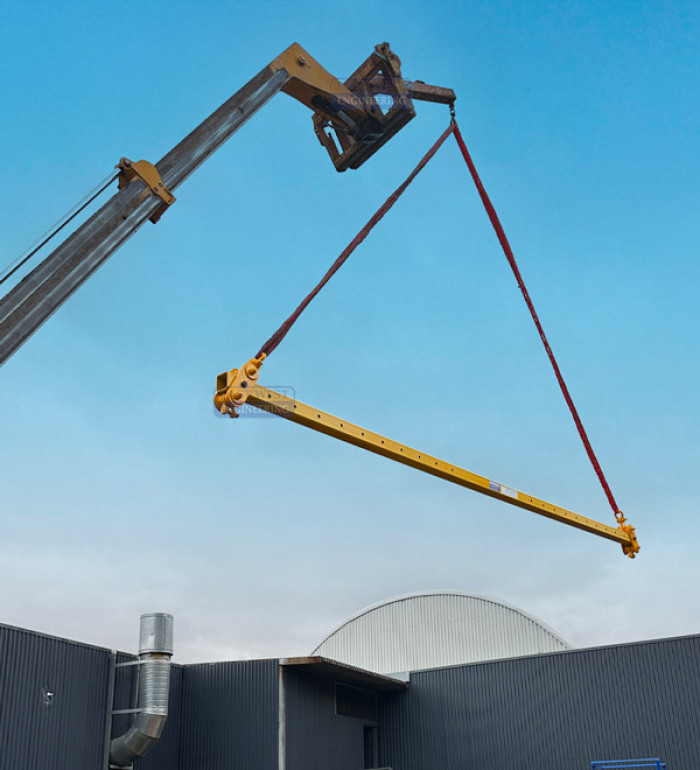

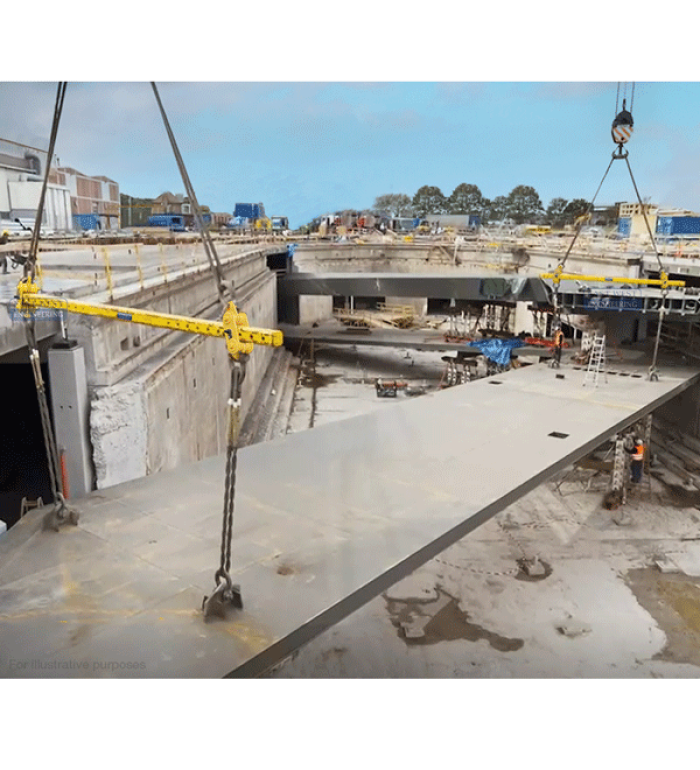

The CSMP Multi Position Spreader Bar is designed to provide support, stability and minimising lateral forces during lifting operations by crane, to ensure heavy loads are safely transported and placed onsite.

FEATURES:
• Multiple lifting positions to suit various load sizes
• 20, 48 & 100 tonne capacity models available
• Available in 3 standard bar lengths 3.3, 6 or 8m
• Other lengths and capacities available on request
• Shackles supplied
• Certified to the relevant Australian Standards
• Enamel paint finish

EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS

Details

Model	Working Load Limit (kg)	Length (mm)	No. of Lift Positions	Min. Lift Centre (mm)	Max. Lift Centre (mm)	Unit Weight (kg)
CSMP20X3.3	20,000	3300	6	1000	3000	261
CSMP20X6	20,000	6000	8	1500	5700	359
CSMP20X8	20,000	8000	11	1700	7700	434
CSMP48X3.3	48,000	3300	6	1000	3000	520
CSMP48X6	48,000	6000	8	1500	5700	658
CSMP48X8	48,000	8000	11	1700	7700	760
CSMP100X3.3	100,000	3300	6	1000	3000	1235
CSMP100X6	100,000	6000	8	1500	5700	1525
CSMP100X8	100,000	8000	11	1700	7700	1740

NOTE: Working load limit has been calculated on a 60° chain angle setup.

Model	Description	Price (excl GST)
CSMP20X3.3	WLL 20T x 3.3m Length	$7,980.00
CSMP20X6	WLL 20T x 6m Length	$8,790.00
CSMP20X8	WLL 20T x 8m Length	$9,380.00
CSMP48X3.3	WLL 48T x 3.3m Length	$11,330.00
CSMP48X6	WLL 48T x 6m Length	$12,430.00
CSMP48X8	WLL 48T x 8m Length	$13,200.00
CSMP100X3.3	WLL 100T x 3.3m Length	$21,600.00
CSMP100X6	WLL 100T x 6m Length	$24,200.00
CSMP100X8	WLL 100T x 8m Length	$26,690.00

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
