CQM Concrete Pipe Lifter

Previous

CFL2439 Spreader Beam (Light)

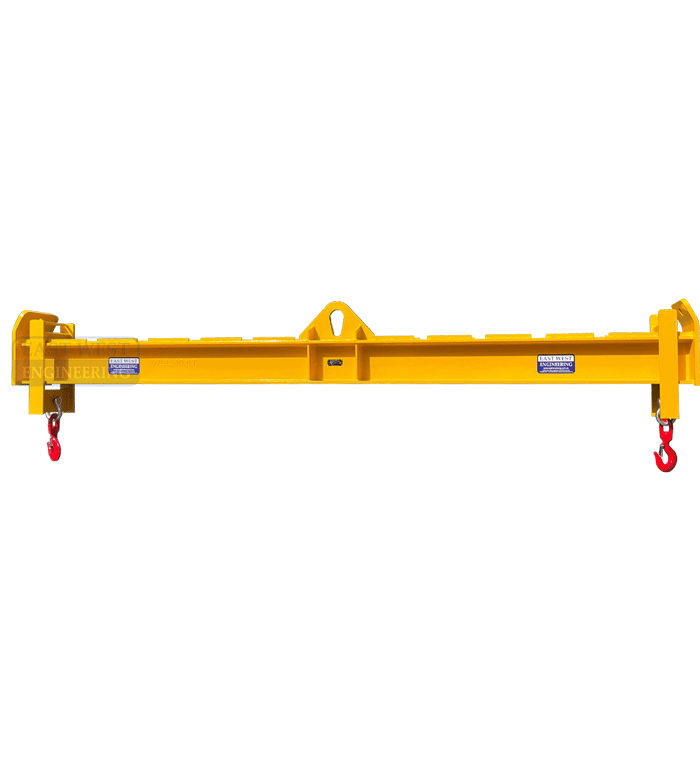

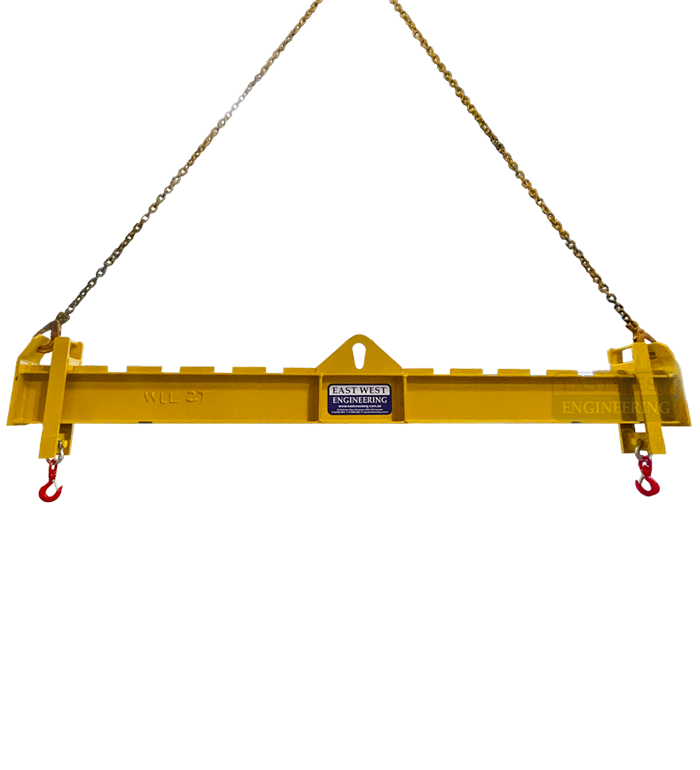

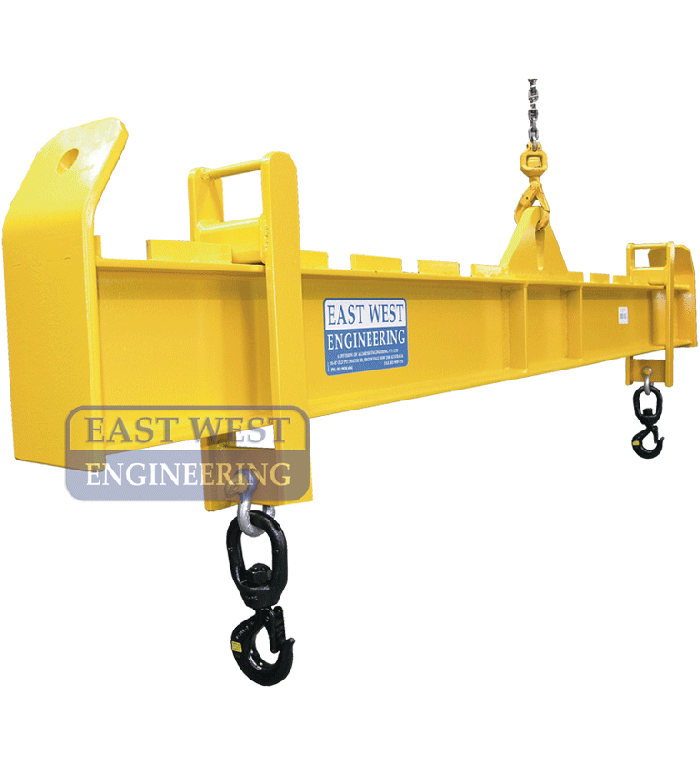

CSB Spreader Beam

  • CSB Spreader Beam CSB Spreader Beam

Quick Overview

The CSB Spreader Beams are designed in a range of capacities and lengths to suit any lifting application required by overhead crane.

FEATURES:
• Supplied standard with 5 lifting position
• Fitted with 2 safety swivel hooks
• Can be custom made to any width or capacity
• Enamel paint finish

Choose the Working Load Limit and beam length (Dimension ‘A’) to suit your application.

Details

 Model


Working
Load Limit
(kg)
Spread
Range
 (mm)
Unit
Weight
 (mm)
 CSB2X2 2000 800 - 2000 70
 CSB3X3 3000 800 - 3000 110
 CSB5X4 5000 800 - 4000 300
 CSB10X4 10000 800 - 4000 480
 CSB10X7 10000 800 - 7000 1350

* Custom lengths and capacities available on request.
