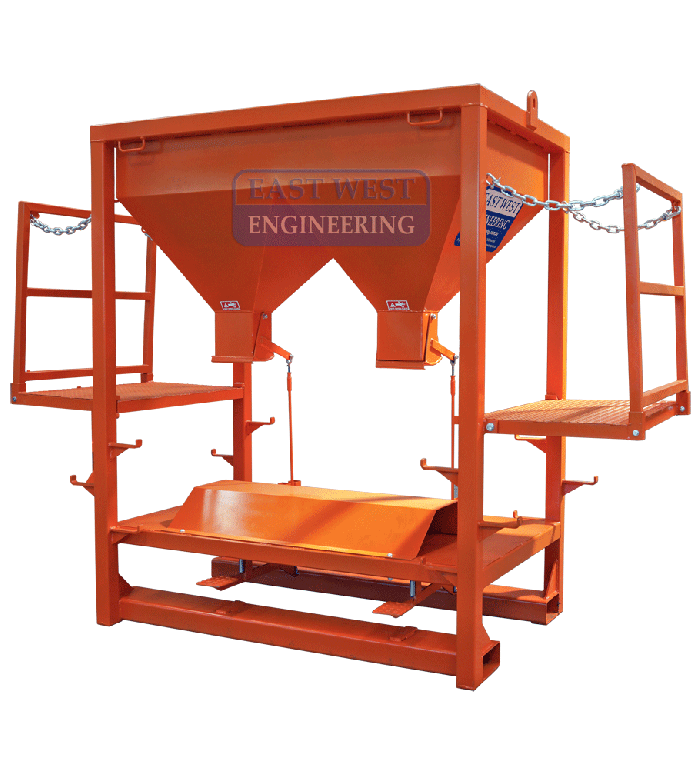

BSB02-RS Sandbag Filling Frame

Add to Favourites

Quick Overview

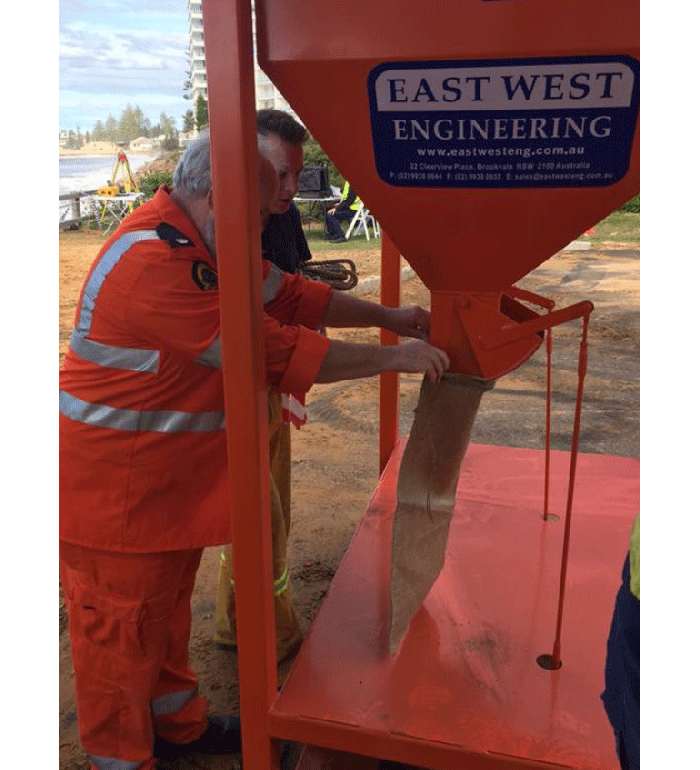

The gravity fed, foot operated BSB02-RS Sandbag Filling Frame is designed to increase efficiency while reducing the risk of injuries normally associated with bag filling. Ideal for builders, landscapers, councils, emergency services and civil work contractors. Highly efficient, this unit enables the filling of a 20kg bag approximately every 6-8 seconds.

FEATURES:

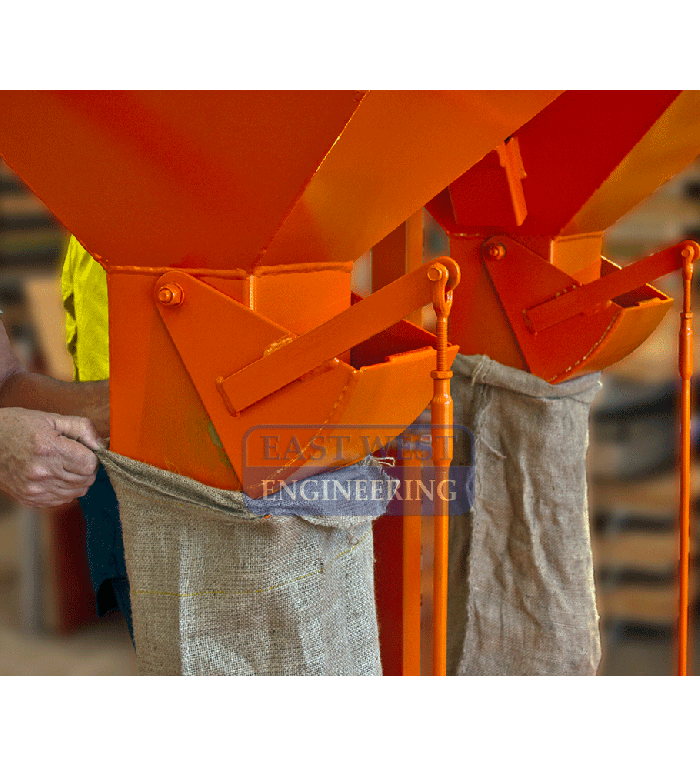

• Designed for fast, safe and efficient dispensing of sand, gravel, and other loose material
• Simple to operate and requires no power source to function
• Comes complete with foldable side platforms for safe access and loading
• Dual outlets allow single or two operators to work simultaneously increasing efficiency

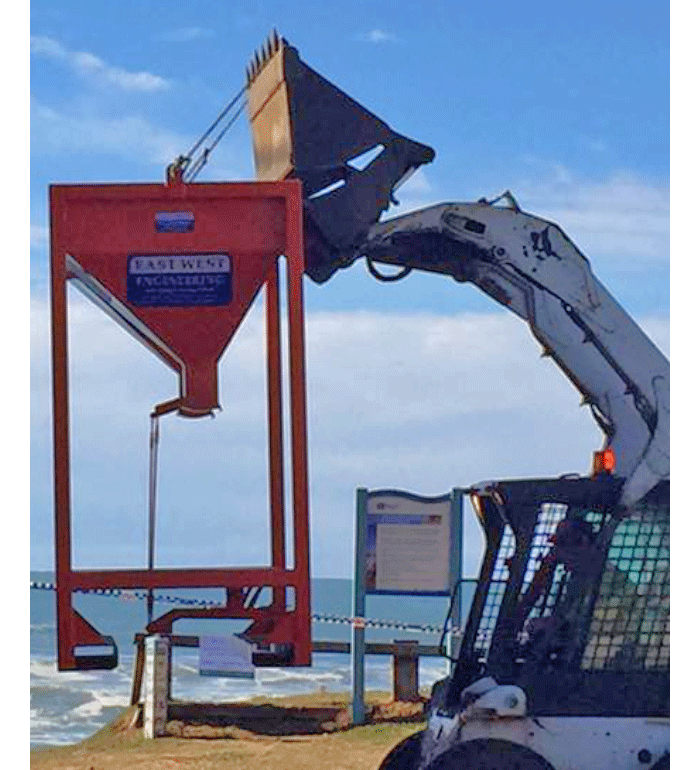

• Fitted with fork pockets and crane lugs for easy transport around the worksite

Details

Working Load Limit (WLL)	1800kg
Capacity	0.85 cu.m
Dimensions (side platforms folded down)	2120 x 1150 x 2290mm
Dimensions (side platforms assembled)	2950 x 1150 x 2290mm
Unit Weight	592kg
Fork Pocket Size	185 x 85mm
Fork Pocket Centres	800mm

Model	Description	Lead Time (days)	Price (excl GST)
BSB02-RS	Sand Bag Filling Frame	20	$9,180.00

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
