FBS Bale Spear

Add to Favourites

Quick Overview

The FBS Bale Spear is designed for the safe and easy handling of bales.

FEATURES:
• Ideal for picking up hay bales (round and square) with minimal effort
• Tapered from front to back for easier penetration and removal from the bales

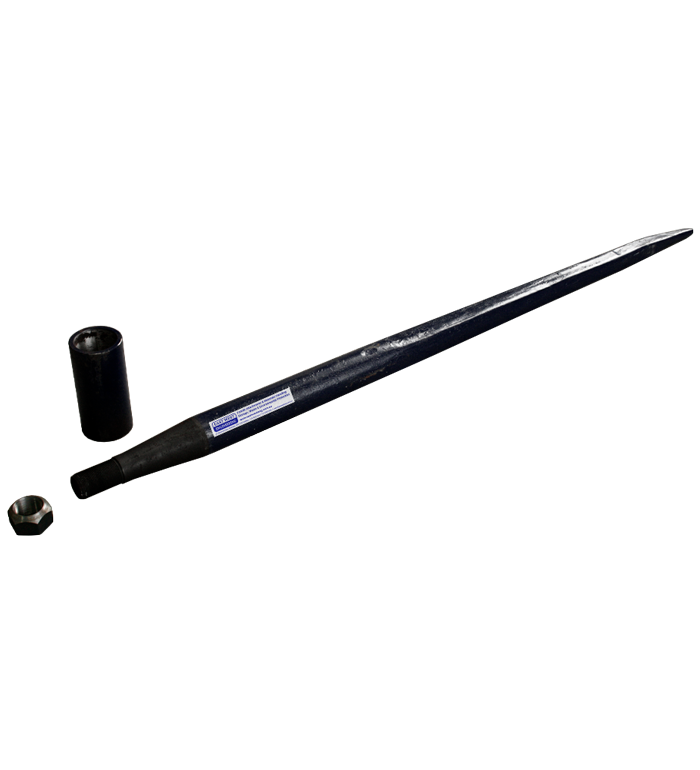

• Supplied with Conus sleeve and nut
• Available in model with fork shank (FLF) for quick connection to a carriage
• Made of high tensile strength steel for durability

Details

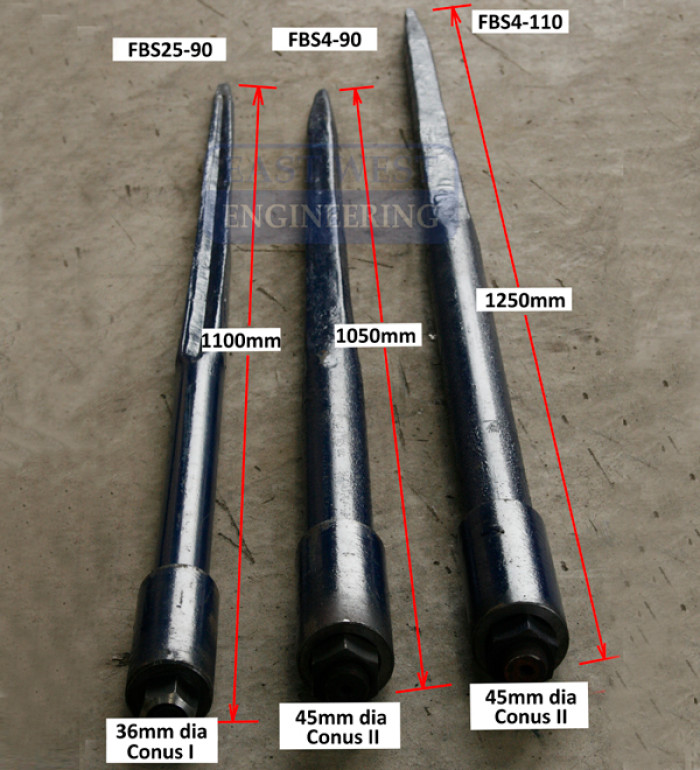

Model	Working Load Limit @ Load Centre (kg @ mm)	Overall Length (mm)	Clear Tine Length (mm)	Tine Diameter (mm)	Sleeve Size	Unit Weight (kg)
FBS25-90	250 @ 500	1100	970	36	Conus I	7
FBS4-90	400 @ 500	1050	900	45	Conus II	10
FBS4-110	400 @ 500	1250	1100	45	Conus II	13

* per spear, sold separately

Model	Description	Lead Time (days)	Price (excl GST)
FBS25-90	Bale Spear only - 970mm clear tine length, 250kg WLL	3	$80.00
FBS4-90	Bale Spear only - 900mm clear tine length, 400kg WLL	3	$100.00
FBS4-110	Bale Spear only - 1100mm clear tine length, 400kg WLL	3	$110.00

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
