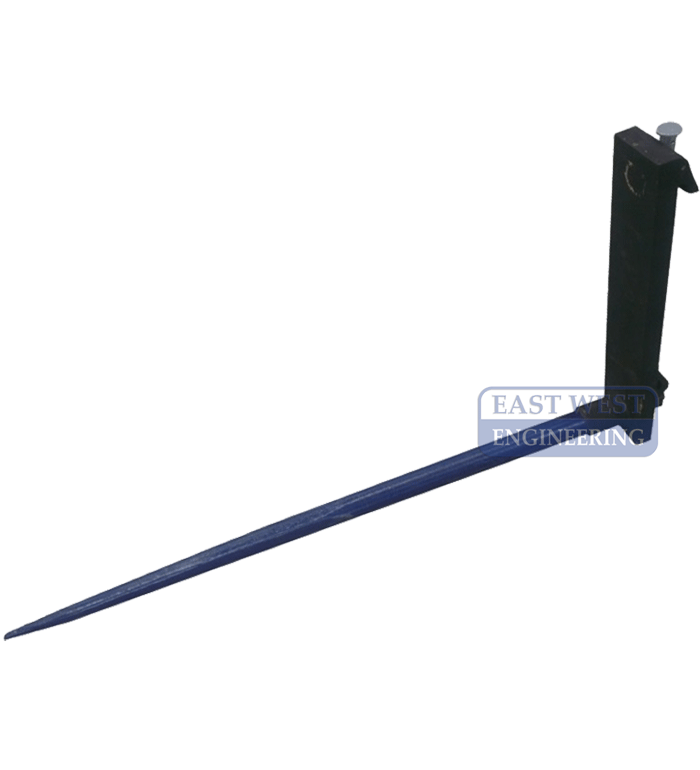

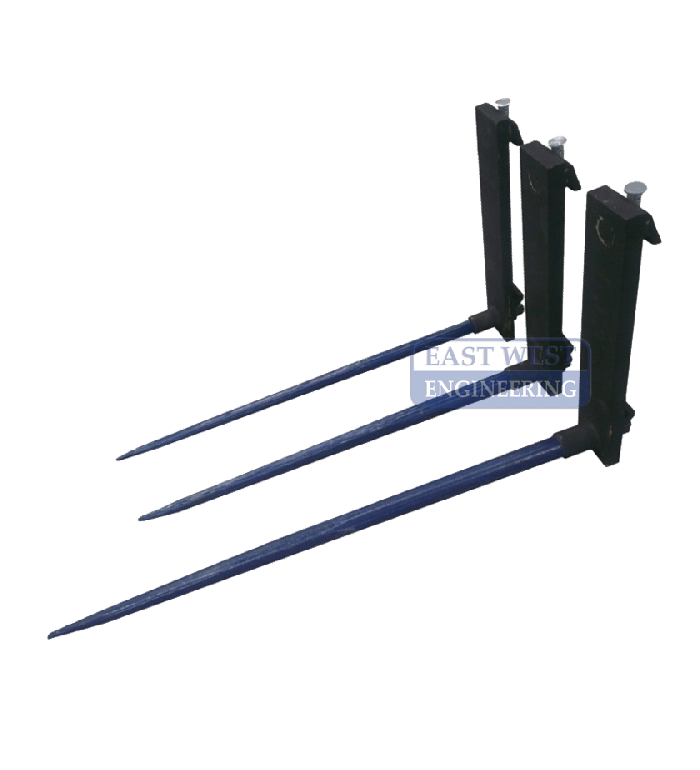

FLF Bale Spear & Shank

Add to Favourites

Quick Overview

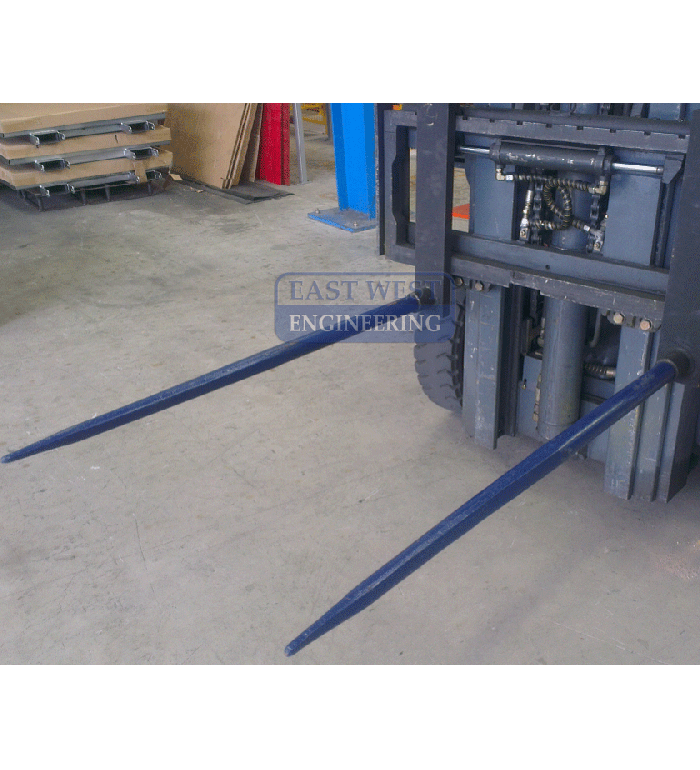

The FLF Bale Spear with fork shank is designed for the safe and easy handling of bales with a tractor, skid steer or forklift fitted with a class 2 carriage. Simply remove remove your existing fork tines (if any) and replace with the spear and shank combination.

FEATURES:
• Ideal for picking up hay bales (round and square) with minimal effort
• Bale spears can be locked into desired position on existing carriage
• Tapered from front to back for easier penetration and removal from the bales
• Available as bale spear only (FBS)
• Made of high tensile strength steel for durability

COMPATIBLE Q-FIT CARRIAGES:

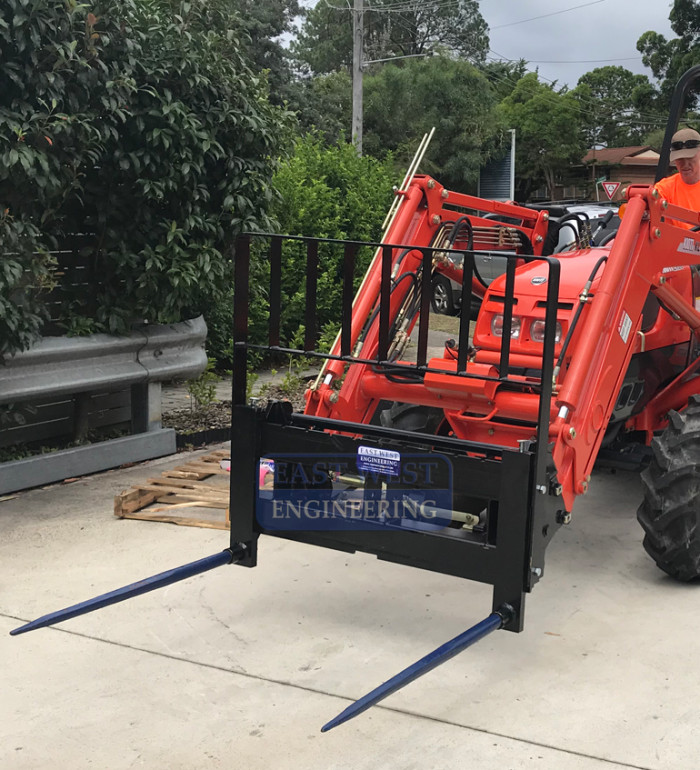

• QEH25 Euro Hitch Carriage
• QCH Challenge Hitch Carriage
• QBH Burder Hitch Carriage
• QSC Universal (Blank) Carriage

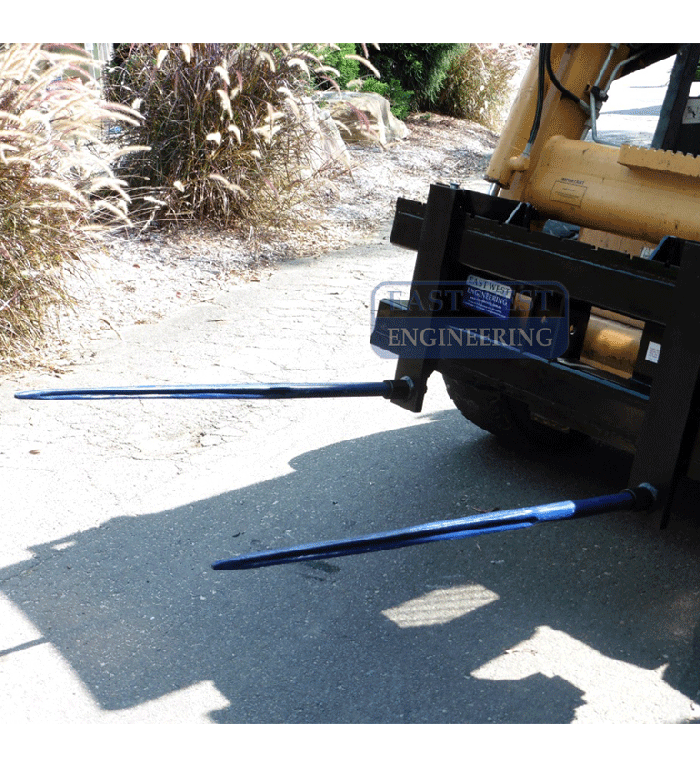

• QSS25 Skid Steer Carriage
• QHFC20 Hinged Fork Carriage

Sold individually (1 spear)

Details

Model	WLL @ Load Centre (kg @ mm)	Overall Length (mm)	Clear Tine Length (mm)	Tine Diameter (mm)	Sleeve Size	Unit Weight (kg)
FLF25-90	250 @ 500	1100	970	36	Conus I	20
FLF4-90	400 @ 500	1050	900	45	Conus II	27
FLF4-110	400 @ 500	1250	1100	45	Conus II	29

* Sold individually (1 spear)

Model	Description	Lead Time (days)	Price (excl GST)
FLF25-90	Bale Spear & Shank - 970mm clear tine length, 250kg WLL (1 spear)	3	$210.00
FLF4-90	Bale Spear & Shank - 900mm clear tine length, 400kg WLL (1 spear)	3	$250.00
FLF4-110	Bale Spear & Shank - 1100mm clear tine length, 400kg WLL (1 spear)	3	$260.00

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
