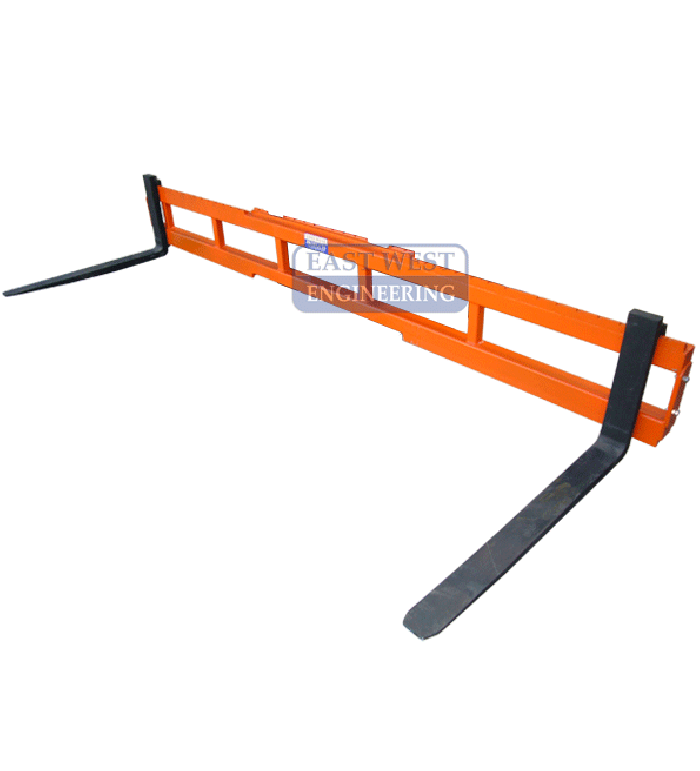

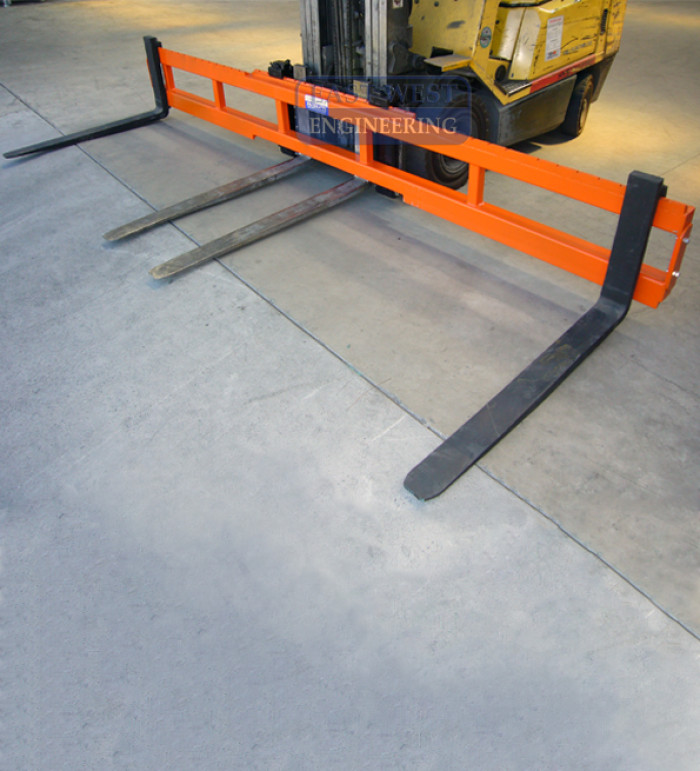

FWL Carriage Mounted Fork Spreader

Add to Favourites

Quick Overview

The FWL Carriage Mounted Fork Spreader is designed to safely lift extra wide or flexible loads without the risk of damage to products such as plasterboard, roof sheeting, timber or plastic tubing.

FEATURES:
• 3.64m wide spreader
• Evenly distributes the load over its full length
• Carriage connection to the forklift without requiring slippers
• Adjustable hook-on points allow fork arms to be positioned in optimum position
• Quick release bottom hooks ensure safe and easy connection to forklift truck
• Supplied with outer forks 1070mm long
• Outer forks are adjustable between 1300 and 3500mm centres allowing use with wide loads
• Enamel paint finish

Details

Model	Mounting Class	Working Load Limit (kg)	Load Centre (mm)	Overall Width (mm)	Fork Arms (mm)	Lost Load (mm)	Unit Weight (mm)
FWL236	Class 2	2500	600	3640	120 x 40 x 1070	160	280
FWL336	Class 3	3000	600	3640	125 x 50 x 1070	205	430

Model	Description	Lead Time (days)	Price (excl GST)
FWL336	Class 3 Carriage Mounted Fork Spreader	45	$3,780.00
FWL236	Class 2 Carriage Mounted Fork Spreader	5	$2,660.00

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
