CKROF (SV) Concrete Kibble Laydown - Slide Valve

Add to Favourites

Quick Overview

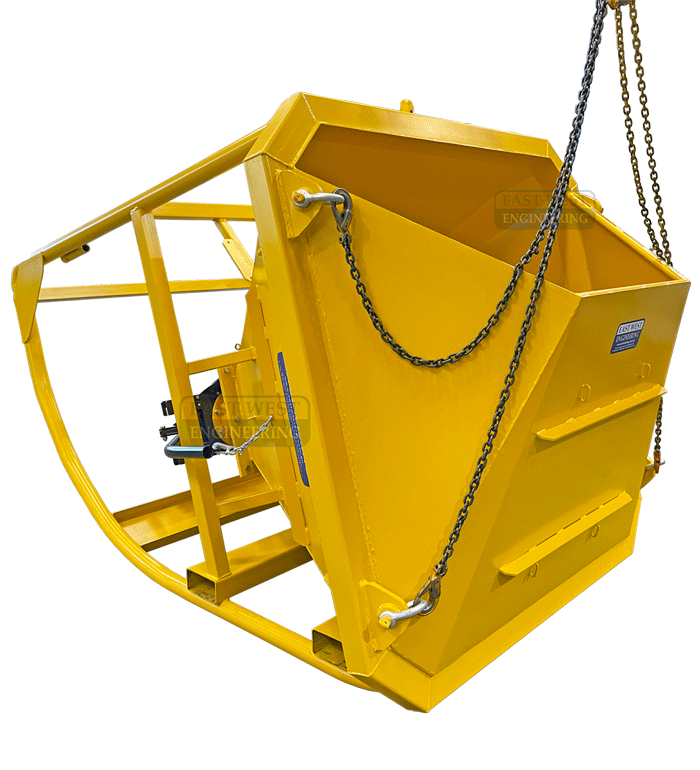

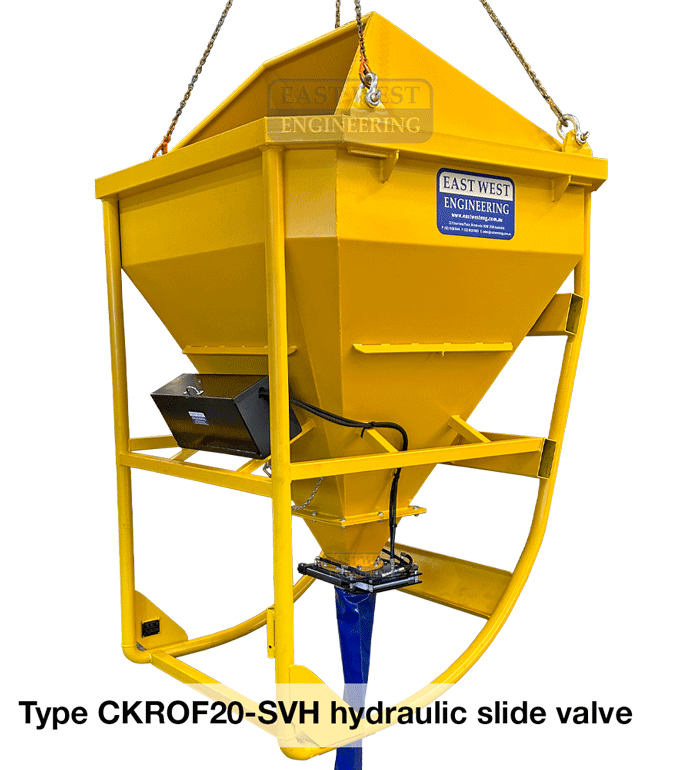

The heavy duty, roll-over style CKROF (SV) Concrete Kibble with Slide Valve is designed for the easy transfer of concrete on site by overhead crane. When filling, the kibble lays horizontally so it can sit lower than the concrete truck's chute, then reverts to a vertical position when lifted. Fitted with a lever actuated slide valve and lay-flat hose to regulate concrete flow safely from the side, this unit is ideal for filling wall cavities, columns & narrow formwork.

FEATURES:
• Suits large applications with models available for up to 3cu.m capacity
• Roll-over (laydown) style allows filling from a concrete truck's dispensing chute

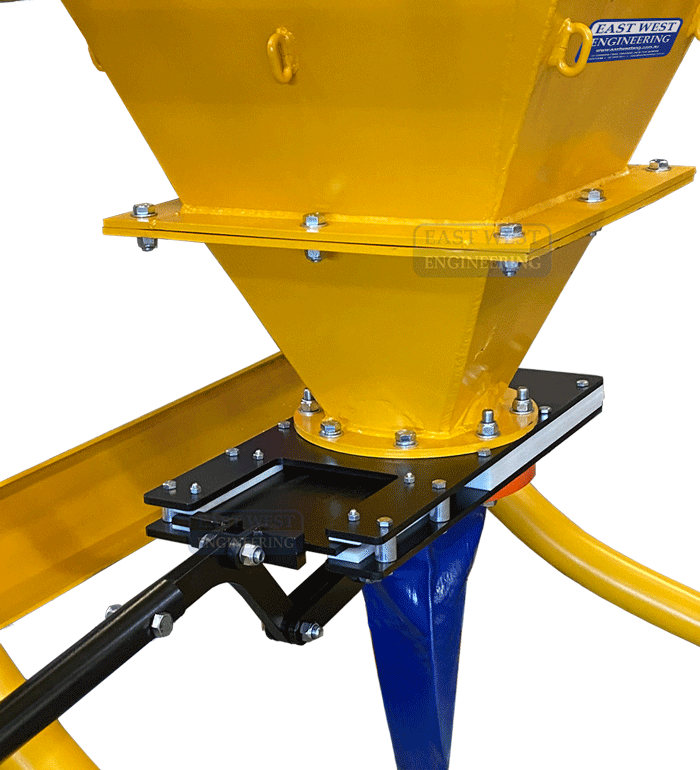

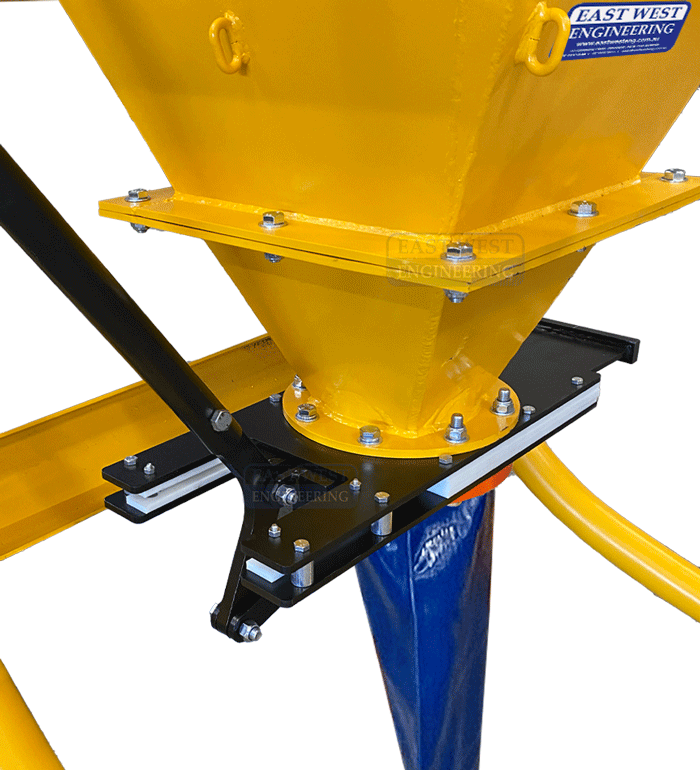

• Lever actuated slide valve allows operator to regulate concrete flow
• 2m long, 200mm diameter ‘Lay Flat’ hose allows controlled flow when filling wall cavities, columns or narrow formwork
• 4 point lift crane lugs fitted to increase safety and reduce weight
• Fork pockets fitted for transport around the work site

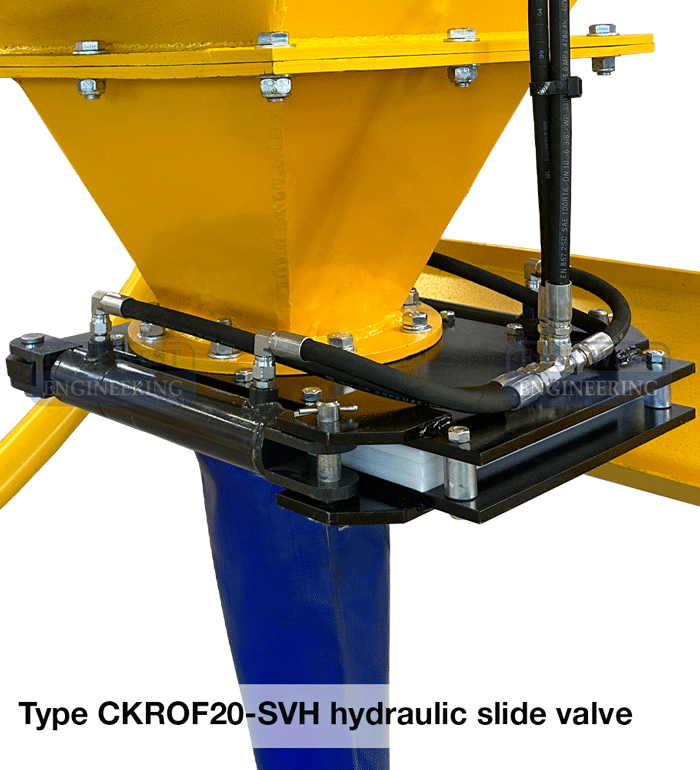

• Hydraulic operated models (CKROF20-SVH & CKROF30-SVH) allow remote control of kibble
• Also available in clamshell gate operated models (CKROF20 & CKROF30)
• Enamel paint finish

EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS

Details

Model

Operation

Volume
Capacity
(cu.m)

Working
Load Limit
(kg)

Filling
Height
(mm)

Laydown
Dimensions
L x D x H (mm)

Pocket
Size
(mm)

Pocket
Centres
(mm)

Unit
Weight
(kg)

Lay Flat Hose
Dimensions
(mm)

CKROF20-SV

Manual

2.0

5000

1380

2965 x 2010 x 2000

185 x 85

750

880

200 Ø x 2000

CKROF20-SVH

Hydraulic

2.0

5000

1380

2965 x 2010 x 2000

185 x 85

750

970

200 Ø x 2000

CKROF30-SV

Manual

3.0

7500

1460

3280 x 2010 x 2090

185 x 85

750

980

200 Ø x 2000

CKROF30-SVH

Hydraulic

3.0

7500

1460

3280 x 2010 x 2090

185 x 85

750

1070

200 Ø x 2000

Model	Description	Price (excl GST)
CKROF20-SV	Concrete Kibble Laydown - 2.0cu.m, Slide Valve	$7,980.00
CKROF20-SVH	Concrete Kibble Laydown - 2.0cu.m, Hydraulic Slide Valve	$14,910.00
CKROF30-SV	Concrete Kibble Laydown - 3.0cu.m, Slide Valve	$10,860.00
CKROF30-SVH	Concrete Kibble Laydown - 3.0cu.m, Hydraulic Slide Valve	$17,790.00

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
