Price range: $4,750.00 through $11,440.00

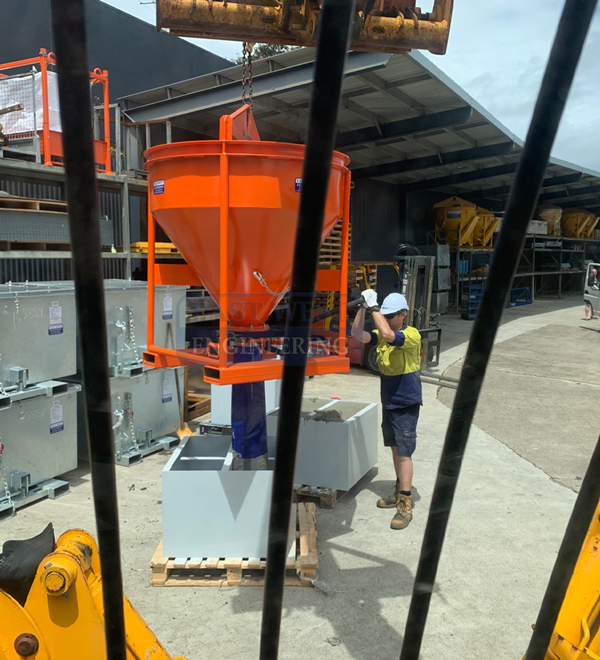

The CKSV10 Concrete Kibble is designed for the easy transfer of concrete or similar materials on-site by overhead crane.
FEATURES:
EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|

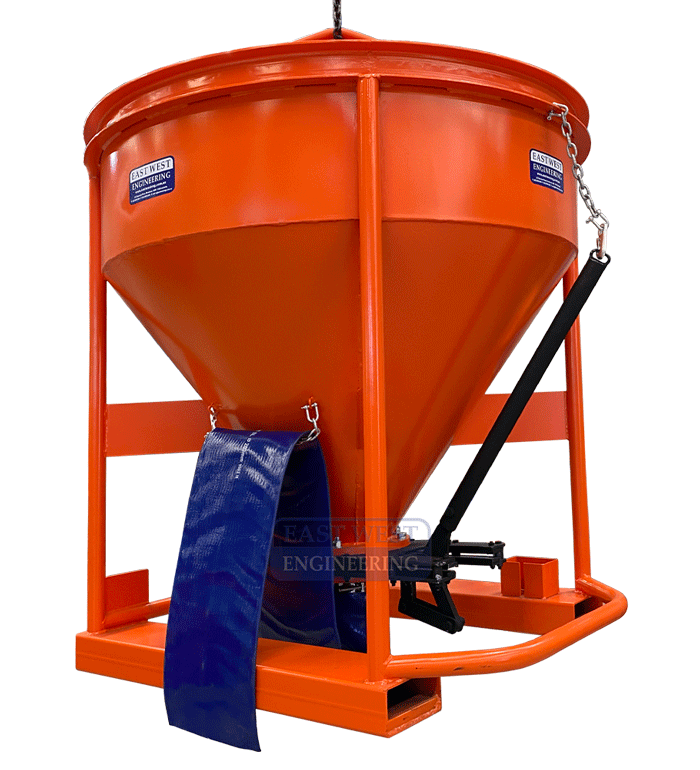

| Model: CKSV10 | Description: Slide valve - 1.0cu.m | Price: $4,750.00 | ||

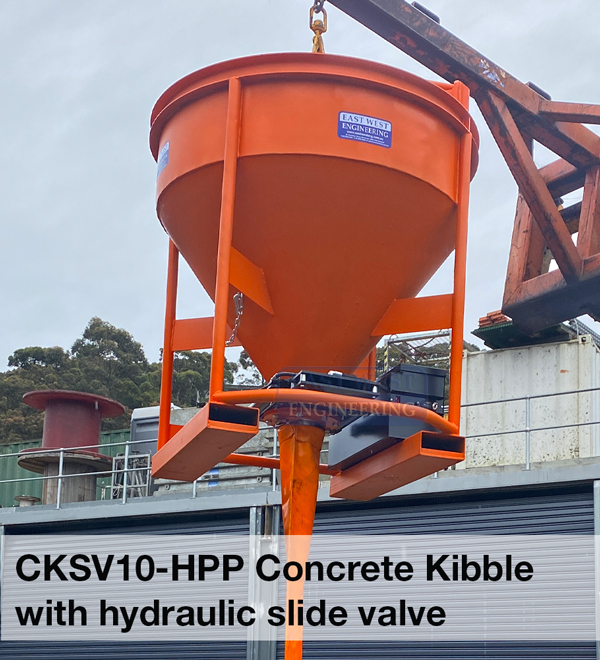

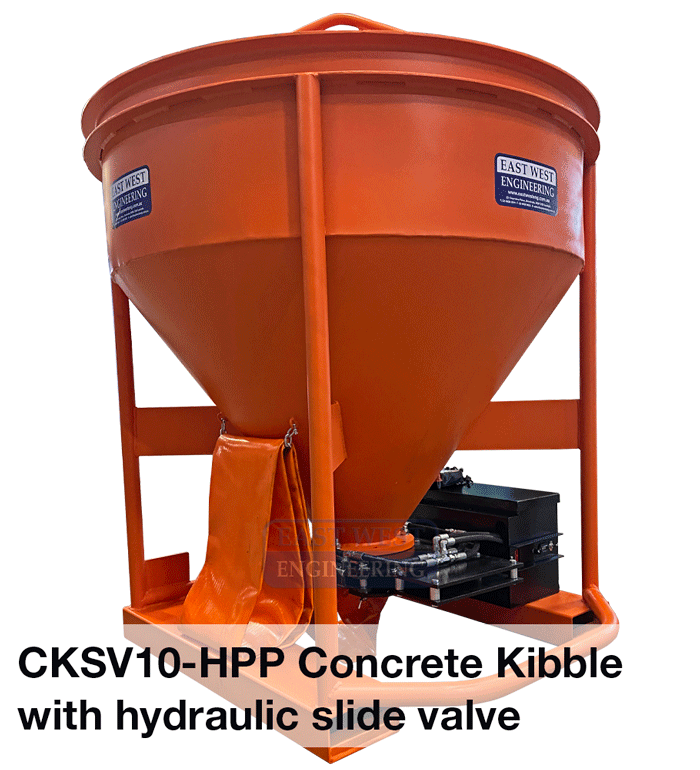

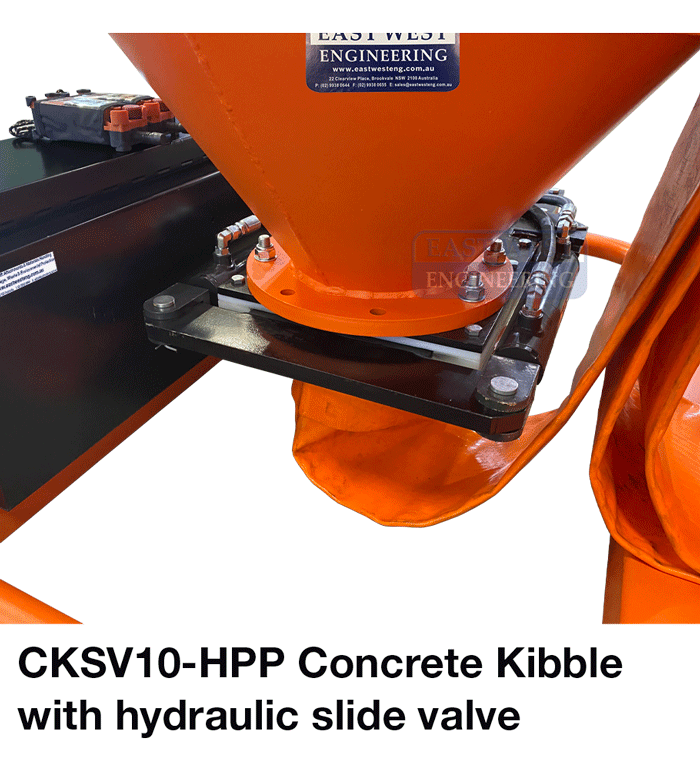

| Model: CKSV10-HPP | Description: Hydraulic Slide valve - 1.0 cu.m | Price: $11,440.00 | ||
| Model | Working Load Limit (WLL) kg | Capacity (cu.m) | Dimensions (mm) | Fork Pocket Size (mm) | Fork Pocket Centres (mm) | Unit Weight (kg) | To Suit | Operation | Finish |
|---|---|---|---|---|---|---|---|---|---|
| Model: CKSV10 | Working Load Limit (WLL) kg: 3000 | Capacity (cu.m): 1.0 | Dimensions (mm): 1505 x 1445 x 1870 | Fork Pocket Size (mm): 185 x 60 | Fork Pocket Centres (mm): 870 | Unit Weight (kg): 295 | To Suit: Concrete | Operation: Manual, lever actuated slide valve | Finish: Enamel Paint |
| Model: CKSV10-HPP | Working Load Limit (WLL) kg: 3000 | Capacity (cu.m): 1.0 | Dimensions (mm): | Fork Pocket Size (mm): 185 x 60 | Fork Pocket Centres (mm): 870 | Unit Weight (kg): 395 | To Suit: Concrete | Operation: Hydraulic, remotely controlled slide valve | Finish: Enamel Paint |
