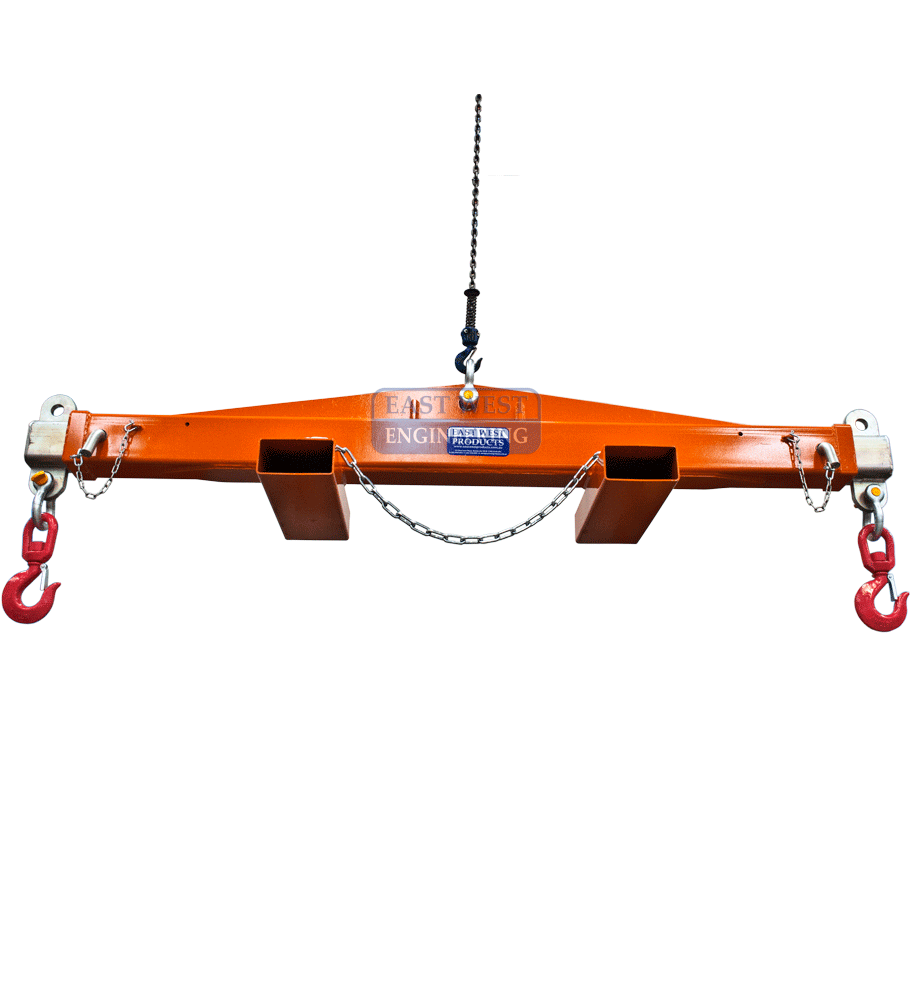

CFH2233 Spreader Beam (40T)

  • CFH2233 40T Spreader Beam CFH2233 40T Spreader Beam
  • CFH2233 40T Spreader Beam CFH2233 40T Spreader Beam

Quick Overview

The CFH2233 Spreader Beam is designed to lift long heavy loads weighing up to 40T by overhead crane or 15T by forklift. When used by crane, loads are end lifted using a 2 leg chain sling (as a Spreader Beam). If lifting by forklift, the 600mm long slipper pockets allow fast and safe connection to the truck.

FEATURES:
• Multi-tasking spreader beam
• Load connection points are adjustable to 3 positions by moving the extendable arm
• Safety pins used to securely lock extendable arm in position
• Supplied standard with 2 safety swivel hooks
• Centre lifting point provided for transporting spreader beam
• Certified to the relevant Australian Standards
• Centre lifting point fitted for transport only
• Zinc finish on extendable arms, enamel paint finish on main body

EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS.

Strictly for use as a spreader beam. Centre lifting point for is provided for transport purpose only, not for lifting under load.

Details

 Rated Capacity (RC) Fork Pocket Unit
 Weight
(kg)
 when used as Fully Retracted
(LC@2210mm)
Middle Position
(LC@2770mm)
Fully Extended
(LC@3330mm)
Size
(mm)
Centre
(mm)
 Forklift Attachment 15,000kg 12,000kg 10,000kg  230x110  1660 402
 Spreader Beam 40,000kg 40,000kg 40,000kg

NOTE: Spreader Beam working load limit has been calculated on a 60° chain angle setup.

Model Description Price
(excl GST)
CFH2233 FORKLIFT CRANE SPREADER BEAM 40T
$4,340.00
* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
