CEGP Multi Point Spreader Beam

Add to Favourites

Quick Overview

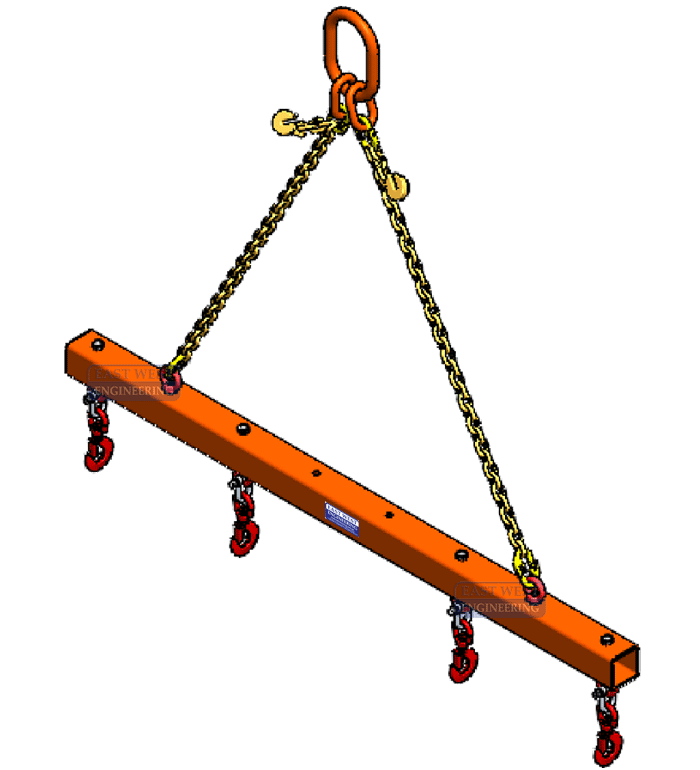

The CEGP Multi Point Spreader Beam is designed in a range of lengths to suit any lifting application required by overhead crane.

FEATURES:
• End lift via the end hooks and 2 leg chain sling
• Supplied standard with 8 lifting positions
• Can be custom made to any width or capacity
• Fitted with 4 safety swivel hooks
• Supplied with lifting chains
• Certified to the relevant Australian Standards
• Enamel paint finish

EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS

Details

Model	Working Load Limit (kg)	Max. Load Lift Centre (mm)	Length (mm)	Unit Weight (kg)
CEGP12010	1000	1100	1200	25
CEGP18010	1000	1700	1800	35
CEGP24010	1000	2300	2400	50

Model	Description	Price (excl GST)
CEGP12010	WLL 1000KG - MAX 1100MM CENTRES	$1,080.00
CEGP18010	WLL 1000KG - MAX 1700MM CENTRES	$1,180.00
CEGP24010	WLL 1000KG - MAX 2300MM CENTRES	$1,280.00

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times

ASK A QUESTION ABOUT THIS PRODUCT

For further product specifications, pricing or freight costs, please complete this form and a member of our sales team will get back to you shortly.

Product Enquiry

Name *

Company *
Suburb/Postcode *

Phone *
Email *

Preferred method of contact *
Message *
Quotation Required?

If freight required, please ensure the Suburb & Postcode is for the delivery address

* Required Fields
