ZJJ Paper Roll Clamps

Add to Favourites

Quick Overview

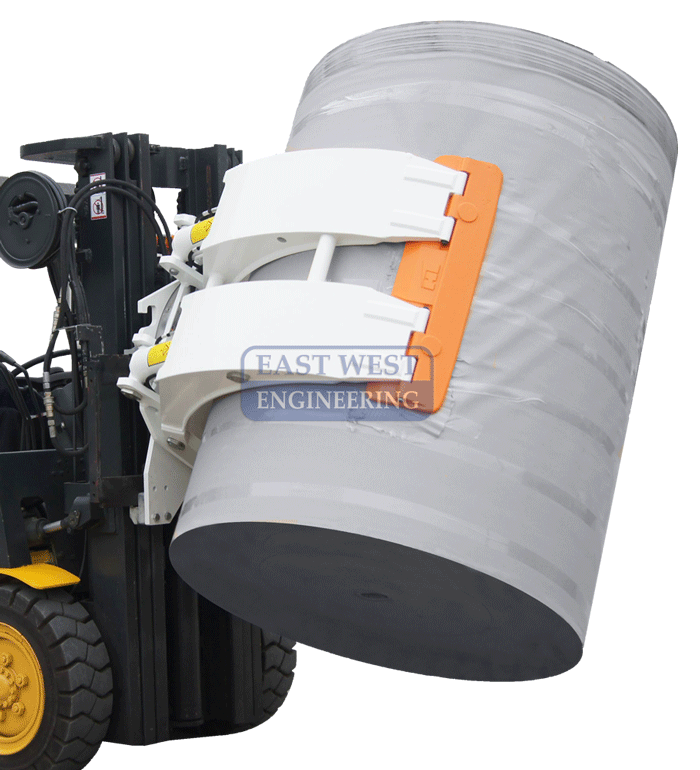

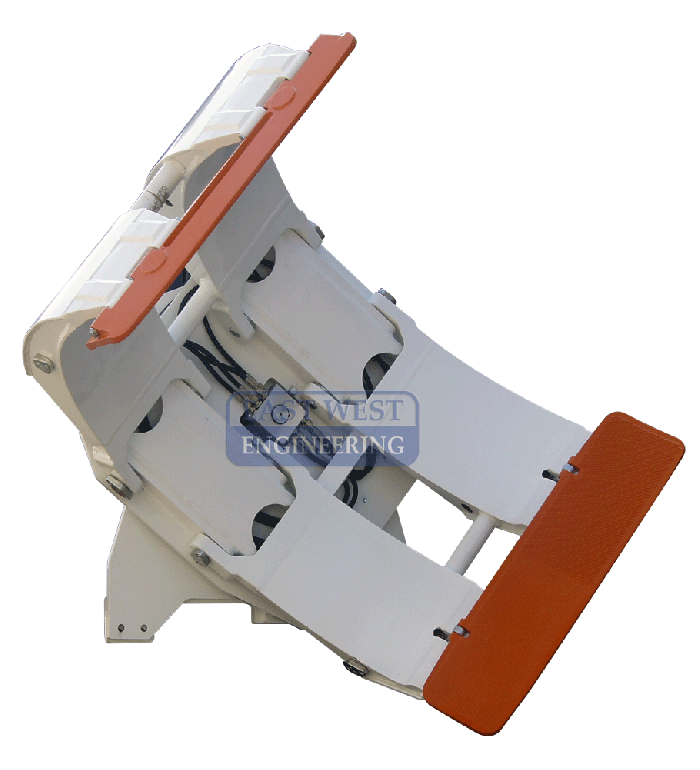

The ZJJ Paper Roll Clamps is designed for easy handling of cylindrical goods. All clamps have a 360° rotation function allowing vertical or horizontal placement.

FEATURES:
• Used to for paper roll handling or stacking
• 360° rotating function enables vertical or horizontal placement
• Available in a range of openings
• Type A Clamps have a fixed short arm suited to handling smaller rolls
• Type B Clamps have an adjustable short arm suited to handling a wide range of roll diameters
• Commonly used in the paper, publishing and printing industries

Details

Model	Capacity @ LC (kg)	Mounting Class @	Roll Range	Type	Long Arm Length (mm)	Short Arm Length (mm)	Long Arm Thickness (mm)	Lost Load (mm)	Unit Weight (kg)
ZJJ25D-B031	2300@650	II	600-1300	A	835	550	48	250	662
ZJJ25D-B034	2200@675	II	330-1350	B	835	550	48	250	680
ZJJ25D-C036	2000@750	III	250-1500	B	1000	715	48	250	740
ZJJ30D-C011	2700@675	III	590-1350	A	960	616	53	210	830
ZJJ30D-C018	2300@800	III	250-1600	B	1007	843	53	210	895
ZJJ35D-C011	3500@675	III	360-1350	A	975	680	61	221	1130
ZJJ35D-D016	3300@750	IV	250-1500	B	1000	772	61	221	1215
ZJJ50D-D009	3500@1050	IV	900-2100	A	1440	960	61	221	1600
ZJJ50D-D022	4000@900	IV	350-1900	B	1370	873	61	237	1500

* Custom sizes available upon request

Model	Description	Lead Time (days)	Price (excl GST)
POA	Price on application		Please Call

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
