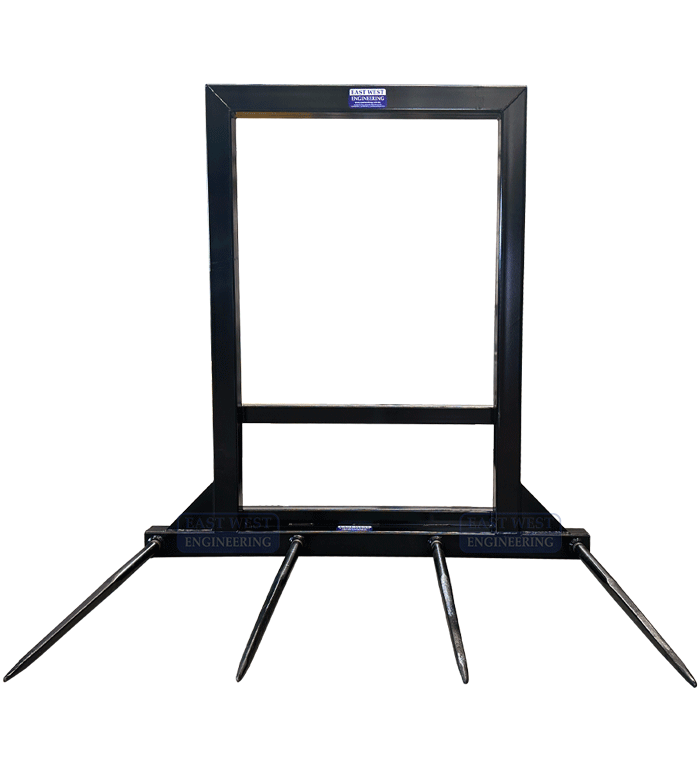

QVB4 QH Bale Spear Attachment

Add to Favourites

Quick Overview

The QVB4 QH Bale Spear Attachment is designed for the safe and easy handling of bales and is suitable for use with most machinery.

FEATURES:
• Ideal for picking up multiple hay bales (round & square) with minimal effort
• Available without hitch (blank) or in models to suit Forklift, Euro, 3PL, Skid steer, Burder or Challenge fitment
• 4 removable bale spears supplied
• Spears taper for easier penetration and removal from the bales
• Made of high tensile steel for strength and durability

Details

	Working Load Limit (WLL)	1600kg
	Load Centre	500mm
	Sleeve Size	Conus II
	Spear Dimensions	Ø45 x 1100mm clear length
	Overall Dimensions	1800(l) x 1300(w) x 1800(h) mm
	Unit Weight	149kg

Model	Description	Price (excl GST)
QVB4	QH Bale Spear Attachment - BLANK	$1,530.00
QVB4-SS	BALE SPEAR ATTACHMENT + SKID STEER HITCH	$1,910.00
QVB4-EU	BALE SPEAR ATTACHMENT + EURO HITCH	$1,890.00
QVB4-CH	BALE SPEAR ATTACHMENT + CHALLENGE HITCH	$1,920.00
QVB4-BHS	BALE SPEAR ATTACHMENT + BURDER HITCH SMALL	$1,920.00
QVB4-BHL	BALE SPEAR ATTACHMENT + BURDER HITCH LARGE	$2,050.00
QVB4-3PL	BALE SPEAR ATTACHMENT + 3 POINT LINKAGE	$2,130.00
QVB4-FCQR2	BALE SPEAR ATTACHMENT + CLASS 2 QUICK RELEASE	$2,020.00
QVB4-FCQR3	BALE SPEAR ATTACHMENT + CLASS 3 QUICK RELEASE	$2,130.00

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
