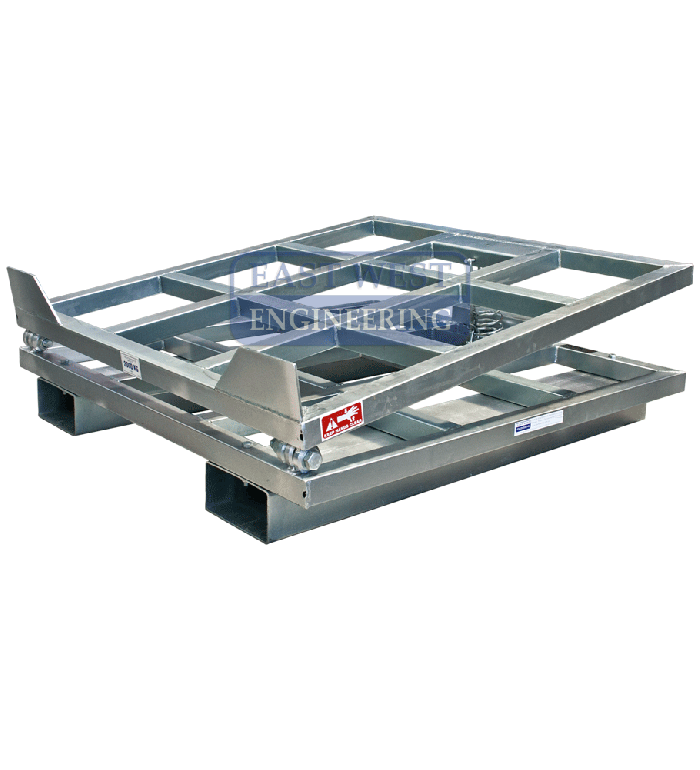

BTS10 IBC Bin Tilter - fork pockets

Add to Favourites

Quick Overview

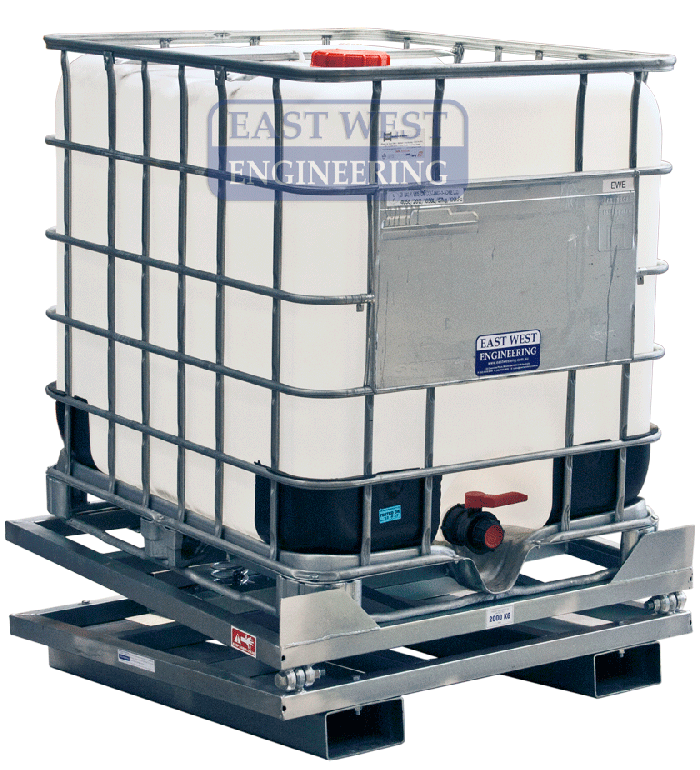

The BTS10 IBC Bin Tilter is designed to effortlessly allow full discharge of liquid from intermediate bulk containers (IBC). As the volume of liquid contained in the IBC reduces the spring mechanism will raise the rear of the container to an incline of up to 10 degrees. Fitted with fork pockets, this unit can be transported around the workplace by forklift.

FEATURES:
• 10° tilt allows decanting directly from IBC

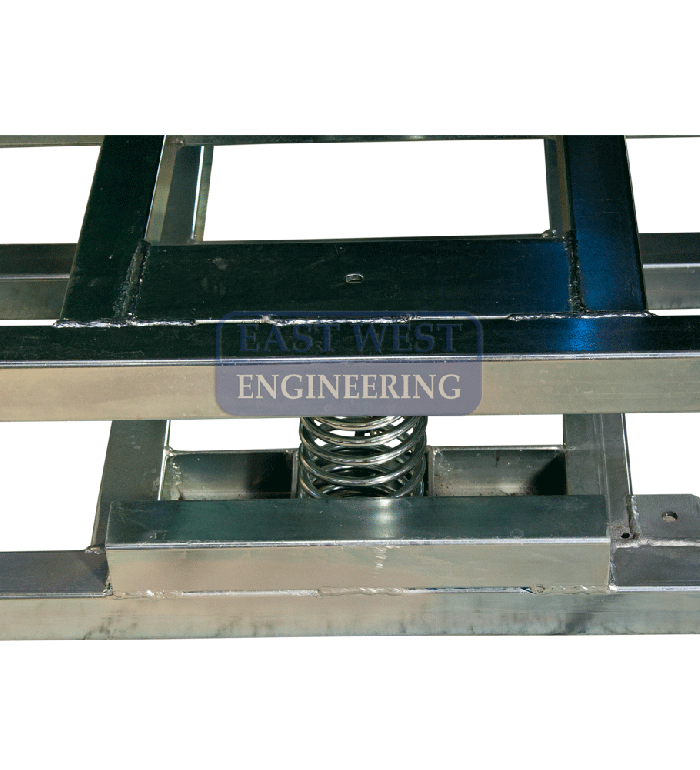

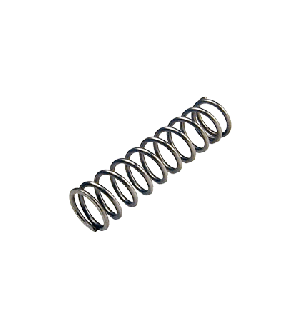

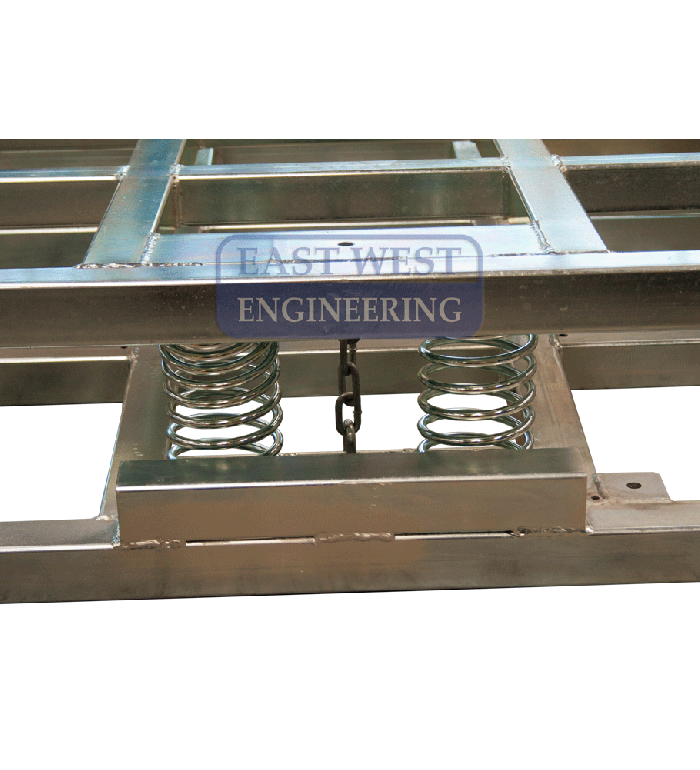

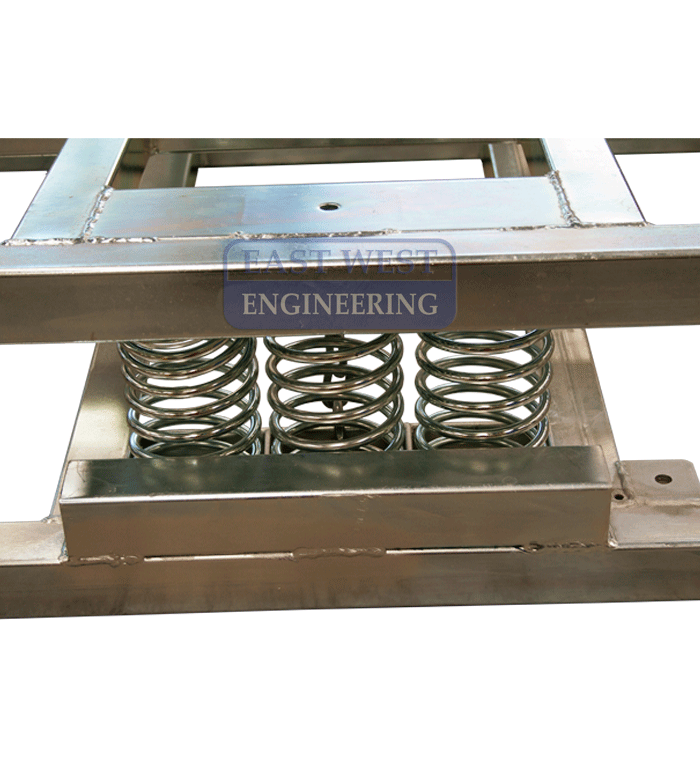

• Supplied with 3 springs (1-3 used depending on load weight)
• Easy access for a hose coupling to be attached to drain valve
• Removable fork pockets fitted for easy positioning around the workplace by forklift
• Available in model with wheels (BTS10-W) allowing the IBC to be manually pushed around the workplace
• Zinc finish

Details

	Working Load Limit (WLL)	2000kg
	Dimensions	1200 x 1130mm
	Unit Weight	110kg
	Fork Pocket Size	185 x 85mm
	Fork Pocket Centres	730mm

Model	Description	Lead Time (days)	Price (excl GST)
BTS10	IBC Bin Tilter - fork pockets	3	$1,110.00

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
