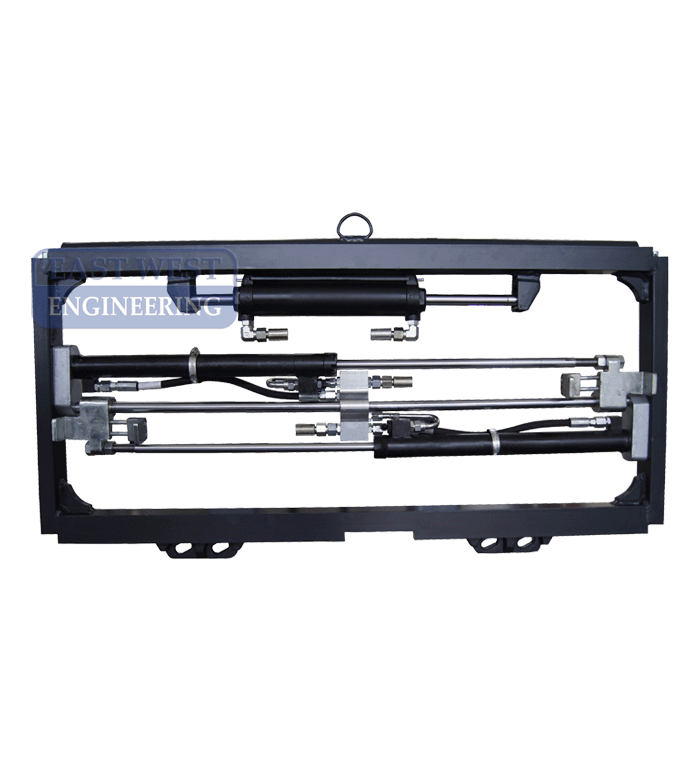

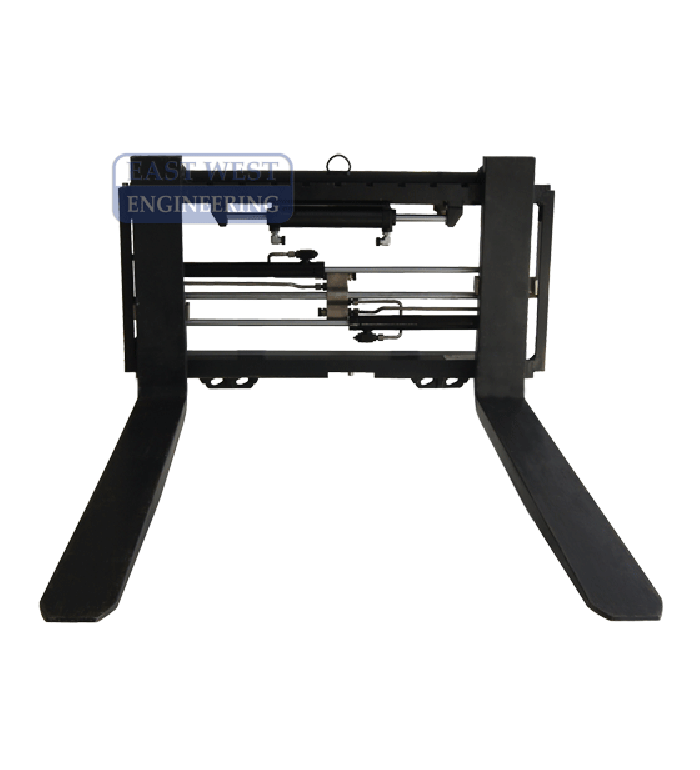

TJC25/35 Sideshifting Fork Positioner - 2.5-3.5T

Add to Favourites

Quick Overview

The TJC Fork Positioner - Sideshifting offers an efficient, practical solution to handling pallets of varying sizes which helps increase operator productivity while reducing the risk of damage to loads.

FEATURES:
• Used to hydraulically position forks for frequently changing load widths
• Enables forklifts to move loads from side to side to ease stacking, loading, unloading and placement of goods with different load sizes

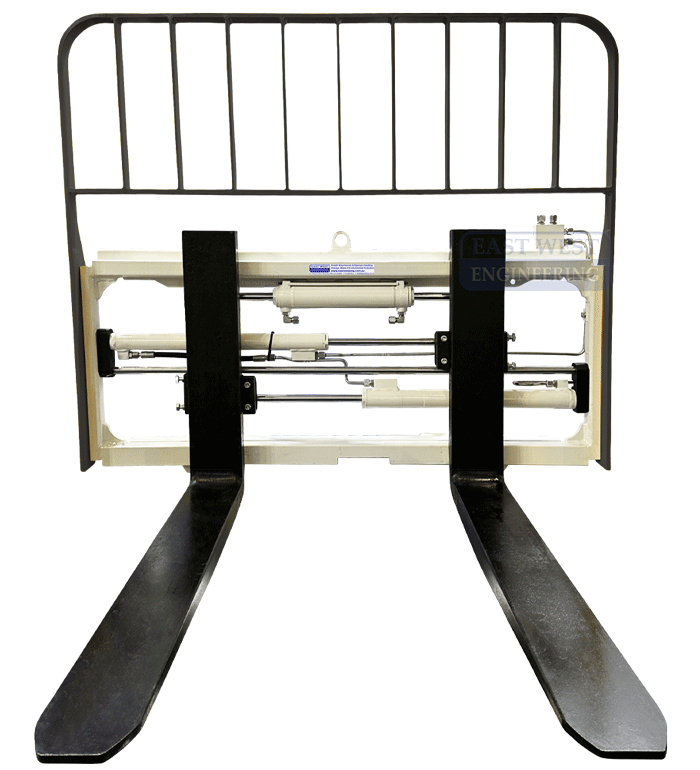

• Load guard supplied standard for additional protection and capacity
• Commonly used in logistics, warehouse and manufacturing industries

Tines and hoses not included. Two additional hydraulic functions required. TJC25/35 Sideshift range: +/-100mm. Please contact the Forklift manufacturer for the residual capacity of attachment.

Details

Model	Capacity @ LC (kg @ mm)	Mounting Class	Carriage Width (mm)	Opening Range (mm)	Fork Pocket Width (mm)	Lost Load (mm)	Unit Weight (mm)
TJC25-1020	2500 @ 600	II	1020	250-880	100-125	62	64
TJC25-1200	2500 @ 600	II	1200	250-1060	100-125	62	71
TJC25-1260	2500 @ 600	II	1260	286-1138	100-125	64	82
TJC25-1380	2500 @ 600	II	1380		100-125	64
TJC35-1070	3500 @ 600	III	1070	285-958	100-125	64	85
TJC35-1200	3500 @ 600	III	1200	280-1082	100-125	64	128
TJC35-1260	3500 @ 600	III	1260	290-1140	100-125	64	140
TJC35-1380	3500 @ 600	III	1380	290-1280	100-125	64

NOTES:
• Two additional hydraulic circuits required
• Sideshifting range: +/- 100mm
• Opening range refers to the distance between the fork’s outer edges
• Tines and hoses not included
• Maximum 1520mm fork length can be fitted, contact us if fork lengths above 1520mm required
• Please contact the forklift manufacturer for the residual capacity of attachment
• Further technical details available upon request, please call 1800 061 998

Model	Description	Lead Time (days)	Price (excl GST)
POA	Price on application		Please Call

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
