RBC Bale Clamp

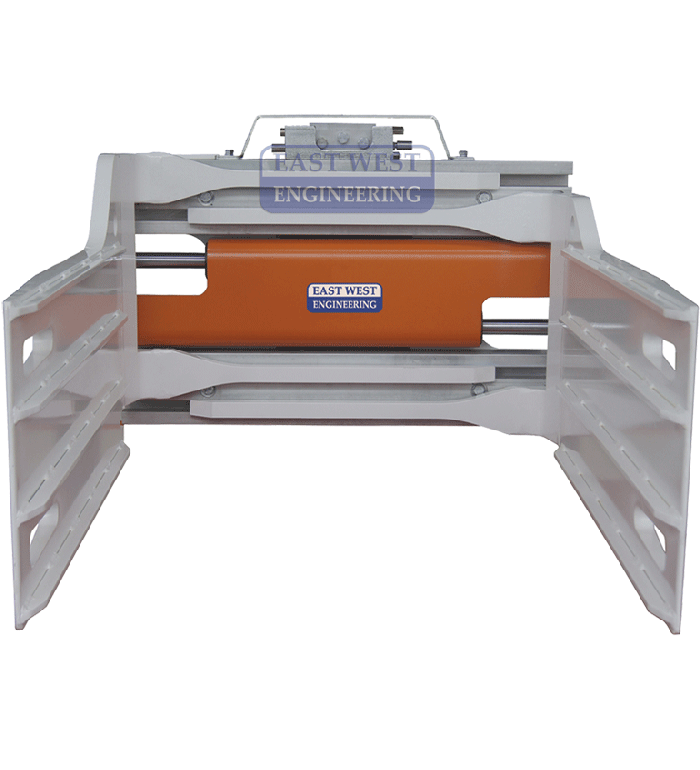

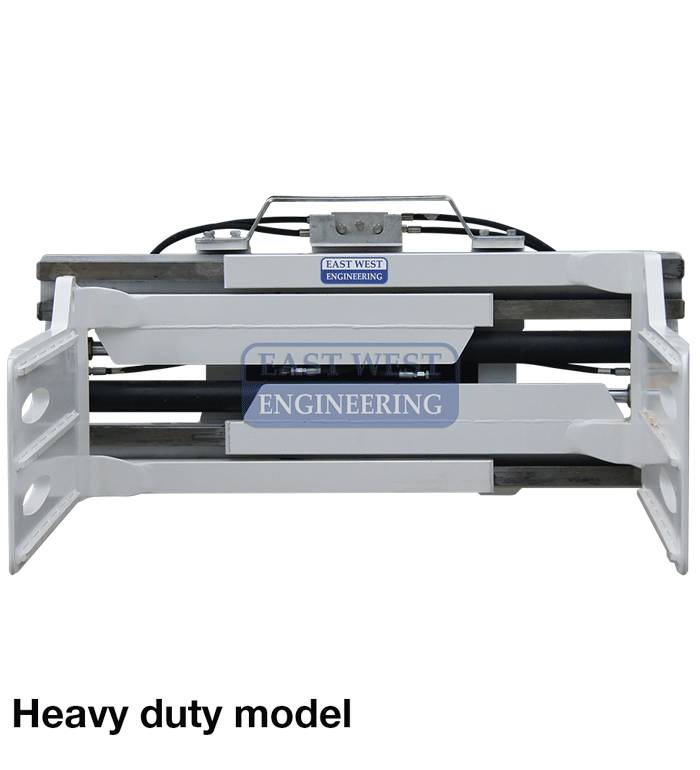

  • RBC Bale Clamp RBC Bale Clamp

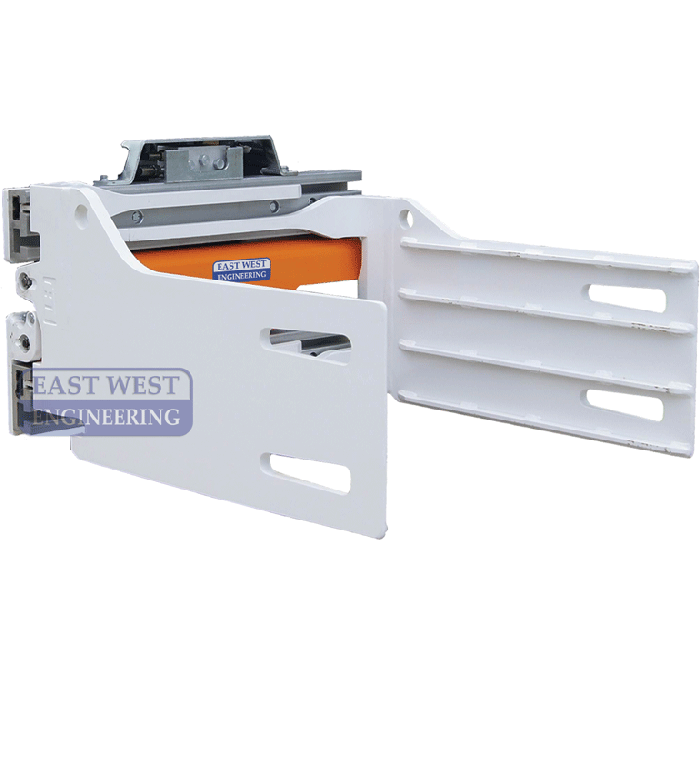

  • RBC - ribbed arm for smooth grip RBC - ribbed arm for smooth grip

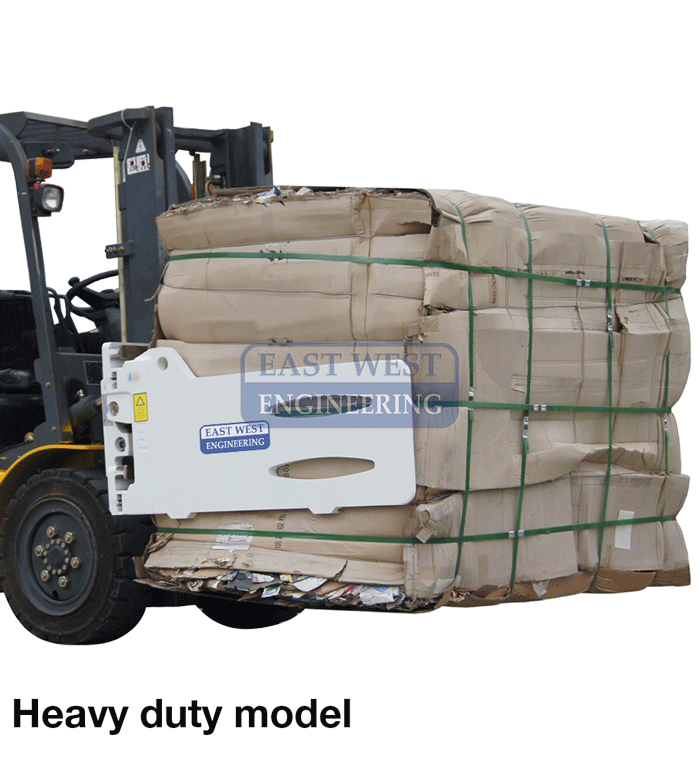

  • RBC - on forklift RBC - on forklift

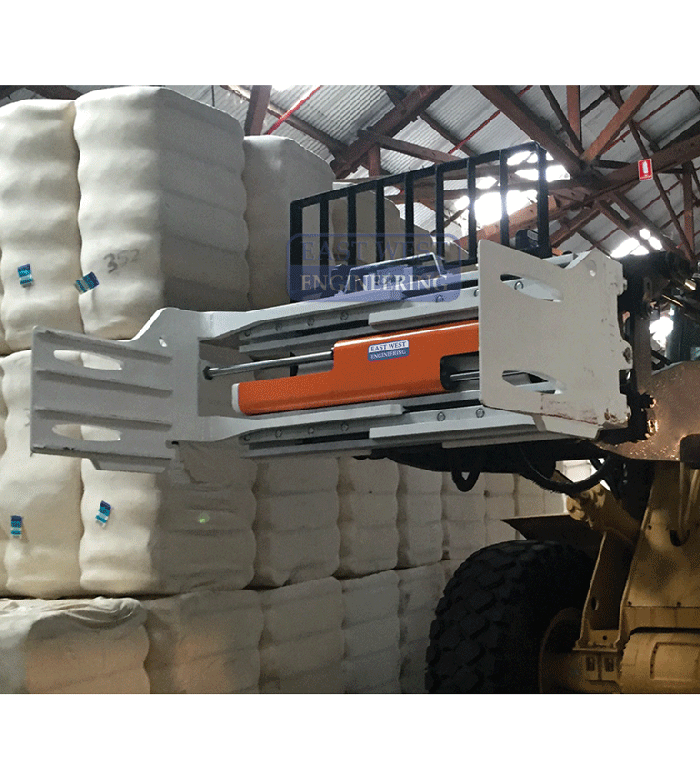

  • RBC - on loader RBC - on loader

Quick Overview

The RBC Bale Clamp is designed to efficiently handle baled products or blocks.

FEATURES:
• Enable forklift operator to clamp unpalletised loads
• Commonly used for handling baled products like waste paper, cotton, wool, textile and metal scrap bales
• Lateral sliding arm design for smooth clamping and sideshifting function
• Ribbed arms for secure grip and handling of load
• Available in a wide range of openings and arm lengths
• Maximum residual capacity due to minimum weight and lost load
• Cylinder protection to prevent damage
• Robust design
• Sideshift function

NOTE

• Please contact the forklift manufacturer for the residual capacity of attachment
• Two additional hydraulic circuits required
• Opening range refers to the distance between arm tips
• Supplied without hoses
• Further technical details available upon request, please call 1800 061 998

Details

 Model


Capacity @ LC
(kg @ mm)
Mounting Class  Opening Range
(mm)
Arm Height
(mm)
Arm Length
(mm)
Frame Width
(mm)
Arm Thickness
(mm)
Lost Load
(mm)

Unit Weight
(mm)

 RBC19D-B002 1900 @ 500 II 430-1720 415 1185 1040 80 128 430
 RBC22D-C004 2200 @ 500 II/III 490-2300 460 750 1600 75 146 610
 RBC27D-C004 2700 @ 500 III 590-2110 460 1181 1200 80 150 620

* Bale Clamp’s opening range can be designed to suit multiple load sizes.

** Custom sizes and capacities available upon request.

NOTE

• Please contact the forklift manufacturer for the residual capacity of attachment
• Two additional hydraulic circuits required
• Opening range refers to the distance between arm tips
• Supplied without hoses
• Further technical details available upon request, please call 1800 061 998
