CDR1000H Crane Drum Rotator

Add to Favourites

Quick Overview

The heavy lift capacity CDR1000H Crane Drum Rotator is designed to lift and rotate 205 litre steel drums by overhead crane. Rotation of the drum is controlled throughout the operation by the handle driven gearbox which locks the drum in position when operator stops turning the handle, preventing dangerous and uncontrolled movements.

FEATURES:
• Empties a standard 205 litre drums with minimal effort
• Heavy lift capacity allows 360° rotation of drum up to 1000kg
• Suitable for drum rotation up to chest height
• Rotation carried out via a hand crank
• Belly strap and eccentric lock secures drum in position
• Locking pin prevents accidental release during tipping cycle
• Large worm drive gearbox provides automatic braking
• Suits mining operations, manufacturers and foundries
• Zinc finish

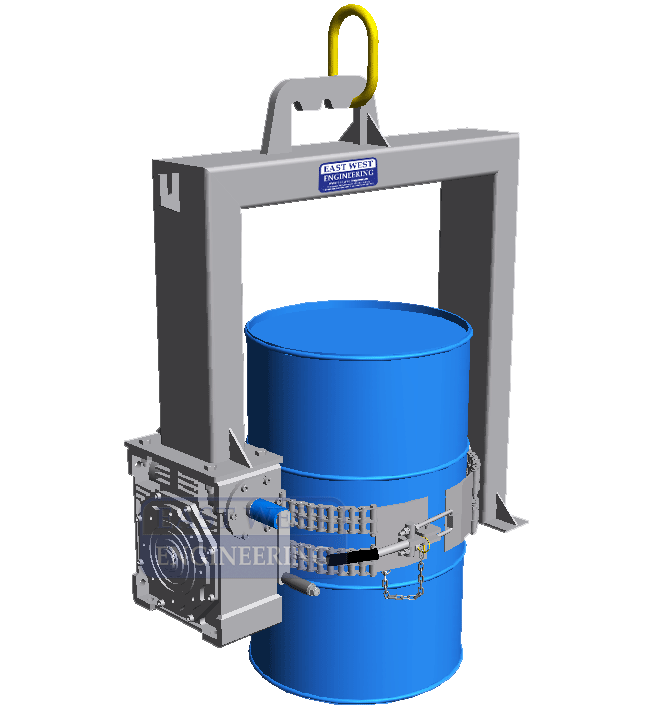

Drum not included, shown for illustrative purposes only

Details

	Working Load Limit (WLL)	1000kg
	Rotation	360°
	Rotation Shaft CL to Lifting Eye	1200mm
	Unit Weight	220kg

Model	Description	Lead Time (days)	Price (excl GST)
CDR1000H	CDR1000H Crane Drum Rotator	15	$7,890.00

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
