Quick Overview

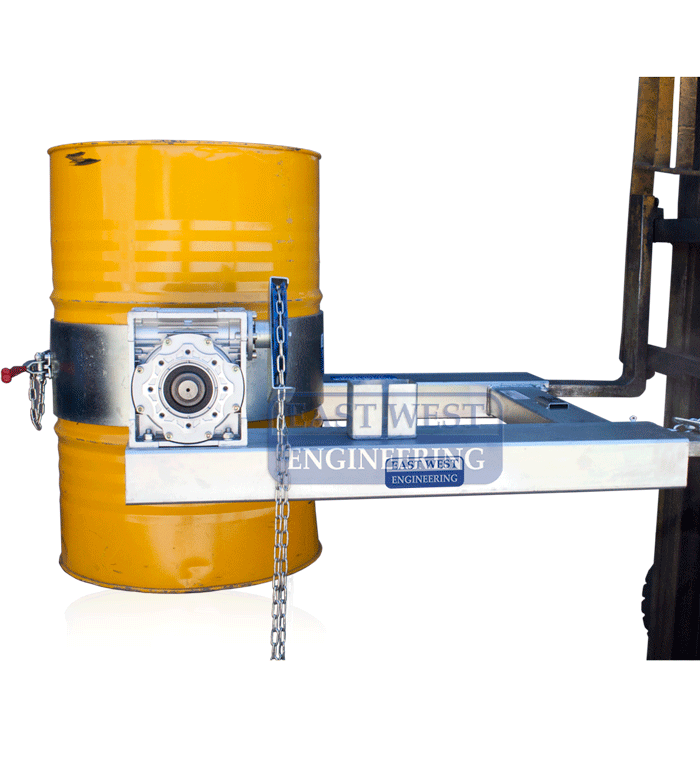

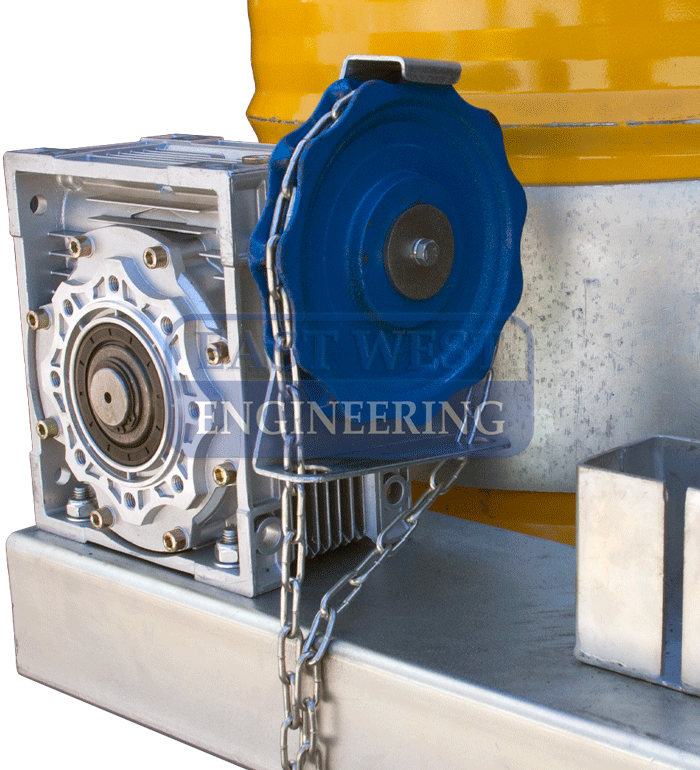

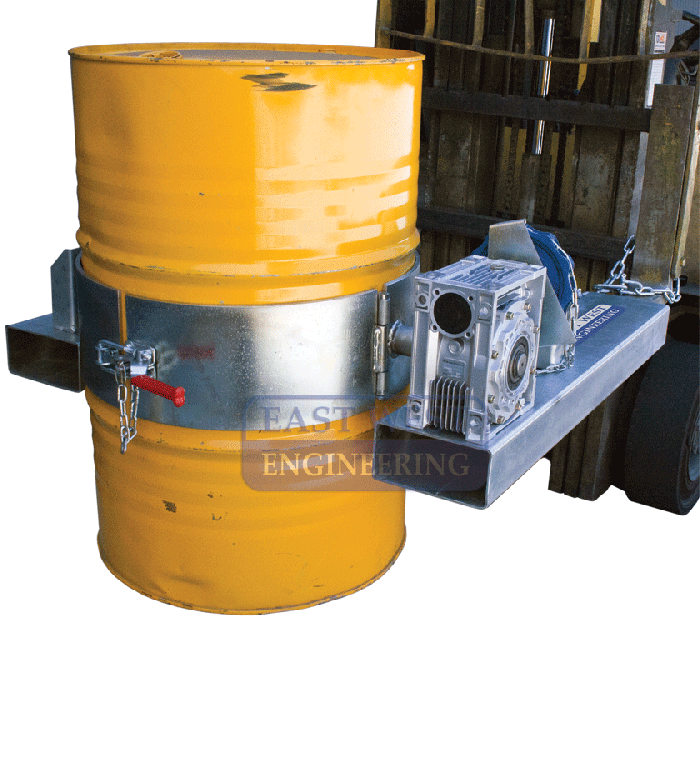

The DER40C Drum Rotator is designed as a fast and economical solution to lift and rotate a 205 litre drum 360 degrees. Rotation of the drum is fully controlled via a large worm-drive gear box which locks the drum in position when operator stops pulling the hand chain, preventing dangerous and uncontrolled movements.
FEATURES:
• Empties a standard 205 litre drums with minimal effort
• Suitable for drum rotation up to 3m above ground

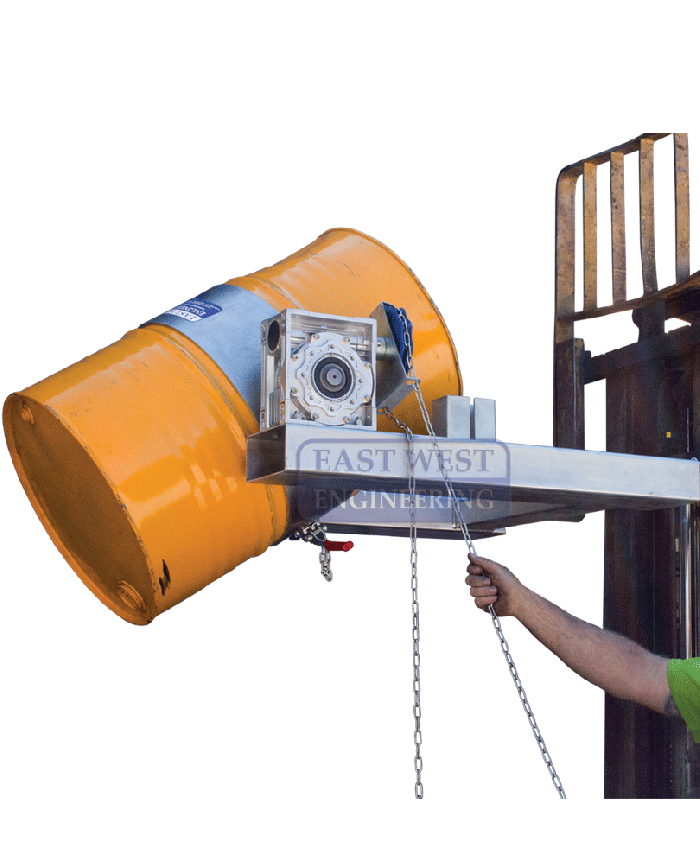

• Rotation carried out via hand chain
• Belly strap and eccentric lock secures drum in position
• Locking pin prevents accidental release
• Slip-on attachment allows quick connection to a forklift
• Can be coupled with the PBO Plastic Barrel Option
• Zinc finish
Plastic Barrel Option (PBO):
By replacing the standard belly strap, the PBO option allows for plastic drums and barrels, as well as standard steel drums to be handled. The dual woven and chain combination belly straps hold the drum or barrel firmly in position. The PBO option is suitable for a maximum load of 350kg
 |
Details
| Model |
Rotation |
Working Load Limit (kg) |
Fork Pocket Size (mm) |
Fork Pocket Centres (mm) |
Load Centres (mm) |
Unit Weight (kg) |
| DER40C | 360° | 400 | 185 x 60mm | 840 | 940 | 90 |
| DER40C-PBO | 360° | 350 | 185 x 60mm | 840 | 940 | 100 |
ASK A QUESTION ABOUT THIS PRODUCT
For further product specifications, pricing or freight costs, please complete this form and a member of our sales team will get back to you shortly.
