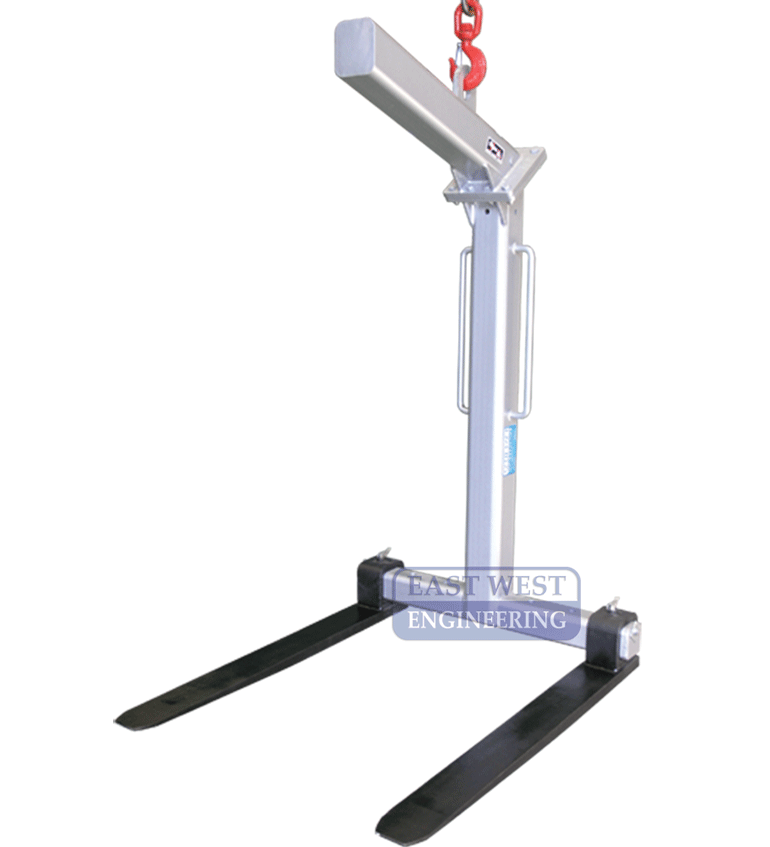

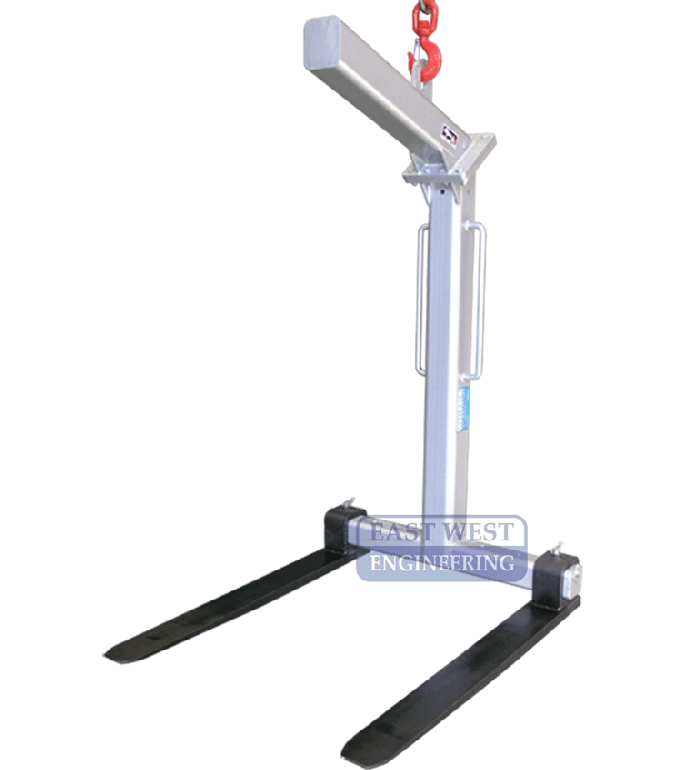

PHA2000 Self Levelling Pallet Hook

Add to Favourites

Quick Overview

The PHA2000 Self Levelling Pallet Hook is designed & certified in accordance with Australian Standard AS 1418.1 to safely handle palletised goods when being lifted by overhead crane. The unit self balances when loaded with an internal spring mechanism that keeps the fork tines horizontal. This eliminates the need to balance the pallet hook manually.

FEATURES:
• Adjustable fork tine width
• Suits loads exceeding 250kg only
• Self-levelling for ease in operation between loaded or unloaded positions
• Internal spring mechanism ensures the lifting eye automatically positions
• Enclosed frame protects the operator from moving parts
• Made with high tensile steel for maximum strength
• Ideal for the transport and construction industry
• Zinc finish

Strictly for use with loads exceeding 250kg.

EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS

Details

	Working Load Limit (WLL)	2000kg
	Load Centre	600mm
	Clear Length Fork Tines	100 x 45 x 1055mm
	Adjustable Fork Tines	345, 625, or 905 centres
	Unit Weight	196kg

Model	Description	Lead Time (days)	Price (excl GST)
PHA2000	Self Levelling Pallet Hook	3	$2,310.00

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
