CDS Cable Drum Spreader Beam

  • CDS Cable Drum Lifting & Payout Spreader Beam CDS Cable Drum Lifting & Payout Spreader Beam
  • CDS Cable Drum Lifting & Payout Spreader Beam CDS Cable Drum Lifting & Payout Spreader Beam
  • CDS Cable Drum Lifting & Payout Spreader Beam CDS Cable Drum Lifting & Payout Spreader Beam
  • CDS Cable Drum Lifting & Payout Spreader Beam CDS Cable Drum Lifting & Payout Spreader Beam
  • CDS Cable Drum Lifting & Payout Spreader Beam CDS Cable Drum Lifting & Payout Spreader Beam

Quick Overview

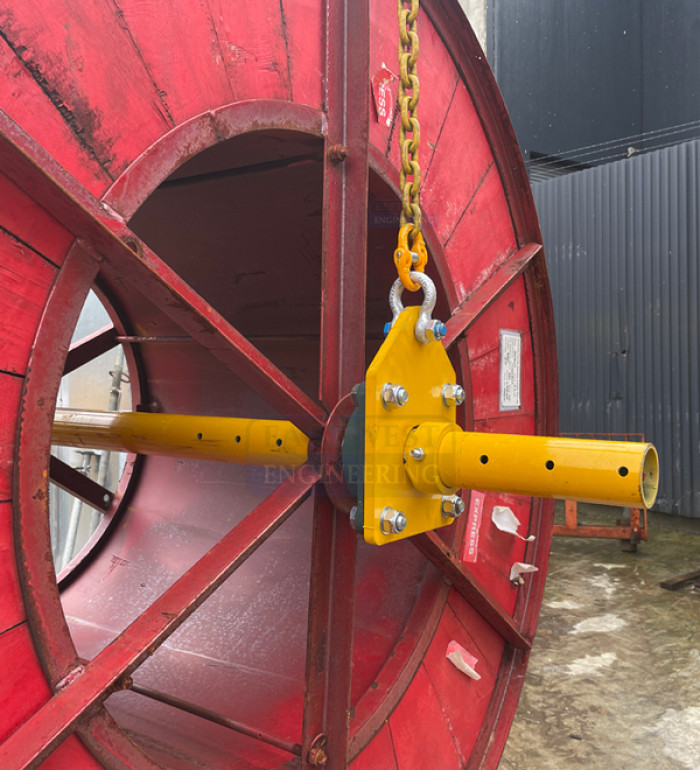

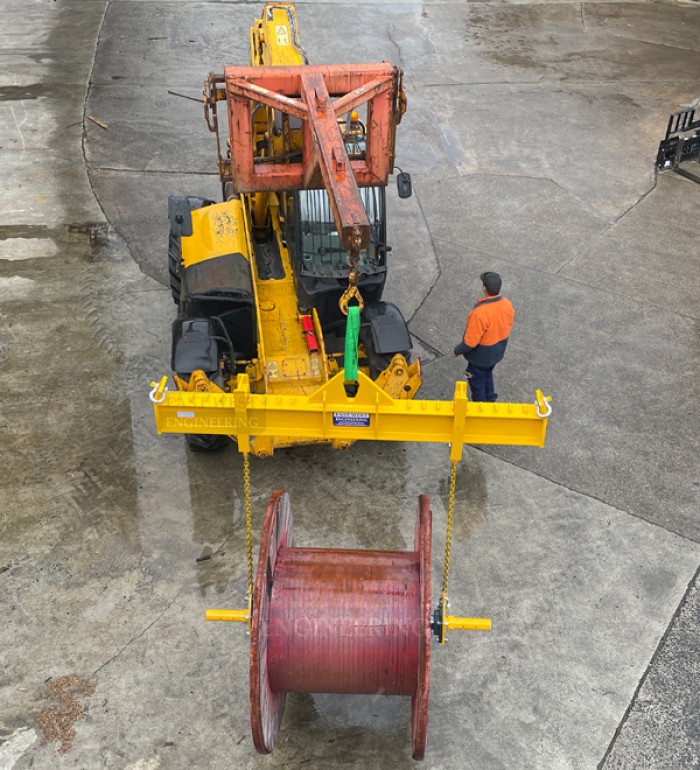

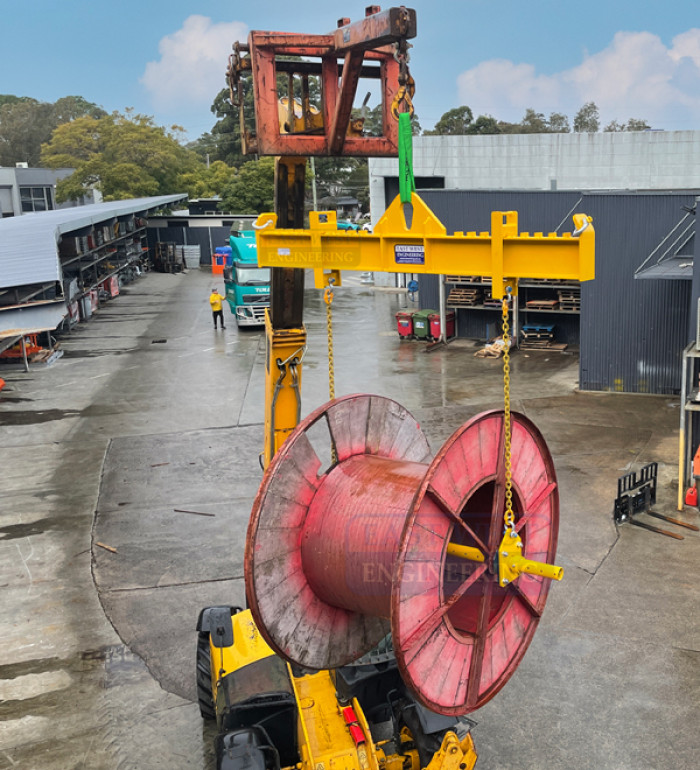

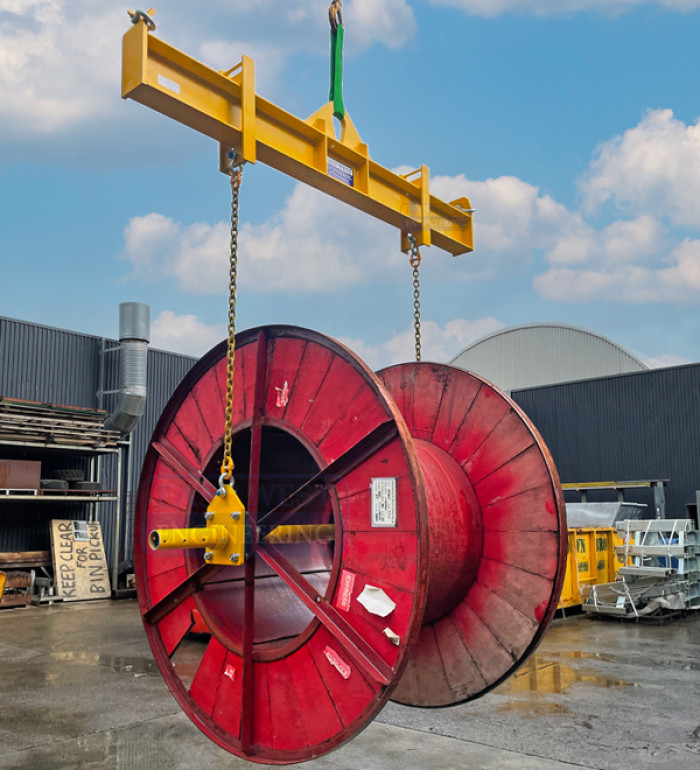

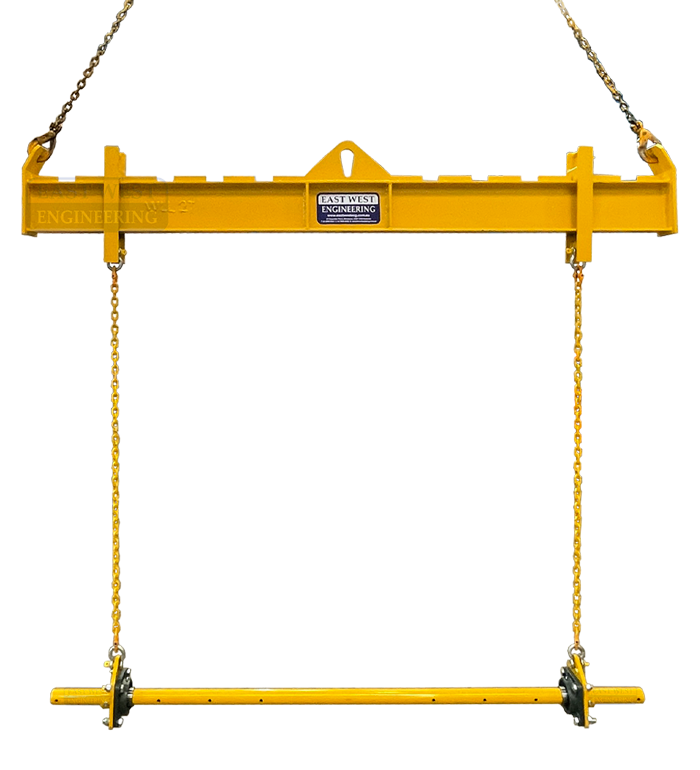

The CDS Cable Drum Spreader Beam is designed for the safe transport of cable drums and payout during installation.  The shaft runs through the centre of the drum and is connected at both ends to a spreader beam via two chains. Fitted with bearings, the cable drum freely rotates for smooth unwinding of cables. Available in 2 standard sizes or can be custom made to any length or capacity to suit the application.

FEATURES:
• Suits lifting and dispensing of cables from a drum by crane
• Adjustable lift positions to suit varying drum sizes
• Bearings fitted for smooth rotation of cable drums
• Lightweight steel spindle allows easy placement through drum centre
• Beam to spindle link chain supplied
• 2T and 6T capacity models available

• Can be customised to suit application on request
• Enamel paint finish

2 leg chain sling not included. Overhead lifting chains shown for illustrative purposes only.

Details

 Model


Working
Load Limit
(kg)
Drum
Width
(mm)
Max. Drum
Diameter
 (mm)
Min. Drum Hole
Diameter
 (mm)
Spindle
Weight
 (kg)
Unit
Weight
 (kg)
 CDS2X2 2000 400-1800 2500 55 12 95
 CDS6X2 6000 400-1800 2500 80 20 175



* Custom lengths and capacities available on request

Model Description Price
(excl GST)
CDS2X2 WLL 2000kg x 400-1800mm wide
$4,280.00
CDS6X2 WLL 6000kg x 400-1800mm wide
$7,140.00
* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
