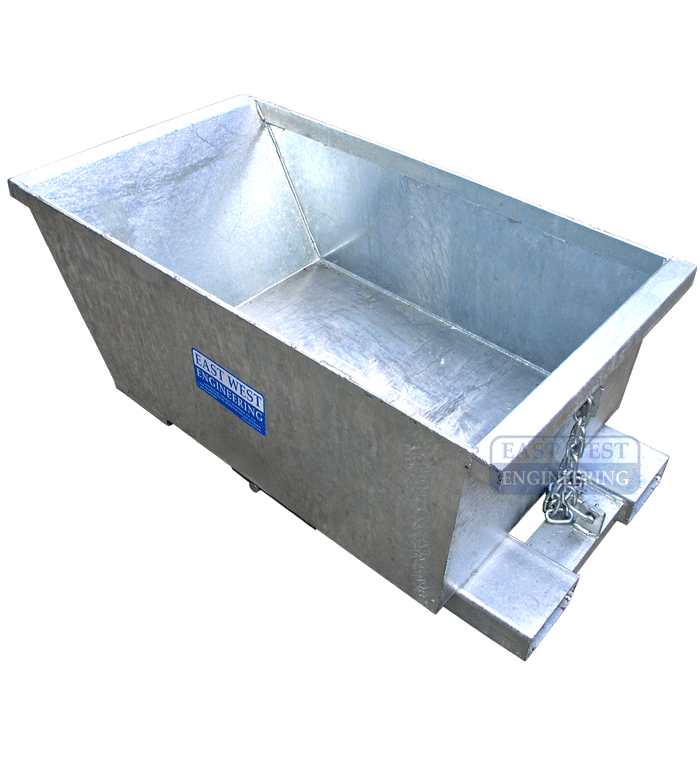

SSD Self Dumping Bin

Add to Favourites

Quick Overview

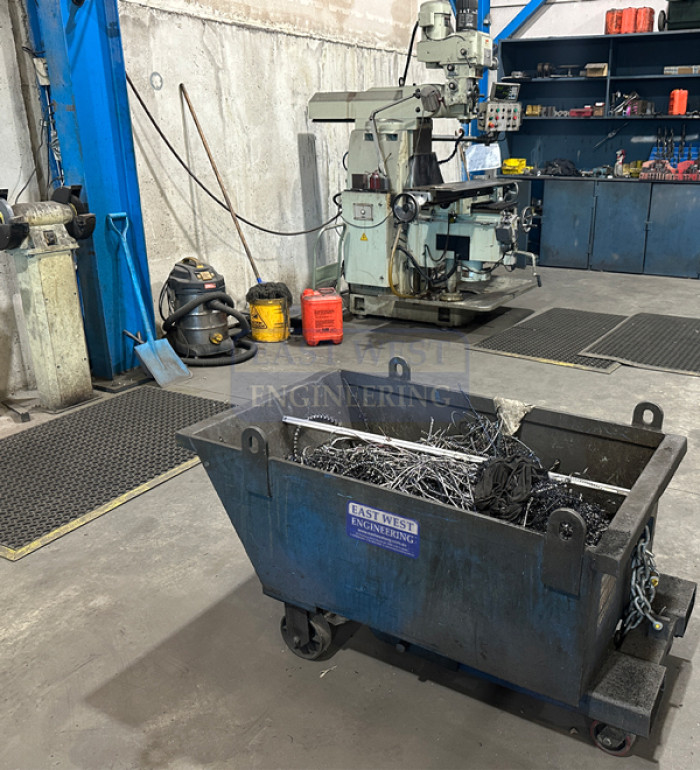

The SSD Self Dumping Bin is a compact, low-profile solution for efficient waste and parts handling in confined spaces. Designed for use in production environments, it’s ideal for collecting slugs from punching machines or storage of hardware, and other metal components.

FEATURES:
• Low-profile, compact design for use in confined areas
• Self-dumping mechanism allows safe tipping from the forklift driver’s seat

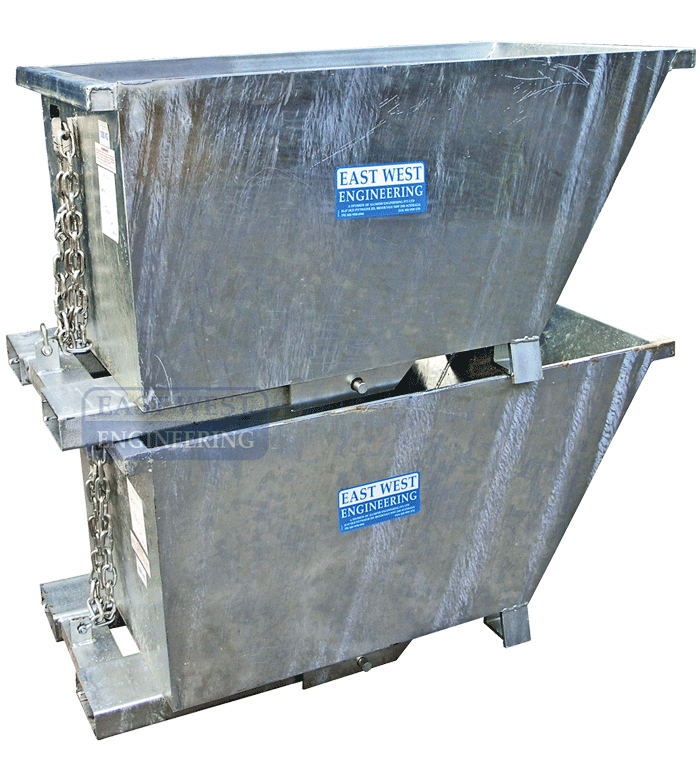

• Stackable for convenient storage of hardware and parts

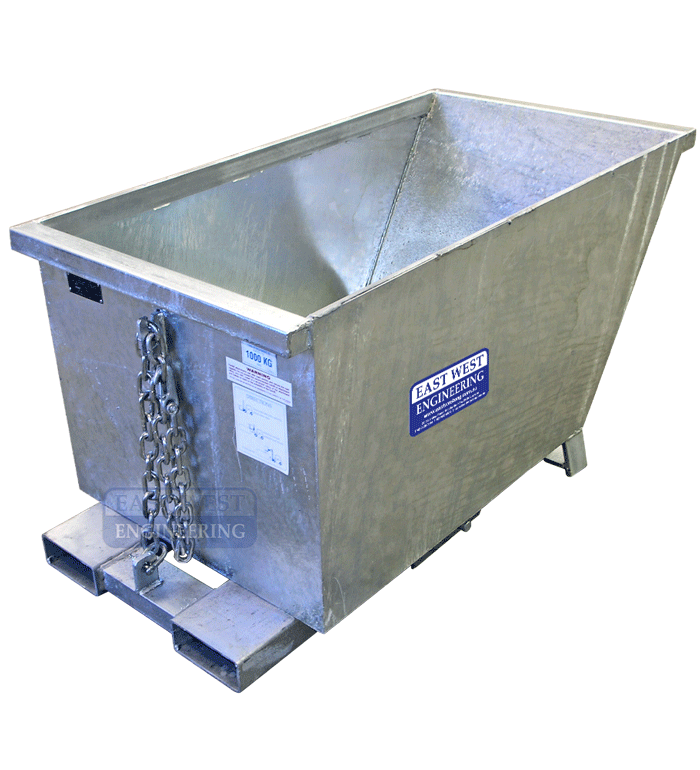

• Fitted with fork pockets and safety chain for quick forklift connection

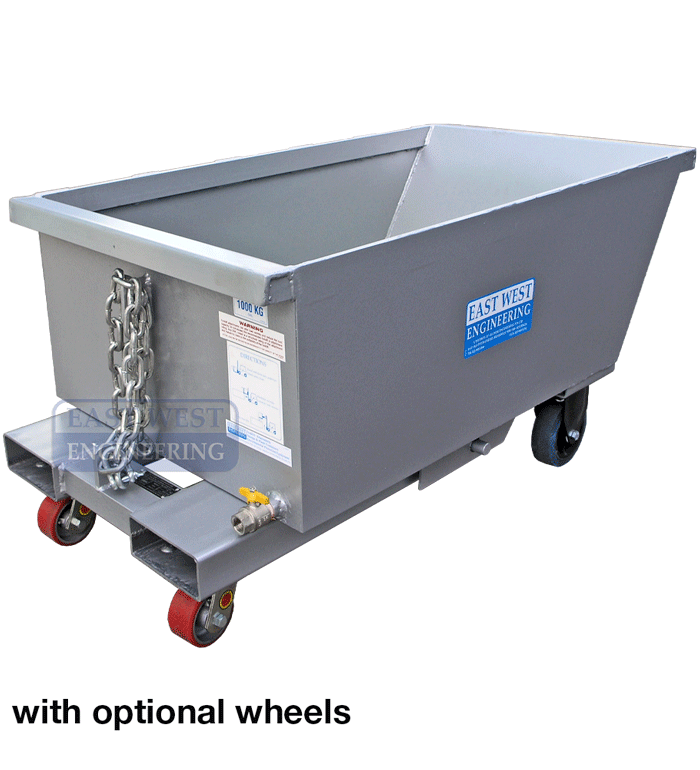

• Optional wheel kit, drain valve, and crane lugs available on request
• Made to order
• Zinc or enamel paint finish

To empty, the operator catches the bin on the edge of the bulk container and reverses the forklift. When the tines clear the pivot point, raising the bin will permit a complete discharge of contents.

Made to order policy applies.

Wheel option must be specified at time of order - wheels cannot be retrofitted.

Units fitted with crane lugs are not stackable

Details

Model	Working Load Limit (kg)	Capacity (cu.m)	Bin Length (mm)	Bin Width (mm)	Bin Height (mm)	Pocket Size (mm)	Pocket Centres (mm)	Unit Weight (kg)
SSD3	1000	0.2	1185	750	430	185 x 65	360	80
SSD4	1000	0.3	1245	750	530	185 x 65	360	90
SSD5	1000	0.4	1300	750	630	185 x 65	360	100
SSD6	1000	0.5	1360	750	730	185 x 65	360	110

Features

Model	Description	Lead Time (days)	Price (excl GST)
SSD3-PS	COMPACT SLUG BIN 0.2cum-PAINT	15	$3,080.00
SSD3-G	COMPACT SLUG BIN 0.2cum-GAL	20	$3,370.00
SSD4-PS	COMPACT SLUG BIN 0.3cum-PAINT	15	$3,110.00
SSD4-G	COMPACT SLUG BIN 0.3cum-GAL	20	$3,410.00
SSD5-PS	COMPACT SLUG BIN 0.4cum-PAINT	15	$3,150.00
SSD5-G	COMPACT SLUG BIN 0.4cum-GAL	20	$3,460.00
SSD6-PS	COMPACT SLUG BIN 0.5cum-PAINT	15	$3,180.00
SSD6-G	COMPACT SLUG BIN 0.5cum-GAL	20	$3,520.00

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
