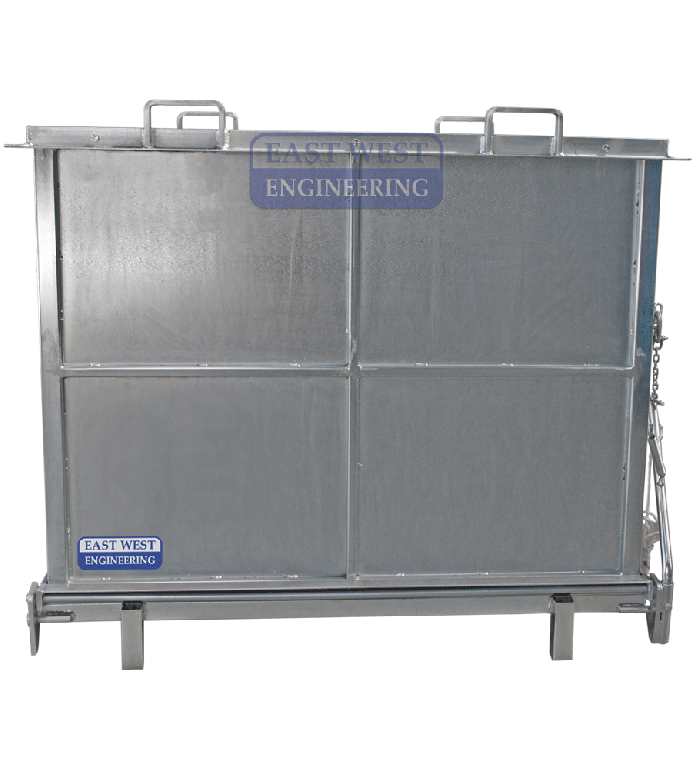

WDS160 Drop Bottom Bin

Add to Favourites

Quick Overview

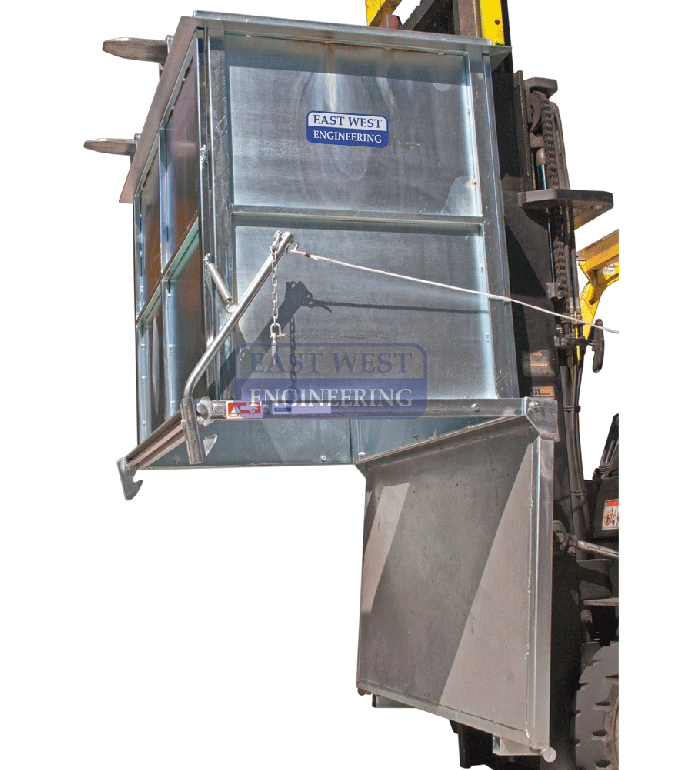

The WDS160 Drop Bottom Bin is designed for the efficient storage and transfer of waste materials on-site. This bin is emptied via a simple drop bottom base, allowing complete emptying of contents into a larger bin or dump truck.

FEATURES:
• Drop bottom base allows fast and complete dumping of waste
• Suitable for cardboard and other lightweight waste
• Easily transported by forklift or overhead crane
• Drop bottom base is released safely from driver’s seat via a pull cord mechanism
• Strong steel frame construction with sheet metal sides and base
• Crane lugs fitted as standard
• Zinc finish

Details

Working Load Limit (WLL)	1000kg
Capacity	1.5cu.m
Overall Dimensions	1600 x 1000 x 1370mm
Unit Weight	200kg
Fork Pocket Size	160 x 55mm
Fork Pocket Centres	784mm

Model	Description	Lead Time (days)	Price (excl GST)
WDS160	Drop Bottom Bin	3	$2,160.00

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
