WFH Self Dumping Bin

Add to Favourites

Quick Overview

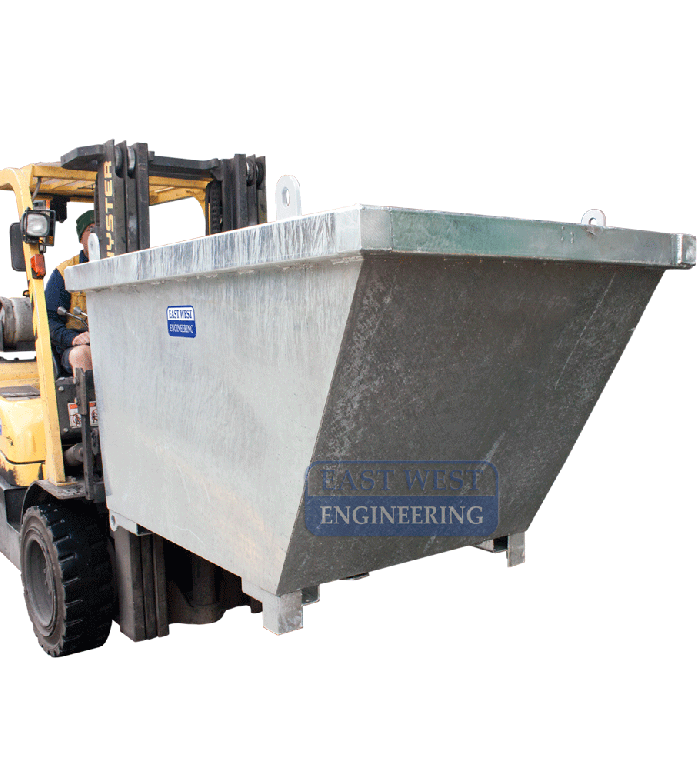

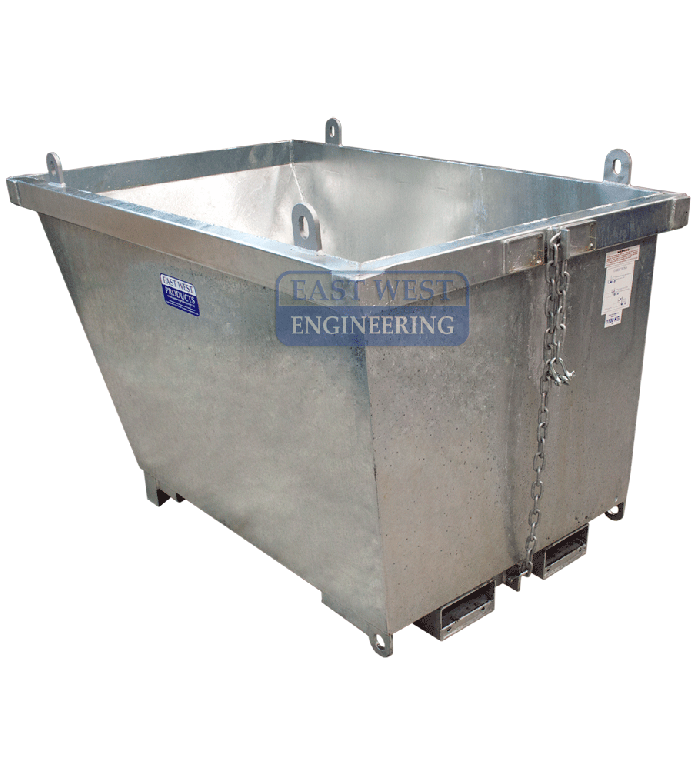

The WFH Self Dumping Bin has been designed to provide an economical solution to waste storage and disposal of industrial waste. Forklift tines are positioned fully under the bin utilising the forklifts maximum lift capacity.

FEATURES:
• Suitable for use with forklift or overhead crane
• Supplied standard with 4 crane lugs and upending lugs
• Self dumping mechanism allows the operator to safely activate tipping cycle from driver’s seat
• Made from 3mm plate and reinforced edging for demanding applications
• Fitted standard with a removable drain plug
• Fork pockets and safety chain for quick connection to a forklift
• Optional wheel kit and drain ball valve available for supply on request
• Galvanised finish

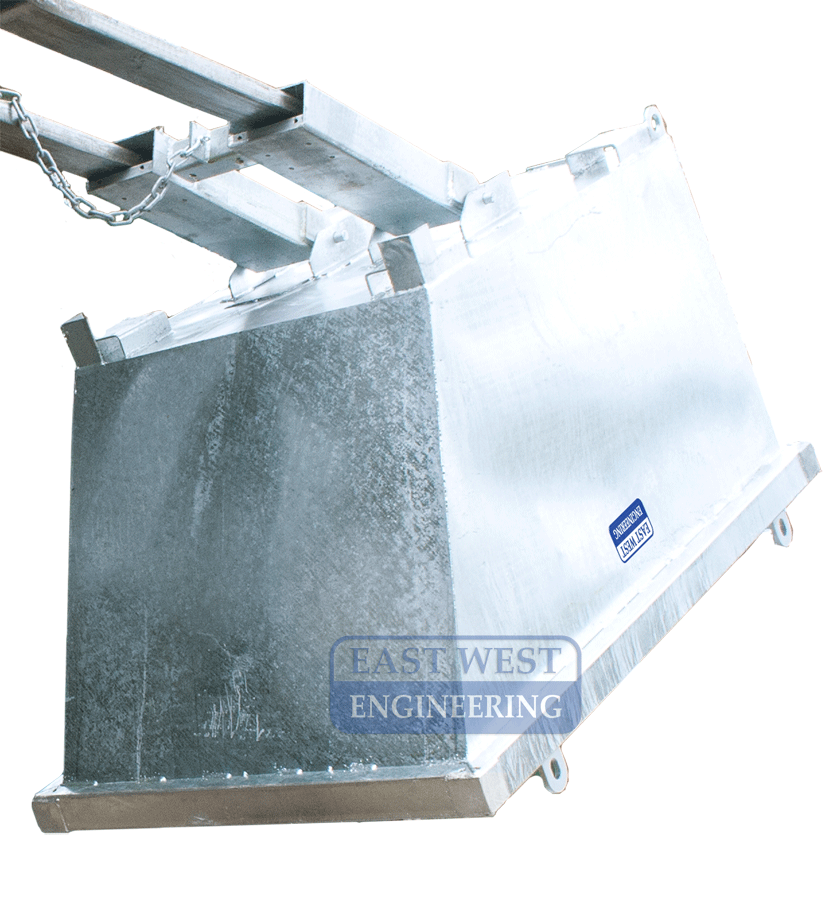

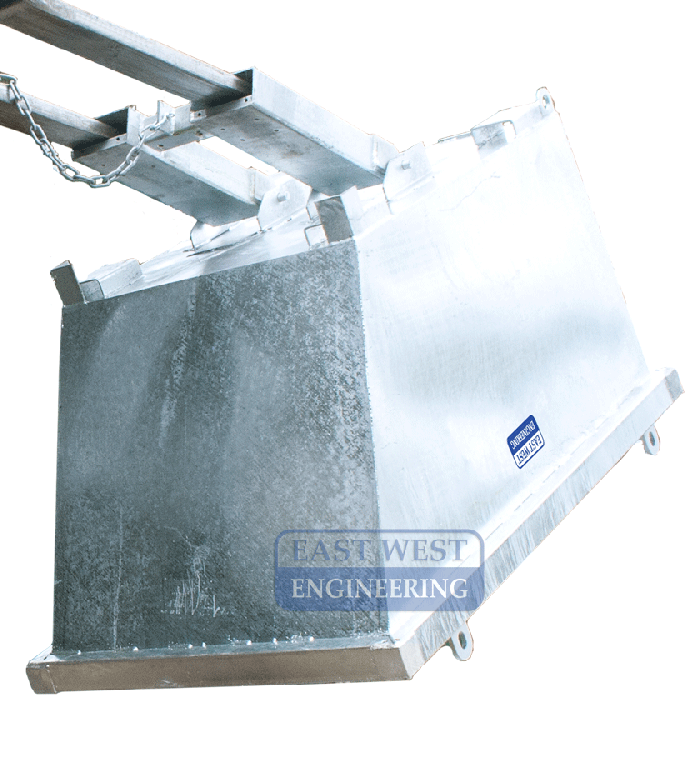

To empty, the operator catches the bin on the edge of the bulk container and reverses the forklift. When the tines clear the pivot point, raising the bin will permit a complete discharge of contents.

Due to transport safety requirements wheels are no longer pre-fitted. If ordered, optional wheel kits are supplied for fitment onsite, not fitted.

Details

Model	Working Load Limit (kg)	Capacity (cu.m)	Bin Length (mm)	Bin Width (mm)	Bin Height (mm)	Pocket Size (mm)	Pocket Centres (mm)	Unit Weight (kg)
WFH5X74	1500	0.35	1510	740	630	185 x 70	310	130
WFH5X11	1500	0.59	1510	1150	630	185 x 70	695	155
WFH9X74	1500	0.68	1715	740	980	185 x 70	310	165
WFH9X11	1500	1.1	1715	1150	980	185 x 70	695	200
WFH9X20	1500	2.1	1715	1986	980	185 x 70	695	260

Features

Model	Description	Lead Time (days)	Price (excl GST)
WFH5X74	Self Dumping Bin - 0.35cu.m	5	$1,580.00
WFH5X11	Self Dumping Bin - 0.59cu.m	5	$1,800.00
WFH9X74	Self Dumping Bin - 0.68cu.m	5	$1,870.00
WFH9X11	Self Dumping Bin - 1.1cu.m	5	$2,220.00
WFH9X20	Self Dumping Bin - 2.1cu.m	5	$2,860.00

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
