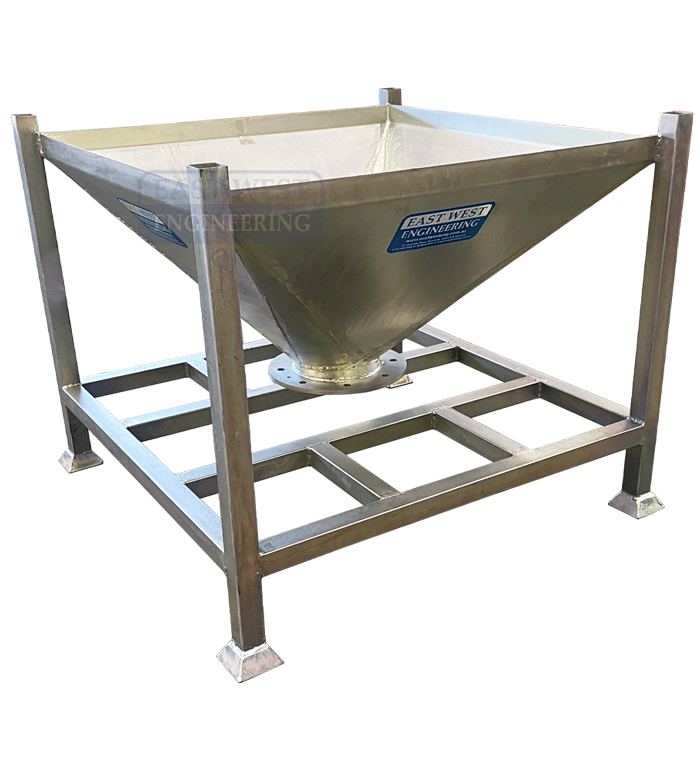

SFH100 Bulk Bag Hopper - Flange

Add to Favourites

Quick Overview

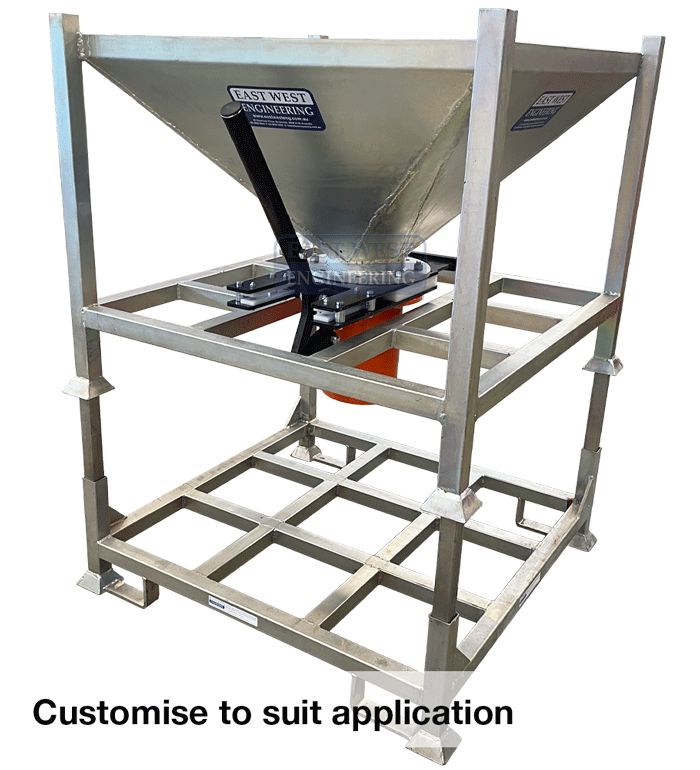

The SFH100 Bulk Bag Hopper is designed for the storage and dispensing of bulk materials. This flanged unit is designed to allow adaption to suit various bulk material handling requirements.

FEATURES:
• Ideal for handling granular products such as aggregate, sand, gravel or grain
• Available in models (SV) with slide valve fitted for controlling material flow and easy operation

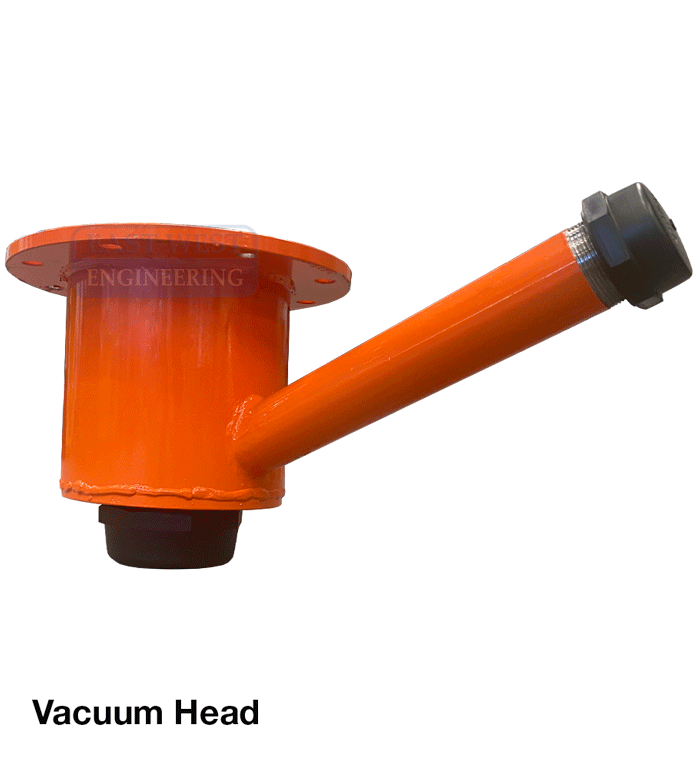

• Available in model with vacuum head (SFH100-SV200V)
• Stacks 3 high when empty and 2 high when fully loaded
• Optional SKH-BP Bag Piercing Knife efficiently discharges materials from the bulk bag
• Zinc finish

Details

Model	Working Load Limit (kg)	Capacity (cu.m)	Slide Valve Fitted	Hopper Opening (NB)	Dimensions L x W x D (mm)	Unit Weight (kg)
SFH100	1000	0.20	No	200	1180 x 1180 x 943	80
SFH100-SV100	1000	0.20	Yes	100	1180 x 1180 x 943	127
SFH100-SV200	1000	0.20	Yes	200	1180 x 1180 x 943	127
SFH100-SV200V	1000	0.20	Yes	Vacuum Head	1180 x 1180 x 943	130

Model	Description	Price (excl GST)
SFH100	Bulk Bag Hopper - Flange	$960.00

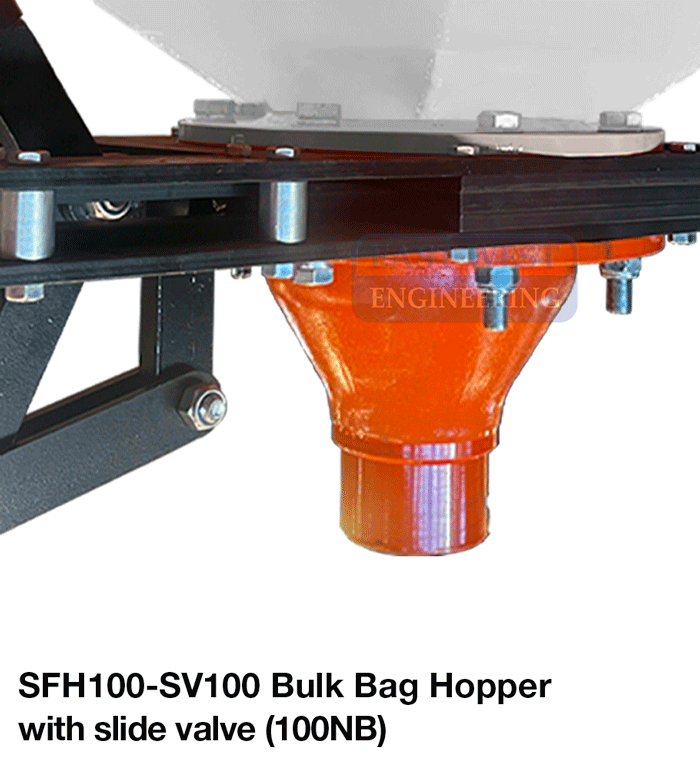

SFH100-SV100	Bulk Bag Hopper - Slide Valve with Adaptor Funnel (100NB)	$3,300.00
SKH-BP	Optional Bulk Bag Piercer	$500.00

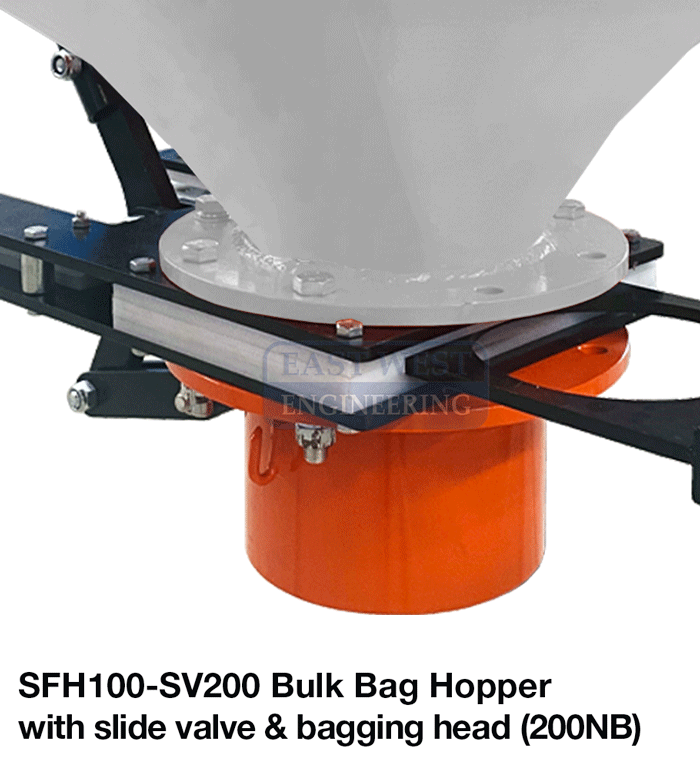

SFH100-SV200	Bulk Bag Hopper - Slide Valve with Bagging Head (200NB)	$2,030.00
SFH100-SV200V	Bulk Bag Hopper - Slide Valve with Vacuum Head	$3,510.00

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
