WFL Lever Release Tipping Bin

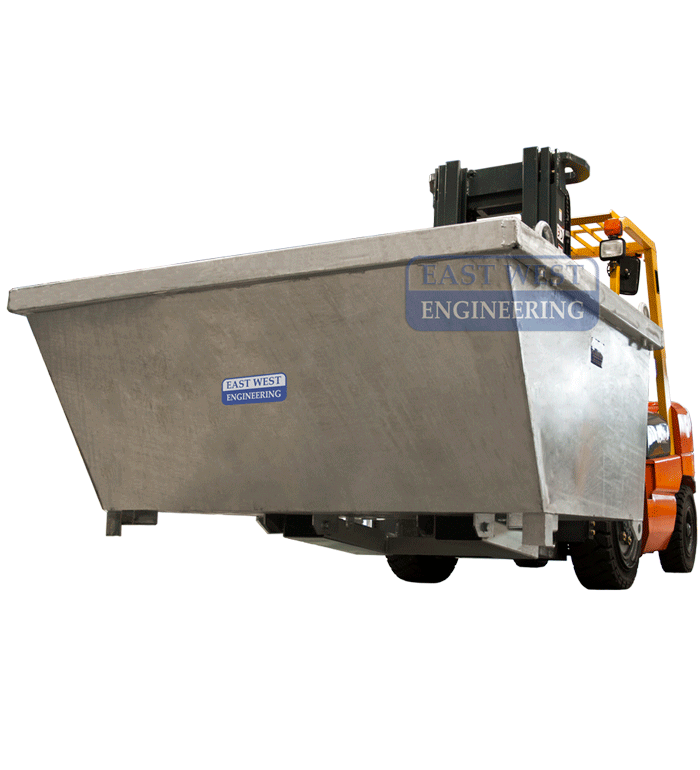

The WFL Lever Release Tipping Bin is as an economical solution designed for heavy industrial and building waste collection and disposal.

FEATURES:
• 1500kg capacity is ideal for heavy waste including metal, timber, concrete, bricks and green waste
• Low profile design allows use in confined spaces
• Pull cord tipping mechanism activated safely from driver’s seat
• Custom built shock absorber prevents impact forces being transmitted to the forklift during emptying
• Manufactured from 3mm plate and feature reinforced edging and a catch handle
• Fitted standard with a removable drain plug
• Crane and upending lugs fitted as standard
• Optional wheel kit and drain ball valve available for supply on request
• Galvanised finish

Compare

Due to transport safety requirements wheels are no longer pre-fitted. If ordered, optional wheel kits are supplied for fitment onsite, not fitted.

Model	Description	Price (Excl. GST)
Model: WFL5X11	Description: Lever Release Tipping Bin - 0.59cu.m	Price: $2,570.00	Compare Product	Add to Quote
Model: WFL5X74	Description: Lever Release Tipping Bin - 0.35cu.m	Price: $2,330.00	Compare Product	Add to Quote
Model: WFL9X11	Description: Lever Release Tipping Bin - 1.1cu.m	Price: $2,680.00	Compare Product	Add to Quote
Model: WFL9X20	Description: Lever Release Tipping Bin - 2.1cu.m	Price: $3,960.00	Compare Product	Add to Quote
Model: WFL9X74	Description: Lever Release Tipping Bin - 0.68cu.m	Price: $2,740.00	Compare Product	Add to Quote

Model	Working Load Limit (WLL) kg	Capacity (cu.m)	Bin Length (mm)	Bin Width (mm)	Bin Height (mm)	Fork Pocket Size (mm)	Fork Pocket Centres (mm)	Unit Weight (kg)	Optional Wheel Kit Part #	To Suit	Operation	Finish
Model: WFL5X11	Working Load Limit (WLL) kg: 1500	Capacity (cu.m): 0.59	Bin Length (mm): 1510	Bin Width (mm): 1150	Bin Height (mm): 630	Fork Pocket Size (mm): 185 x 70	Fork Pocket Centres (mm): 695	Unit Weight (kg): 165	Optional Wheel Kit Part #: SC60011-005	To Suit: Industrial & Building Waste	Operation: Pull cord tipping mechanism	Finish: Galvanised
Model: WFL5X74	Working Load Limit (WLL) kg: 1500	Capacity (cu.m): 0.35	Bin Length (mm): 1510	Bin Width (mm): 740	Bin Height (mm): 630	Fork Pocket Size (mm): 185 x 70	Fork Pocket Centres (mm): 310	Unit Weight (kg): 140	Optional Wheel Kit Part #: SC60011-005	To Suit: Industrial & Building Waste	Operation: Pull cord tipping mechanism	Finish: Galvanised
Model: WFL9X11	Working Load Limit (WLL) kg: 1500	Capacity (cu.m): 1.1	Bin Length (mm): 1715	Bin Width (mm): 1150	Bin Height (mm): 980	Fork Pocket Size (mm): 185 x 70	Fork Pocket Centres (mm): 695	Unit Weight (kg): 215	Optional Wheel Kit Part #: SC60011-005	To Suit: Industrial & Building Waste	Operation: Pull cord tipping mechanism	Finish: Galvanised
Model: WFL9X20	Working Load Limit (WLL) kg: 1500	Capacity (cu.m): 2.1	Bin Length (mm): 1715	Bin Width (mm): 1986	Bin Height (mm): 980	Fork Pocket Size (mm): 185 x 70	Fork Pocket Centres (mm): 695	Unit Weight (kg): 275	Optional Wheel Kit Part #: SC60006-004	To Suit: Industrial & Building Waste	Operation: Pull cord tipping mechanism	Finish: Galvanised
Model: WFL9X74	Working Load Limit (WLL) kg: 1500	Capacity (cu.m): 0.68	Bin Length (mm): 1715	Bin Width (mm): 740	Bin Height (mm): 980	Fork Pocket Size (mm): 185 x 70	Fork Pocket Centres (mm): 310	Unit Weight (kg): 180	Optional Wheel Kit Part #: SC60011-005	To Suit: Industrial & Building Waste	Operation: Pull cord tipping mechanism	Finish: Galvanised
