RBC Bale Clamp

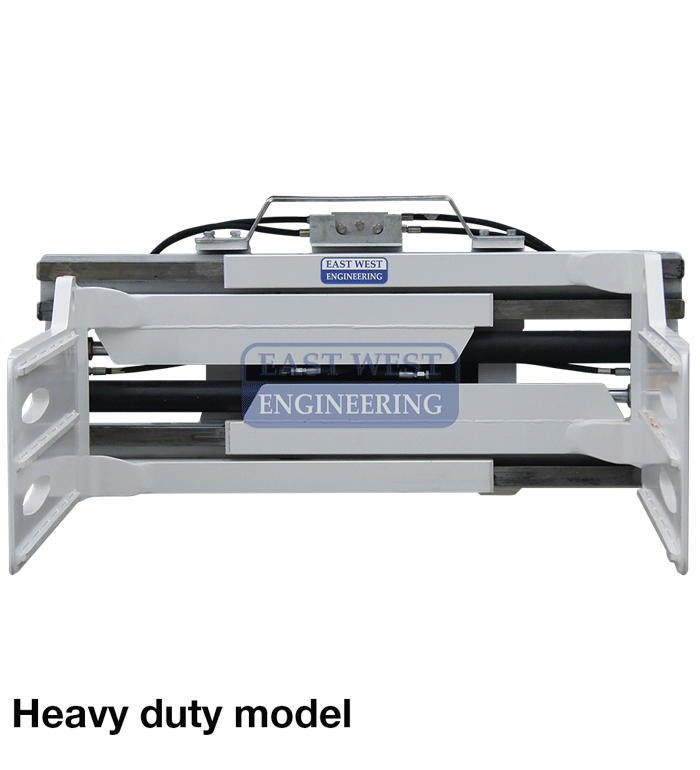

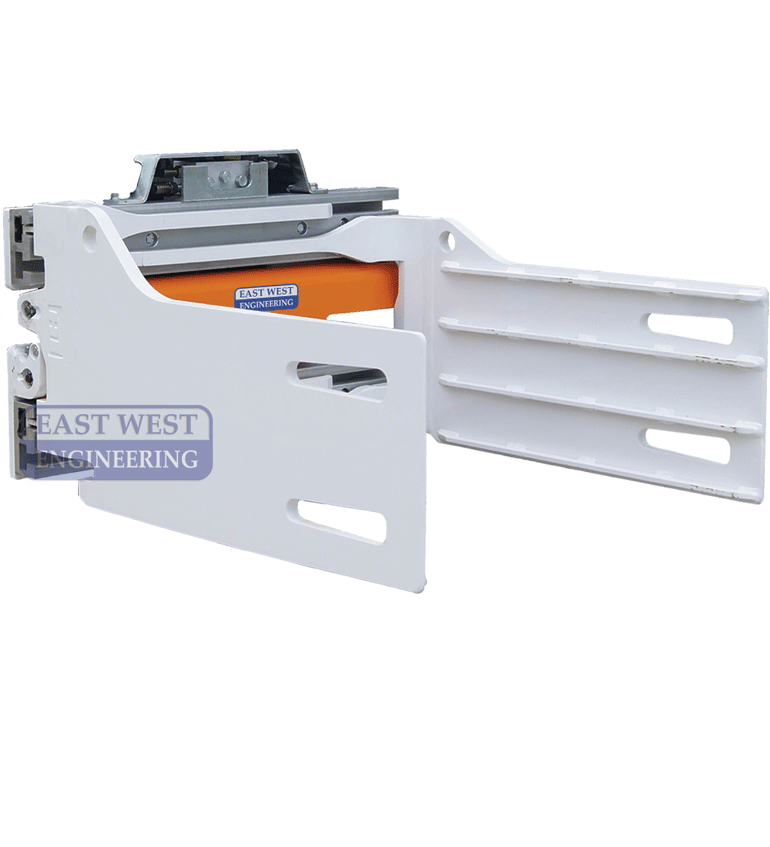

The RBC Bale Clamp is designed to efficiently handle baled products or blocks.

FEATURES:

  • Enable forklift operator to clamp unpalletised loads

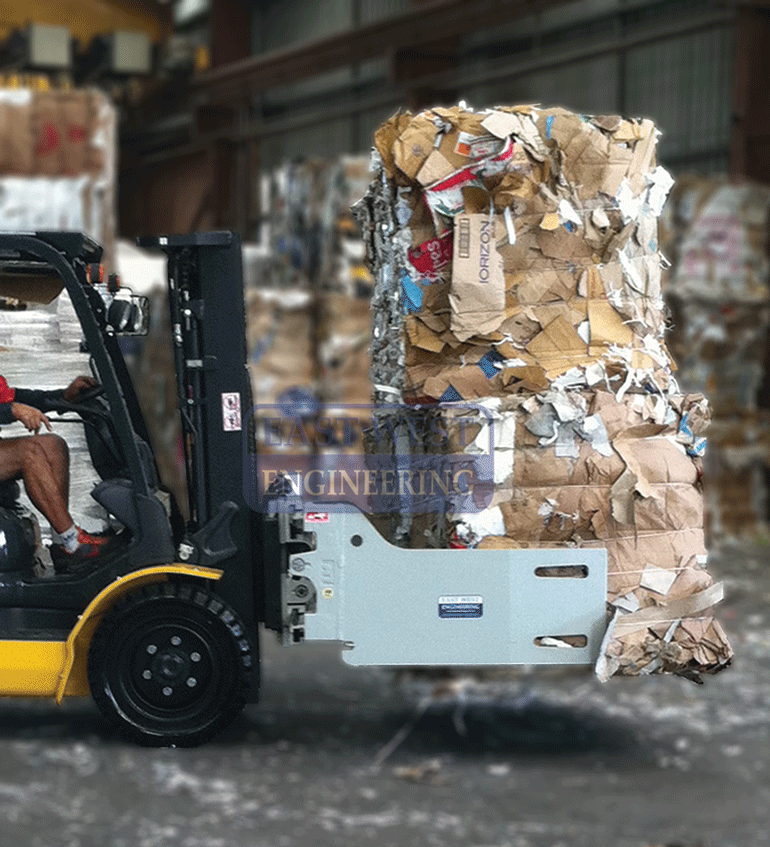

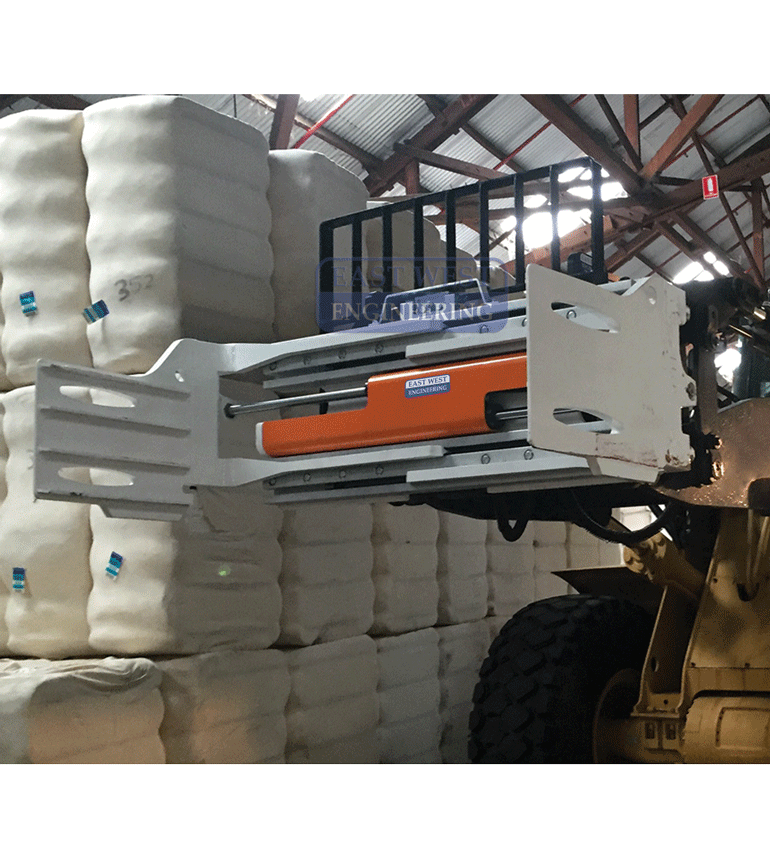

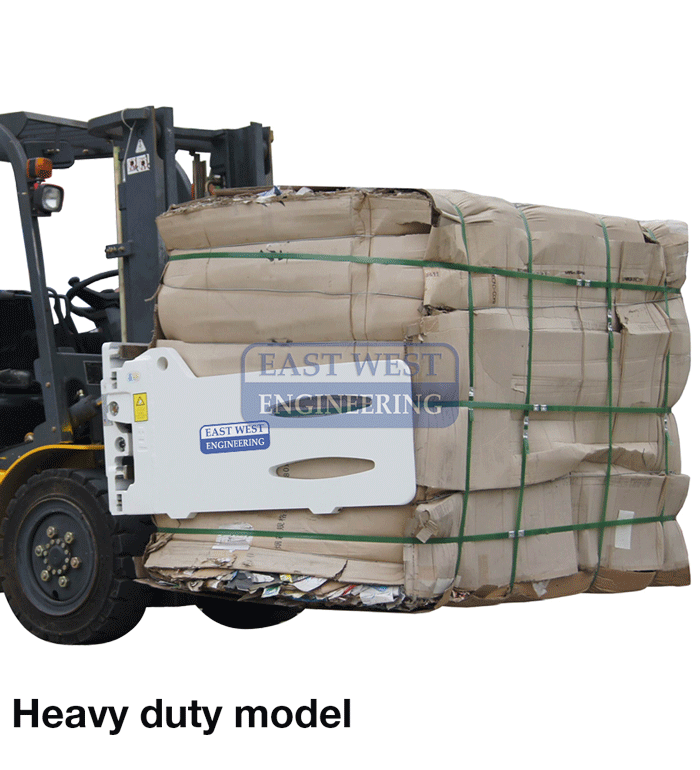

  • Commonly used for handling baled products like waste paper, cotton, wool, textile and metal scrap bales
  • Lateral sliding arm design for smooth clamping and sideshifting function
  • Ribbed arms for secure grip and handling of load
  • Available in a wide range of openings and arm lengths
  • Maximum residual capacity due to minimum weight and lost load
  • Cylinder protection to prevent damage
  • Robust design
  • Sideshift function

• Hoses not included
• Two additional hydraulic circuits required
• Opening range refers to the distance between arm tips
• Sideshift range: +/-100mm
• Please contact the forklift manufacturer for the residual capacity of attachment

Model Description Price (Excl. GST)
Model: RBC20D-B002Description: Bale Clamp - C2, 1040mm widePrice: POA

Add to Quote

Model: RBC20D-B004Description: Bale Clamp - C2, 1040mm widePrice: POA

Add to Quote

Model: RBC20D-B007Description: Bale Clamp - C2, 1600mm widePrice: POA

Add to Quote

Model: RBC22D-C004Description: Bale Clamp - C3, 1600mm widePrice: POA

Add to Quote

Model: RBC28D-C002Description: Bale Clamp - C3, 1016mm widePrice: POA

Add to Quote

Model: RBC28D-C004Description: Bale Clamp - C3, 1200mm widePrice: POA

Add to Quote

Model: RBC28D-C024Description: Bale Clamp - C3, 1600mm widePrice: POA

Add to Quote

Model: RBC28D-C025Description: Bale Clamp - C3, 1615mm widePrice: POA

Add to Quote

Model: RBC30F-C001Description: Bale Clamp - C3, 1265mm widePrice: POA

Add to Quote

Model: RBC35F-C006Description: Bale Clamp - C3, 1820mm widePrice: POA

Add to Quote

Model: RBC50F-D001Description: Bale Clamp - C4, 1600mm widePrice: POA

Add to Quote

ModelCapacity @ LC (kg@mm)Mounting ClassFrame Width (mm)Opening Range (mm)Arm Height (mm)Arm Length (mm)Arm Thickness (mm)Lost Load (mm)HCG (mm)VCG (mm)Unit Weight (kg)
Model: RBC20D-B002Capacity @ LC (kg@mm): 2000@500Mounting Class: IIFrame Width (mm): 1040Opening Range (mm): 450-1730Arm Height (mm): 415Arm Length (mm): 1185Arm Thickness (mm): 80Lost Load (mm): 130HCG (mm): 358VCG (mm): 181Unit Weight (kg): 460
Model: RBC20D-B004Capacity @ LC (kg@mm): 2000@500Mounting Class: IIFrame Width (mm): 1040Opening Range (mm): 450-1740Arm Height (mm): 415Arm Length (mm): 780Arm Thickness (mm): 75Lost Load (mm): 130HCG (mm): 205VCG (mm): 173Unit Weight (kg): 390
Model: RBC20D-B007Capacity @ LC (kg@mm): 2000@500Mounting Class: IIFrame Width (mm): 1600Opening Range (mm): 430-2270Arm Height (mm): 415Arm Length (mm): 1185Arm Thickness (mm): 80Lost Load (mm): 130HCG (mm): 293VCG (mm): 199Unit Weight (kg): 565
Model: RBC22D-C004Capacity @ LC (kg@mm): 2200@500Mounting Class: IIIFrame Width (mm): 1600Opening Range (mm): 490-2330Arm Height (mm): 460Arm Length (mm): 750Arm Thickness (mm): 75Lost Load (mm): 148HCG (mm): 183VCG (mm): 238Unit Weight (kg): 610
Model: RBC28D-C002Capacity @ LC (kg@mm): 2800@500Mounting Class: IIIFrame Width (mm): 1016Opening Range (mm): 570-1920Arm Height (mm): 460Arm Length (mm): 1185Arm Thickness (mm): 80Lost Load (mm): 145HCG (mm): 370VCG (mm): 214Unit Weight (kg): 585
Model: RBC28D-C004Capacity @ LC (kg@mm): 2800@500Mounting Class: IIIFrame Width (mm): 1200Opening Range (mm): 570-2110Arm Height (mm): 460Arm Length (mm): 1185Arm Thickness (mm): 80Lost Load (mm): 145HCG (mm): 361VCG (mm): 215Unit Weight (kg): 620
Model: RBC28D-C024Capacity @ LC (kg@mm): 2800@500Mounting Class: IIIFrame Width (mm): 1600Opening Range (mm): 495-2335Arm Height (mm): 460Arm Length (mm): 750Arm Thickness (mm): 75Lost Load (mm): 145HCG (mm): 184VCG (mm): 237Unit Weight (kg): 610
Model: RBC28D-C025Capacity @ LC (kg@mm): 2800@500Mounting Class: IIIFrame Width (mm): 1615Opening Range (mm): 700-2780Arm Height (mm): 460Arm Length (mm): 1185Arm Thickness (mm): 80Lost Load (mm): 145HCG (mm): 306VCG (mm): 222Unit Weight (kg): 735
Model: RBC30F-C001Capacity @ LC (kg@mm): 3000@500Mounting Class: IIIFrame Width (mm): 1265Opening Range (mm): 750-2100Arm Height (mm): 460Arm Length (mm): 1200Arm Thickness (mm): 85Lost Load (mm): 140HCG (mm): 327VCG (mm): 239Unit Weight (kg): 770
Model: RBC35F-C006Capacity @ LC (kg@mm): 3500@600Mounting Class: IIIFrame Width (mm): 1820Opening Range (mm): 555-2630Arm Height (mm): 460Arm Length (mm): 1000Arm Thickness (mm): 95Lost Load (mm): 162HCG (mm): 240VCG (mm): 264Unit Weight (kg): 1070
Model: RBC50F-D001Capacity @ LC (kg@mm): 5000@600Mounting Class: IVFrame Width (mm): 1650Opening Range (mm): 580-2500Arm Height (mm): 460Arm Length (mm): 1600Arm Thickness (mm): 98Lost Load (mm): 182HCG (mm): 389VCG (mm): 292Unit Weight (kg): 1530
