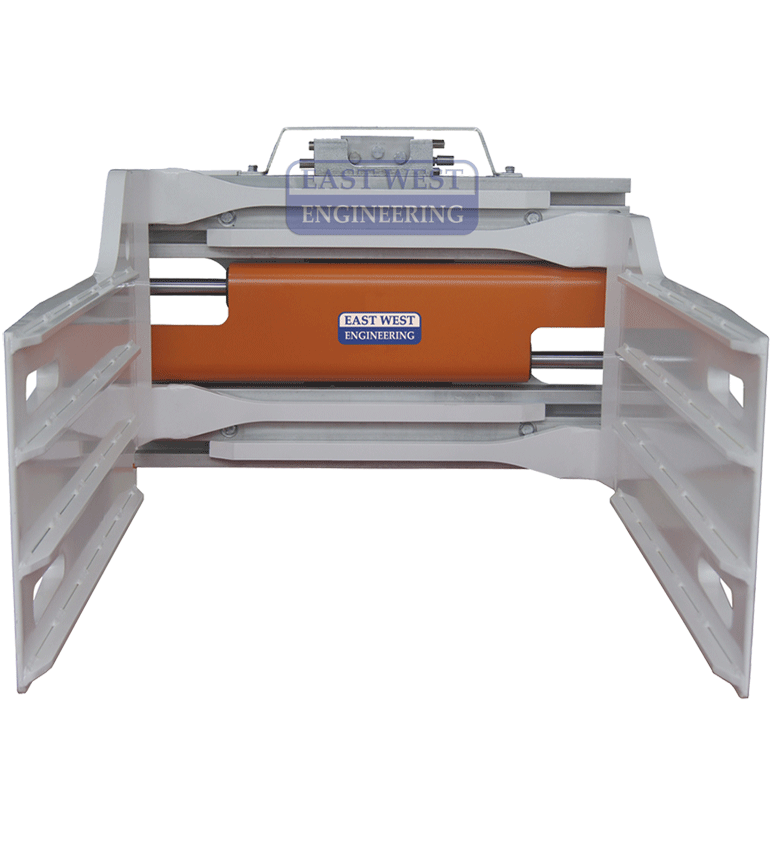

RBC Bale Clamp
RBC Bale Clamp - Image 2
RBC Bale Clamp - Image 3
RBC Bale Clamp - Image 4
RBC Bale Clamp - Image 5

RBC Bale Clamp

The RBC Bale Clamp range is designed to efficiently handle most baled products used in farming and agriculture.  This includes bales of animal feed such as hay or raw materials such as cotton and wool.

FEATURES:
• Enables operator to clamp unpalletised loads
• Enhanced bale clamp includes reinforced structure for heavy duty use
• Commonly used for handling baled products like waste paper, cotton, wool, hay, textile and metal scrap bales
• Lateral sliding arm design for smooth clamping and sideshifting function
• Ribbed arms for secure grip and handling of load
• Available in a wide range of openings and arm lengths
• Maximum residual capacity due to minimum weight and lost load
• Cylinder protection to prevent damage
• Robust design
• Sideshift function
• Wide range of hitches available for fitment to a tractor/loader

View Pricing

NOTE

• Please contact the forklift manufacturer for the residual capacity of attachment
• Two additional hydraulic circuits required
• Opening range refers to the distance between arm tips
• Supplied without hoses
• Further technical details available upon request, please call 1800 061 998

SKU: RBC-AG_Main Categories: , ,
Model Description Price (Excl. GST)
Model: RBC20D-B002Description: Bale Clamp - C2, 1040mm widePrice: POA

Add to Quote

Model: RBC20D-B004Description: Bale Clamp - C2, 1040mm widePrice: POA

Add to Quote

Model: RBC20D-B007Description: Bale Clamp - C2, 1600mm widePrice: POA

Add to Quote

Model: RBC22D-C004Description: Bale Clamp - C3, 1600mm widePrice: POA

Add to Quote

Model: RBC28D-C002Description: Bale Clamp - C3, 1016mm widePrice: POA

Add to Quote

Model: RBC28D-C004Description: Bale Clamp - C3, 1200mm widePrice: POA

Add to Quote

Model: RBC28D-C024Description: Bale Clamp - C3, 1600mm widePrice: POA

Add to Quote

Model: RBC28D-C025Description: Bale Clamp - C3, 1615mm widePrice: POA

Add to Quote

Model: RBC30F-C001Description: Bale Clamp - C3, 1265mm widePrice: POA

Add to Quote

Model: RBC35F-C006Description: Bale Clamp - C3, 1820mm widePrice: POA

Add to Quote

Model: RBC50F-D001Description: Bale Clamp - C4, 1600mm widePrice: POA

Add to Quote

ModelCapacity @ LC (kg@mm)Mounting ClassFrame Width (mm)Opening Range (mm)Arm Height (mm)Arm Length (mm)Arm Thickness (mm)Lost Load (mm)HCG (mm)VCG (mm)Unit Weight (kg)Operation
Model: RBC20D-B002Capacity @ LC (kg@mm): 2000@500Mounting Class: IIFrame Width (mm): 1040Opening Range (mm): 450-1730Arm Height (mm): 415Arm Length (mm): 1185Arm Thickness (mm): 80Lost Load (mm): 130HCG (mm): 358VCG (mm): 181Unit Weight (kg): 460Operation: Clamp
Model: RBC20D-B004Capacity @ LC (kg@mm): 2000@500Mounting Class: IIFrame Width (mm): 1040Opening Range (mm): 450-1740Arm Height (mm): 415Arm Length (mm): 780Arm Thickness (mm): 75Lost Load (mm): 130HCG (mm): 205VCG (mm): 173Unit Weight (kg): 390Operation: Clamp
Model: RBC20D-B007Capacity @ LC (kg@mm): 2000@500Mounting Class: IIFrame Width (mm): 1600Opening Range (mm): 430-2270Arm Height (mm): 415Arm Length (mm): 1185Arm Thickness (mm): 80Lost Load (mm): 130HCG (mm): 293VCG (mm): 199Unit Weight (kg): 565Operation: Clamp
Model: RBC22D-C004Capacity @ LC (kg@mm): 2200@500Mounting Class: IIIFrame Width (mm): 1600Opening Range (mm): 490-2330Arm Height (mm): 460Arm Length (mm): 750Arm Thickness (mm): 75Lost Load (mm): 148HCG (mm): 183VCG (mm): 238Unit Weight (kg): 610Operation: Clamp
Model: RBC28D-C002Capacity @ LC (kg@mm): 2800@500Mounting Class: IIIFrame Width (mm): 1016Opening Range (mm): 570-1920Arm Height (mm): 460Arm Length (mm): 1185Arm Thickness (mm): 80Lost Load (mm): 145HCG (mm): 370VCG (mm): 214Unit Weight (kg): 585Operation: Clamp
Model: RBC28D-C004Capacity @ LC (kg@mm): 2800@500Mounting Class: IIIFrame Width (mm): 1200Opening Range (mm): 570-2110Arm Height (mm): 460Arm Length (mm): 1185Arm Thickness (mm): 80Lost Load (mm): 145HCG (mm): 361VCG (mm): 215Unit Weight (kg): 620Operation: Clamp
Model: RBC28D-C024Capacity @ LC (kg@mm): 2800@500Mounting Class: IIIFrame Width (mm): 1600Opening Range (mm): 495-2335Arm Height (mm): 460Arm Length (mm): 750Arm Thickness (mm): 75Lost Load (mm): 145HCG (mm): 184VCG (mm): 237Unit Weight (kg): 610Operation: Clamp
Model: RBC28D-C025Capacity @ LC (kg@mm): 2800@500Mounting Class: IIIFrame Width (mm): 1615Opening Range (mm): 700-2780Arm Height (mm): 460Arm Length (mm): 1185Arm Thickness (mm): 80Lost Load (mm): 145HCG (mm): 306VCG (mm): 222Unit Weight (kg): 735Operation: Clamp
Model: RBC30F-C001Capacity @ LC (kg@mm): 3000@500Mounting Class: IIIFrame Width (mm): 1265Opening Range (mm): 750-2100Arm Height (mm): 460Arm Length (mm): 1200Arm Thickness (mm): 85Lost Load (mm): 140HCG (mm): 327VCG (mm): 239Unit Weight (kg): 770Operation: Clamp
Model: RBC35F-C006Capacity @ LC (kg@mm): 3500@600Mounting Class: IIIFrame Width (mm): 1820Opening Range (mm): 555-2630Arm Height (mm): 460Arm Length (mm): 1000Arm Thickness (mm): 95Lost Load (mm): 162HCG (mm): 240VCG (mm): 264Unit Weight (kg): 1070Operation: Clamp
Model: RBC50F-D001Capacity @ LC (kg@mm): 5000@600Mounting Class: IVFrame Width (mm): 1650Opening Range (mm): 580-2500Arm Height (mm): 460Arm Length (mm): 1600Arm Thickness (mm): 98Lost Load (mm): 182HCG (mm): 389VCG (mm): 292Unit Weight (kg): 1530Operation: Clamp
? Two additional hydraulic circuits required
? Opening range refers to the distance between arm tips
? Sideshift range: +/-100mm
? Hoses not included
? Please contact the forklift manufacturer for the residual capacity of attachment
