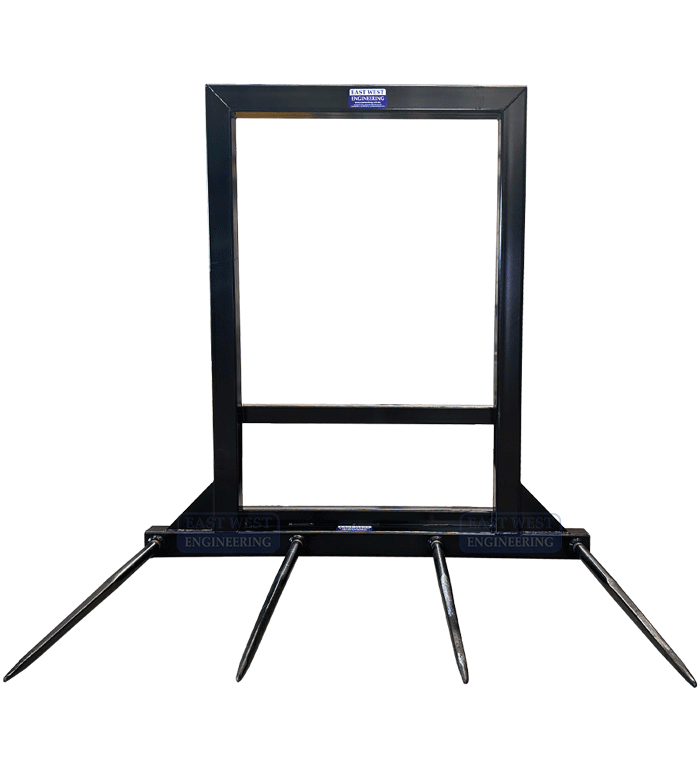

QVB4 QH Bale Spear Attachment
QVB4 QH Bale Spear Attachment - Image 2
QVB4 QH Bale Spear Attachment - Image 3

QVB4 QH Bale Spear Attachment

Price range: $1,530.00 through $2,130.00

The QVB4 QH Bale Spear Attachment is designed for the safe and easy handling of bales and is suitable for use with most machinery.

FEATURES:

  • Ideal for picking up multiple hay bales (round & square) with minimal effort
  • Available without hitch (blank) or in models to suit Forklift, Euro, 3PL, Skid steer, Burder or Challenge fitment
  • 4 removable bale spears supplied
  • Spears taper for easier penetration and removal from the bales
  • Made of high tensile steel for strength and durability
View Pricing

SKU: QVB4_Main Categories: , , ,
Model Description Price (Excl. GST)
Model: QVB4Description: QH Bale Spear Attachment - BLANKPrice: $1,530.00

Add to Quote

Model: QVB4-3PLDescription: BALE SPEAR ATTACHMENT + 3 POINT LINKAGEPrice: $2,130.00

Add to Quote

Model: QVB4-BHLDescription: BALE SPEAR ATTACHMENT + BURDER HITCH LARGEPrice: $2,050.00

Add to Quote

Model: QVB4-BHSDescription: BALE SPEAR ATTACHMENT + BURDER HITCH SMALLPrice: $1,920.00

Add to Quote

Model: QVB4-CHDescription: BALE SPEAR ATTACHMENT + CHALLENGE HITCHPrice: $1,920.00

Add to Quote

Model: QVB4-EUDescription: BALE SPEAR ATTACHMENT + EURO HITCHPrice: $1,890.00

Add to Quote

Model: QVB4-FCQR2Description: BALE SPEAR ATTACHMENT + CLASS 2 QUICK RELEASEPrice: $2,020.00

Add to Quote

Model: QVB4-FCQR3Description: BALE SPEAR ATTACHMENT + CLASS 3 QUICK RELEASEPrice: $2,130.00

Add to Quote

Model: QVB4-SSDescription: BALE SPEAR ATTACHMENT + SKID STEER HITCHPrice: $1,910.00

Add to Quote

ModelWorking Load Limit (WLL) kgLoad Centre (mm)Spear Dimensions (mm)Sleeve SizeO/A Dimensions (mm)Unit Weight (kg)MaterialTo SuitFinishSupplied
Model: QVB4Working Load Limit (WLL) kg: 1600Load Centre (mm): 500Spear Dimensions (mm): ?45 x 1100 clear lengthSleeve Size: Conus IIO/A Dimensions (mm): 1800(l) x 1300(w) x 1800(h)Unit Weight (kg): 149Material: High tensile steelTo Suit: BlankFinish: Supplied:
Model: QVB4-3PLWorking Load Limit (WLL) kg: 1600Load Centre (mm): 500Spear Dimensions (mm): ?45 x 1100 clear lengthSleeve Size: Conus IIO/A Dimensions (mm): 1800(l) x 1300(w) x 1800(h)Unit Weight (kg): 177Material: High tensile steelTo Suit: Cat. 2, 3PLFinish: Enamel paintSupplied: Flatpack
Model: QVB4-BHLWorking Load Limit (WLL) kg: 1600Load Centre (mm): 500Spear Dimensions (mm): ?45 x 1100 clear lengthSleeve Size: Conus IIO/A Dimensions (mm): 1800(l) x 1300(w) x 1800(h)Unit Weight (kg): 169Material: High tensile steelTo Suit: Burder Large HitchFinish: Enamel paintSupplied: Flatpack
Model: QVB4-BHSWorking Load Limit (WLL) kg: 1600Load Centre (mm): 500Spear Dimensions (mm): ?45 x 1100 clear lengthSleeve Size: Conus IIO/A Dimensions (mm): 1800(l) x 1300(w) x 1800(h)Unit Weight (kg): 161Material: High tensile steelTo Suit: Burder Small HitchFinish: Enamel paintSupplied: Flatpack
Model: QVB4-CHWorking Load Limit (WLL) kg: 1600Load Centre (mm): 500Spear Dimensions (mm): ?45 x 1100 clear lengthSleeve Size: Conus IIO/A Dimensions (mm): 1800(l) x 1300(w) x 1800(h)Unit Weight (kg): 161Material: High tensile steelTo Suit: Challenge HitchFinish: Enamel paintSupplied: Flatpack
Model: QVB4-EUWorking Load Limit (WLL) kg: 1600Load Centre (mm): 500Spear Dimensions (mm): ?45 x 1100 clear lengthSleeve Size: Conus IIO/A Dimensions (mm): 1800(l) x 1300(w) x 1800(h)Unit Weight (kg): 161Material: High tensile steelTo Suit: Euro HitchFinish: Enamel paintSupplied: Flatpack
Model: QVB4-FCQR2Working Load Limit (WLL) kg: 1600Load Centre (mm): 500Spear Dimensions (mm): ?45 x 1100 clear lengthSleeve Size: Conus IIO/A Dimensions (mm): 1800(l) x 1300(w) x 1800(h)Unit Weight (kg): 171Material: High tensile steelTo Suit: Forklift, Class 2Finish: Enamel paintSupplied: Flatpack
Model: QVB4-FCQR3Working Load Limit (WLL) kg: 1600Load Centre (mm): 500Spear Dimensions (mm): ?45 x 1100 clear lengthSleeve Size: Conus IIO/A Dimensions (mm): 1800(l) x 1300(w) x 1800(h)Unit Weight (kg): 181Material: High tensile steelTo Suit: Forklift, Class 3Finish: Enamel paintSupplied: Flatpack
Model: QVB4-SSWorking Load Limit (WLL) kg: 1600Load Centre (mm): 500Spear Dimensions (mm): ?45 x 1100 clear lengthSleeve Size: Conus IIO/A Dimensions (mm): 1800(l) x 1300(w) x 1800(h)Unit Weight (kg): 168Material: High tensile steelTo Suit: Skid SteerFinish: Enamel paintSupplied: Flatpack
