CSD Self Dumping Bin

The CSD Self Dumping Bin is an economical solution for most waste handling applications designed to allow emptying by forklift or overhead crane. Being a nesting bin, it uses minimum space during transport and storage.

FEATURES:
• Suitable for use with forklift or overhead crane
• Supplied standard with 4 crane lugs and upending lugs
• Self dumping mechanism allows the operator to safely activate tipping cycle from driver’s seat
• Fork pockets and safety chain for quick connection to a forklift

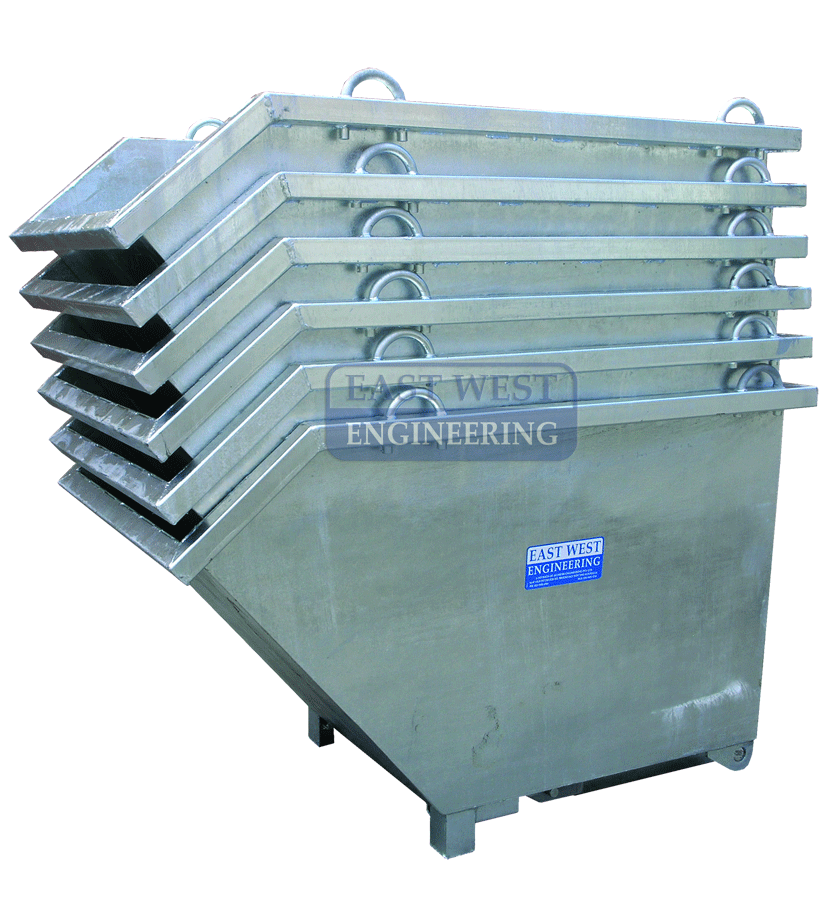

• Nesting bin design to save space when not in use
• Fitted with drain plug and wheel brackets (wheels not supplied unless ordered)
• Optional wheel kit available for supply on request
• Galvanised finish

Compare

To empty, the operator catches the bin on the edge of the bulk container and reverses the forklift. When the tines clear the pivot point, raising the bin will permit a complete discharge of contents.

Due to transport safety requirements wheels are no longer pre-fitted. If ordered, optional wheel kits are supplied for fitment onsite, not fitted.

Model	Description	Price (Excl. GST)
Model: CSD12-G	Description: Self Dumping Bin - 1.25cu.m	Price: $2,110.00	Compare Product	Add to Quote
Model: CSD18-G	Description: Self Dumping Bin - 1.85cu.m	Price: $2,790.00	Compare Product	Add to Quote
Model: CSD9-G	Description: Self Dumping Bin - 0.95cu.m	Price: $1,860.00	Compare Product	Add to Quote

Model	Working Load Limit (WLL) kg	Capacity (cu.m)	Bin Length (mm)	Bin Width (mm)	Bin Height (mm)	Inside Width (mm)	O/A Dimensions (mm)	Fork Pocket Size (mm)	Fork Pocket Centres (mm)	Unit Weight (kg)	Optional Wheel Kit Part #	Operation	Finish
Model: CSD12-G	Working Load Limit (WLL) kg: 1500	Capacity (cu.m): 1.25	Bin Length (mm): 1570	Bin Width (mm): 1310	Bin Height (mm): 1010	Inside Width (mm): 1200	O/A Dimensions (mm): 1310(w) x 1570(l) x 1070(h)	Fork Pocket Size (mm): 185 x 75	Fork Pocket Centres (mm): 630	Unit Weight (kg): 205	Optional Wheel Kit Part #: SC60011-005	Operation: Self dumping mechanism	Finish: Galvanised
Model: CSD18-G	Working Load Limit (WLL) kg: 1500	Capacity (cu.m): 1.85	Bin Length (mm): 1570	Bin Width (mm): 1910	Bin Height (mm): 1010	Inside Width (mm): 1800	O/A Dimensions (mm): 1910(w) x 1570(l) x 1070(h)	Fork Pocket Size (mm): 185 x 75	Fork Pocket Centres (mm): 630	Unit Weight (kg): 245	Optional Wheel Kit Part #: SC60006-004	Operation: Self dumping mechanism	Finish: Galvanised
Model: CSD9-G	Working Load Limit (WLL) kg: 1500	Capacity (cu.m): 0.95	Bin Length (mm): 1570	Bin Width (mm): 1010	Bin Height (mm): 1010	Inside Width (mm): 900	O/A Dimensions (mm): 1010(w) x 1570(l) x 1070(h)	Fork Pocket Size (mm): 185 x 75	Fork Pocket Centres (mm): 340	Unit Weight (kg): 180	Optional Wheel Kit Part #: SC60011-005	Operation: Self dumping mechanism	Finish: Galvanised
