| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
| Model: BKN130 | Description: Floor Mount Box Tipper | Price: $12,390.00 | ||
Mega bin not included, shown for illustrative purposes only
BKN130 Floor Mounted Mega Bin Tipper
$12,390.00
The BKN130 Floor Mounted Mega Bin Tipper with stainless steel chute is designed to allow the effortless tipping of nally bins.
FEATURES:
- Allows for 130 degree rotation of a nally bin
- Operated by hydraulic lever
- Stainless chute guides material flow
- Designed with removable side safety barriers, upper barrier removable
- Suitable for forklift or hand pallet jack bin loading
- Hydraulic power pack, 240-volt, 2.2kw
- Bin retainers secure mega bin in position during rotation
- Tipping height approx. 1100mm above floor
- 42 second full tipping cycle
- Suitable for use in food industry

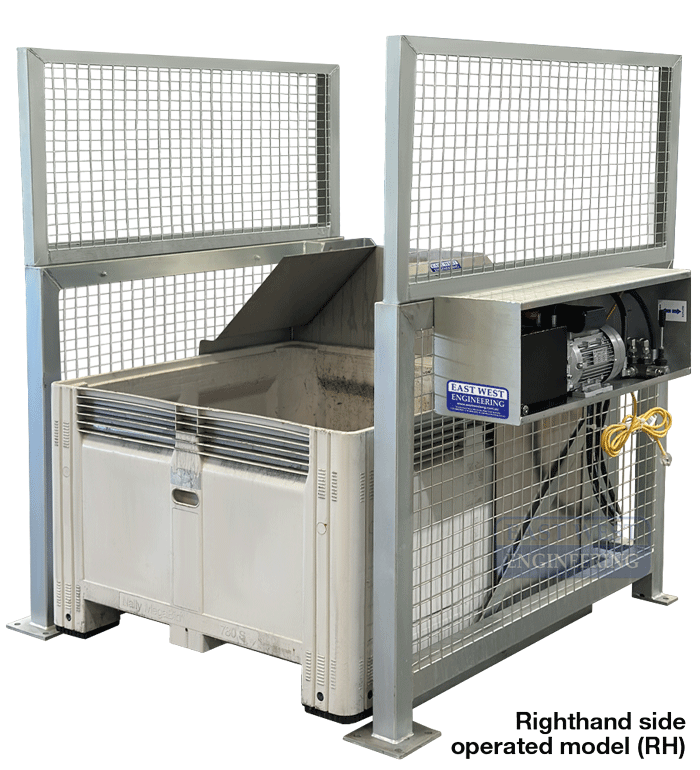

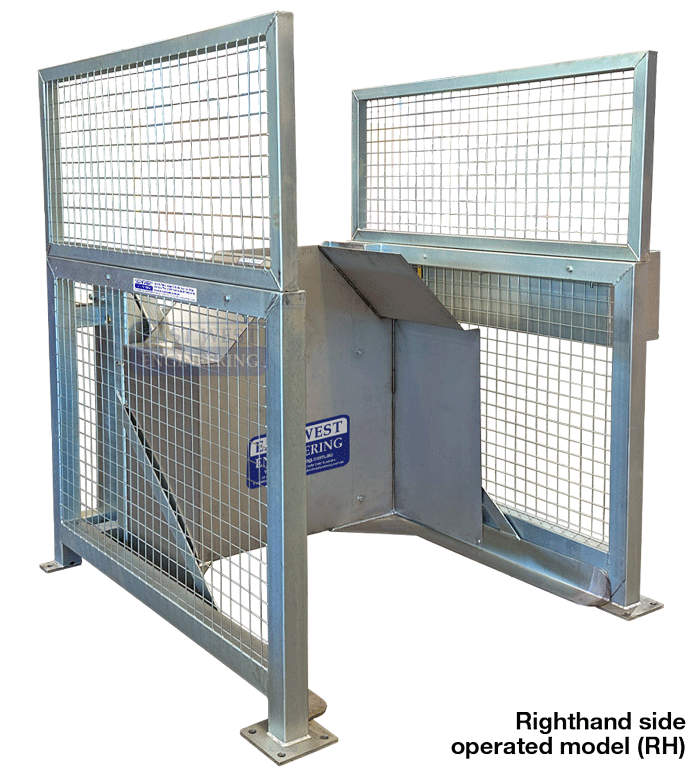

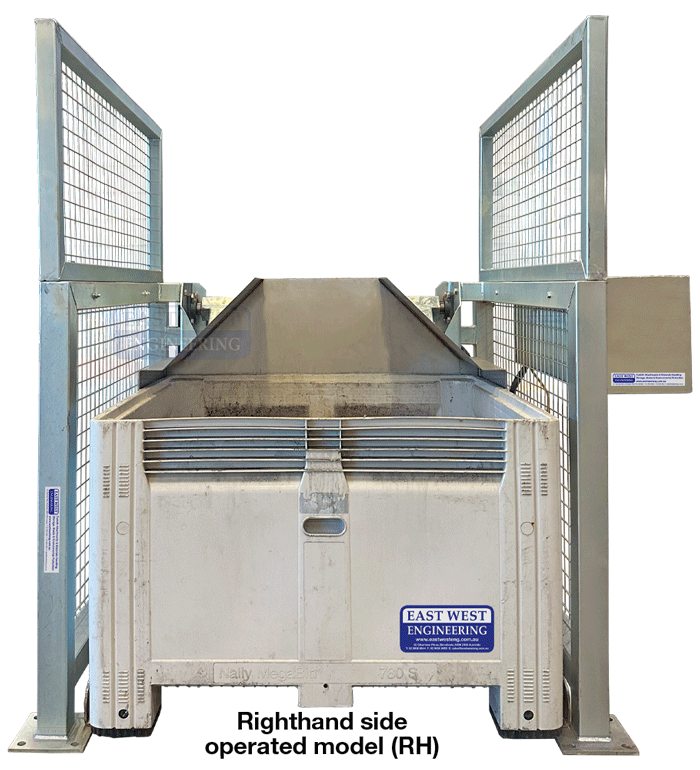

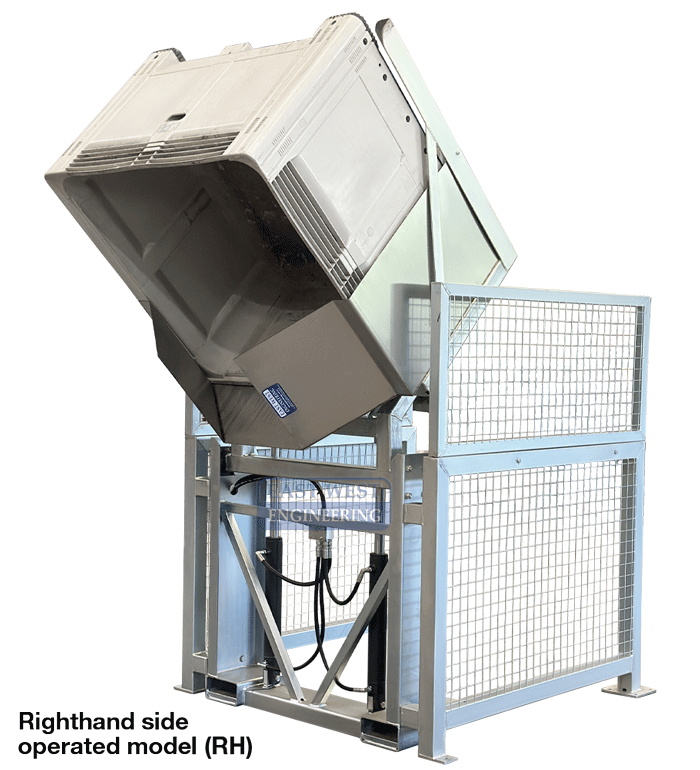

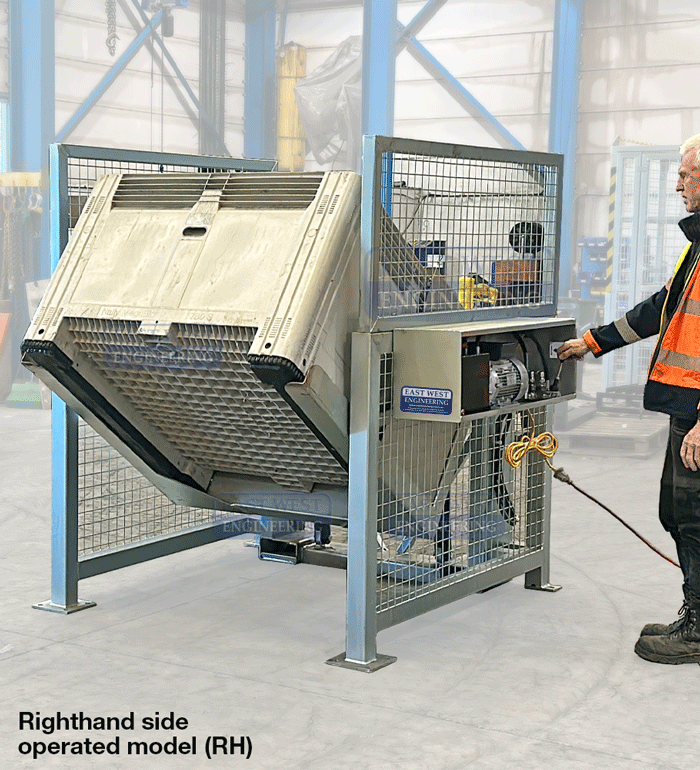

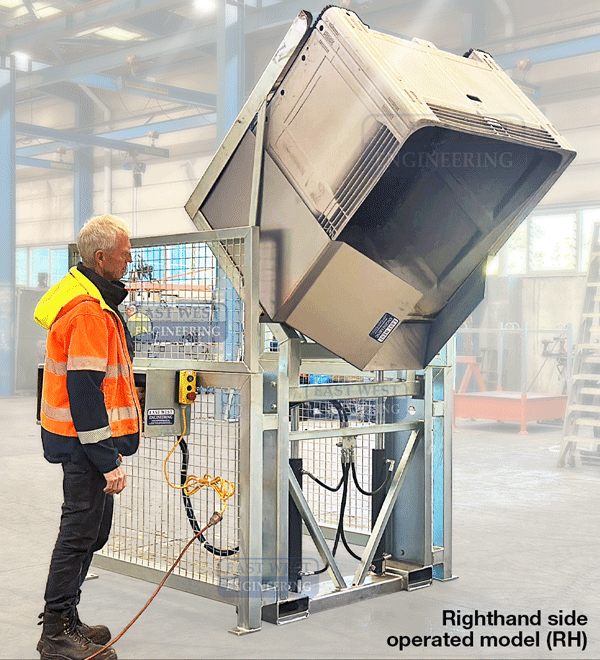

- Control box fitted standard on lefthand side; righthand (RH) coperation also available
- 304 Stainless steel chute & frame
| Model | Working Load Limit (WLL) kg | Rotation | Tipping Height (mm) | Tipping Cycle | O/A Dimensions (mm) | Dimensions at full rotation (mm) | Unit Weight (kg) | To Suit | Finish |
|---|---|---|---|---|---|---|---|---|---|
| Model: BKN130 | Working Load Limit (WLL) kg: 1000 | Rotation: 130ø | Tipping Height (mm): 1100 | Tipping Cycle: 42 sec | O/A Dimensions (mm): 1745 x 1555 x 1400 | Dimensions at full rotation (mm): 1745 x 2155 x 2670 | Unit Weight (kg): 550 | To Suit: Mega bins | Finish: Zinc frame, 304 Stainless chute |
