Price range: $330.00 through $1,190.00

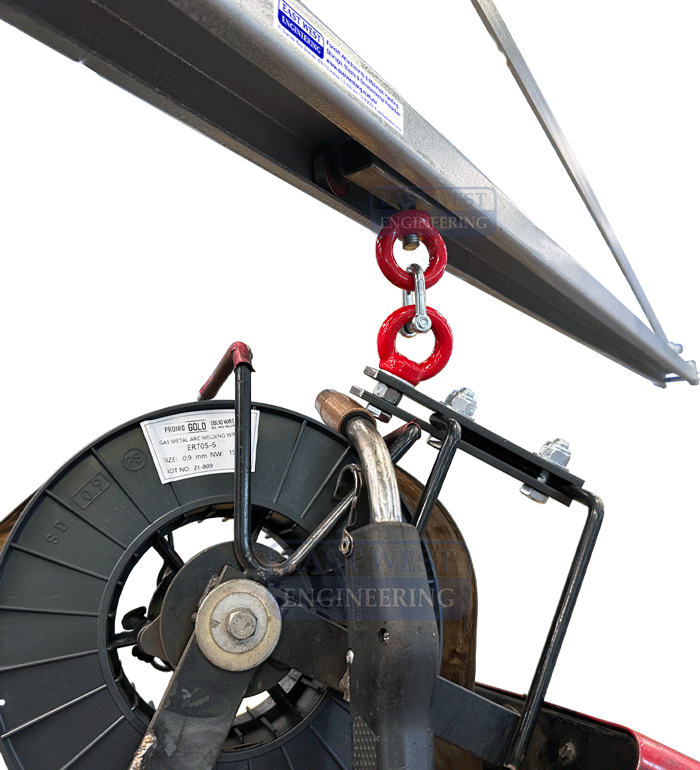

The AWH30 Welding Boom is designed to increase welding productivity and safety by extending coverage of the welding area and removing trip hazards and floor clutter.
FEATURES:
Supplied part assembled for simple on-site installation
Wire feeder and welding equipment not included
Optional base (AW-BASE) is for use with the AW-POST
| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
| Model: AWH30 | Description: Welding Boom | Price: $750.00 | ||
| Model: AW-POST | Description: Optional Welding Boom Post | Price: $1,190.00 | ||
| Model: AW-BASE | Description: Optional Welding Boom Base | Price: $1,170.00 | ||
| Model: SC60006-006 | Description: Optional Wheel Kit (4 Swivel with brakes) 150mm DIA, PU/CI | Price: $330.00 | ||
| Model | Working Load Limit (WLL) kg | Load Centre (mm) | Height (mm) | Boom Dimensions (mm) | Trolley Range (mm) | Arm Rotation | O/A Dimensions (mm) | Fork Pocket Size (mm) | Fork Pocket Centres (mm) | Unit Weight (kg) | To Suit | Finish | Supplied |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model: AWH30 | Working Load Limit (WLL) kg: 50 | Load Centre (mm): | Height (mm): | Boom Dimensions (mm): 3115(L) x 155(w) x 680(H) | Trolley Range (mm): 2800 | Arm Rotation: 180ø bi-directional | O/A Dimensions (mm): | Fork Pocket Size (mm): | Fork Pocket Centres (mm): | Unit Weight (kg): 32 | To Suit: Welding | Finish: Enamel Paint | Supplied: Flatpack |
| Model: AW-POST | Working Load Limit (WLL) kg: 50 | Load Centre (mm): 3500 | Height (mm): 2670 | Boom Dimensions (mm): | Trolley Range (mm): | Arm Rotation: | O/A Dimensions (mm): 750(w) x 300(d) x 2670(h) | Fork Pocket Size (mm): | Fork Pocket Centres (mm): | Unit Weight (kg): 95 | To Suit: AWB36, AWH30 | Finish: Enamel Paint | Supplied: Flatpack |
| Model: AW-BASE | Working Load Limit (WLL) kg: | Load Centre (mm): | Height (mm): | Boom Dimensions (mm): | Trolley Range (mm): | Arm Rotation: | O/A Dimensions (mm): 1470 x 1470 x 140 | Fork Pocket Size (mm): 140 x 90 | Fork Pocket Centres (mm): 450 | Unit Weight (kg): 115 | To Suit: AWH30 | Finish: | Supplied: |
| Model: SC60006-006 | Working Load Limit (WLL) kg: | Load Centre (mm): | Height (mm): | Boom Dimensions (mm): | Trolley Range (mm): | Arm Rotation: | O/A Dimensions (mm): | Fork Pocket Size (mm): | Fork Pocket Centres (mm): | Unit Weight (kg): | To Suit: | Finish: | Supplied: |
