| Model | Description | Price (Excl. GST) | ||
|---|---|---|---|---|
Model:  APV100 | Description: Pipe Trolley -1T | Price: $1,130.00 | ||
| Model: APV200 | Description: Pipe Trolley -2T | Price: $1,510.00 | ||
Due to transport safety requirements wheels are supplied for fitment onsite, not pre-fit.

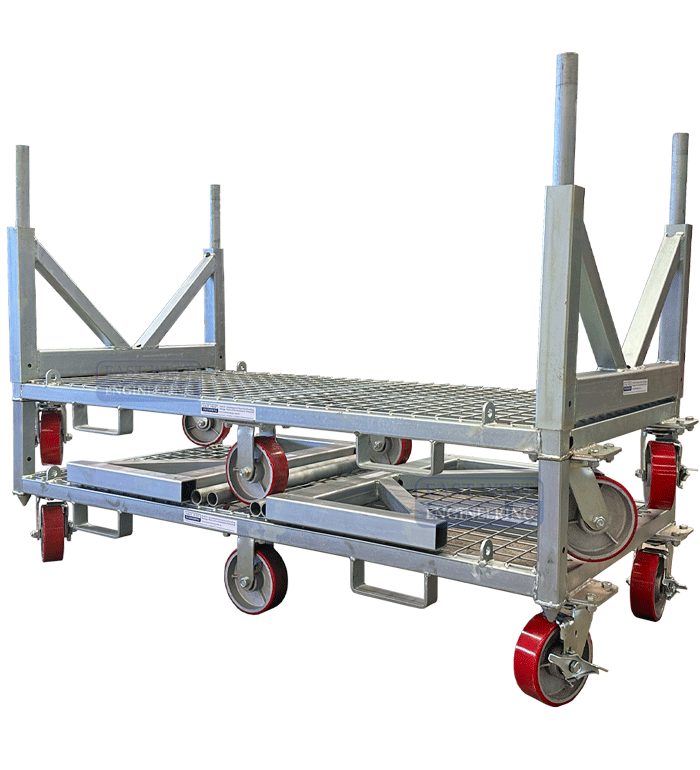

APV100 Pipe Trolley
Price range: $1,130.00 through $1,510.00
The APV100 Pipe Trolley is designed to safely store and transport long length materials such as pipe, scaffolding and conduit on site and is sized to fit through a standard doorway. This mobile storage solution increases worker productivity by keeping materials organised and close to work areas.
FEATURES:
- 1 tonne capacity
- Suitable to store and transport long materials such as pipe, scaffolding, conduit, tubing & bar stock
- Designed to fit through a standard doorframe for carting of loads on-site
- Removable V frame for alternative loading requirements
- Removable corner posts supplied to suit higher load sizes
- 6 industrial 150mm poly/cast wheels with brakes for easy manoeuvring around the worksite
- Also available in all terrain model (APV100-AT) for use on rough, uneven ground
- Fork stirrups allow loaded trolley to be transported around site by forklift
- 4 tie down points for securing load
- Heavy duty construction for maximum stability
- Zinc finish
Supplied standard as flatpack (for on-site assembly)
| Model | Working Load Limit (WLL) kg | Wheels | O/A Dimensions (mm) | Fork Stirrup Size (mm) | Fork Stirrup Centres (mm) | Unit Weight (kg) | To Suit | Finish | Supplied |
|---|---|---|---|---|---|---|---|---|---|
| Model: APV100 | Working Load Limit (WLL) kg: 1000 | Wheels: 6 x 150mm poly/cast wheels | O/A Dimensions (mm): 1640(l) x 760(w) x 640(h) | Fork Stirrup Size (mm): 155 x 55 | Fork Stirrup Centres (mm): 850 | Unit Weight (kg): 85 | To Suit: Long materials | Finish: Zinc | Supplied: Flatpack |
| Model: APV200 | Working Load Limit (WLL) kg: 2000 | Wheels: 6 x 150mm poly/cast wheels | O/A Dimensions (mm): 1930(l) x 1050(w) x 725h) | Fork Stirrup Size (mm): 155 x 55 | Fork Stirrup Centres (mm): 850 | Unit Weight (kg): 100 | To Suit: Long materials | Finish: Zinc | Supplied: Flatpack |
* Unit weight includes V-Frame + Corner Posts
** Overall dimensions is excluding removable corner posts (shown in picture)
** Overall dimensions is excluding removable corner posts (shown in picture)
