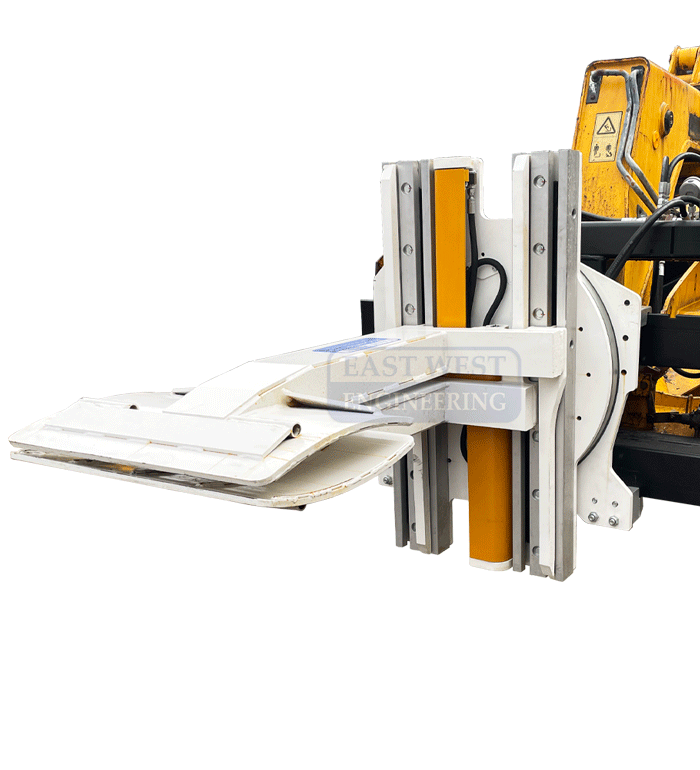

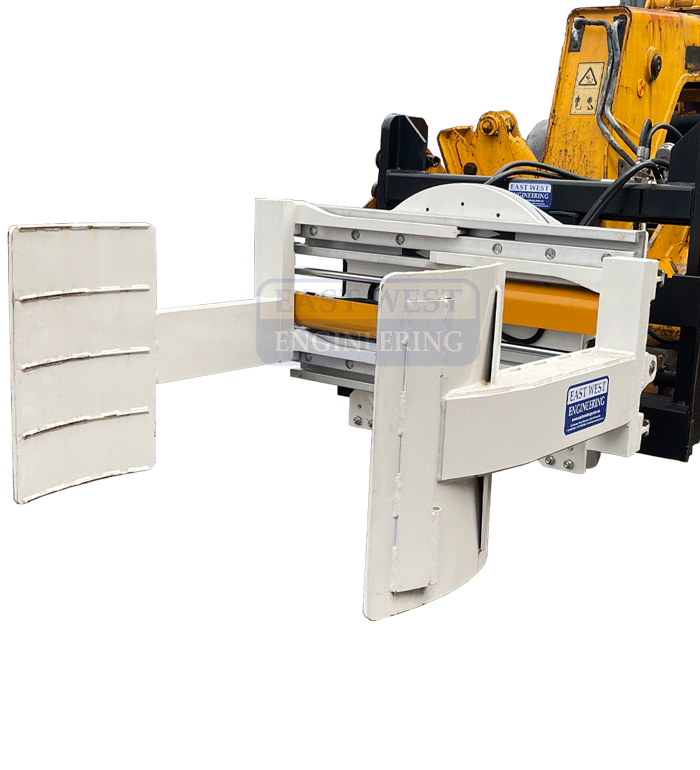

FRPS140 Rotating Pole Setter

Add to Favourites

Quick Overview

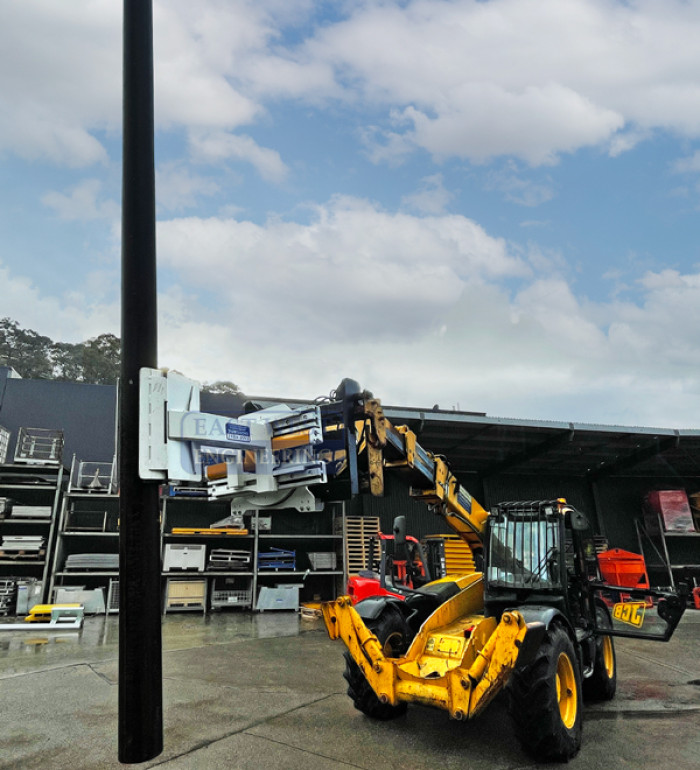

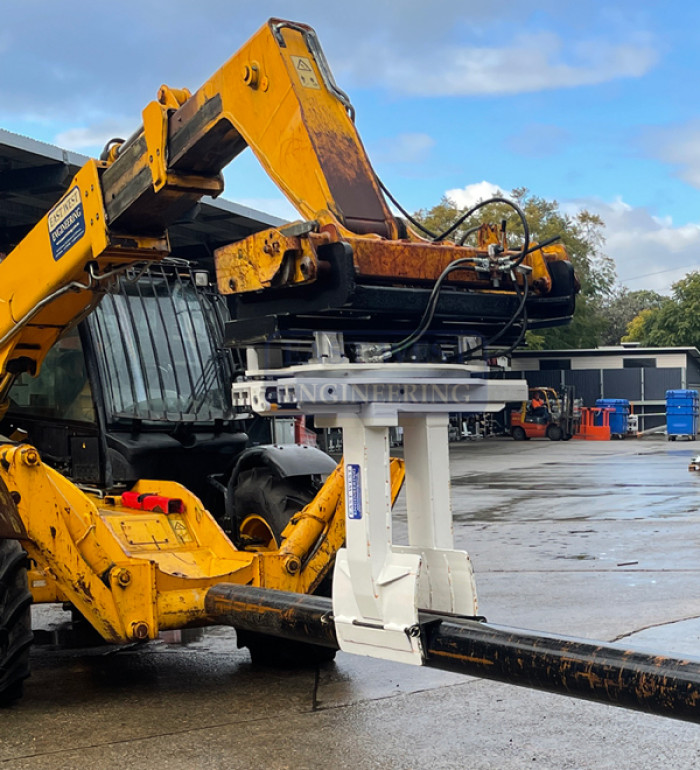

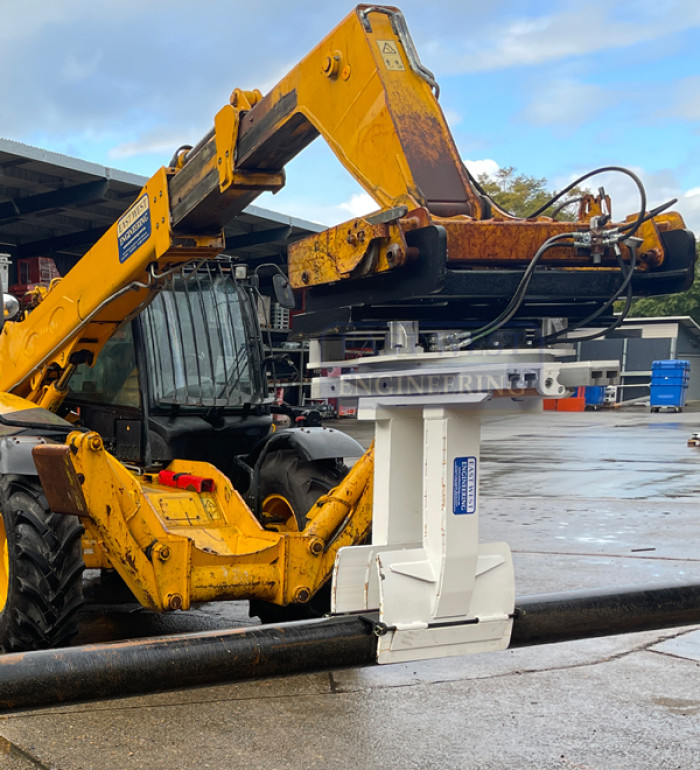

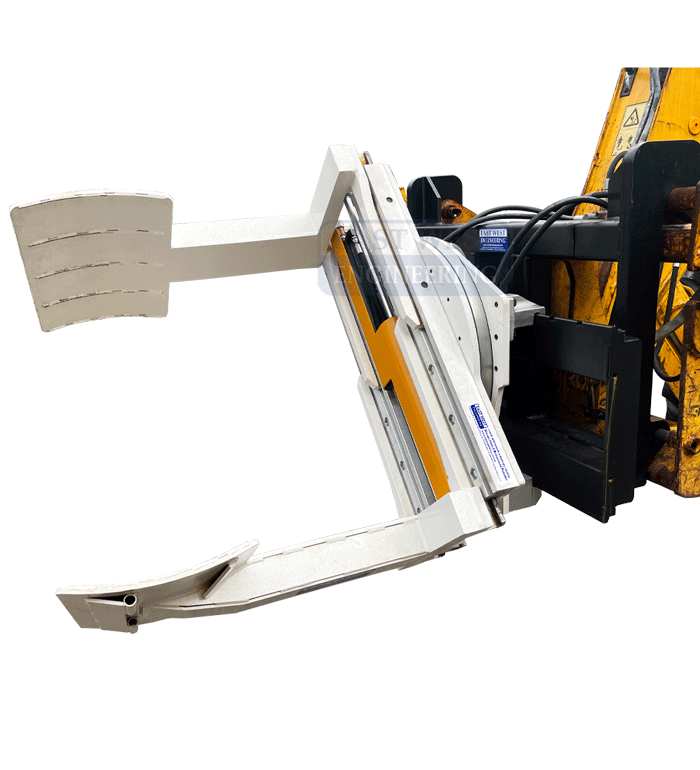

The FRPS140 Rotating Pole Setter is designed to safely pickup, rotate into position and place a pole, pipe, post, bale or tyre. Suitable for a variety of applications, this unit is ideal for use in post frame construction and setting of utility poles and fencing.

FEATURES:
• Used to safely handle a post, pipe, pole, bale or tyre
• Clamp and 360 degree rotation functionality
• Fitted standard with a Class 3 mounting
• Optional Quick Hitch Rotator Adaptor (QHRA3) or Carriage Adaptor (QHCA3) available for fitment to a telehandler, loader or tractor
• 2 hydraulic functions required
• Optional manual diverter valve (FRPS-EFD) for trucks with a single hydraulic function available

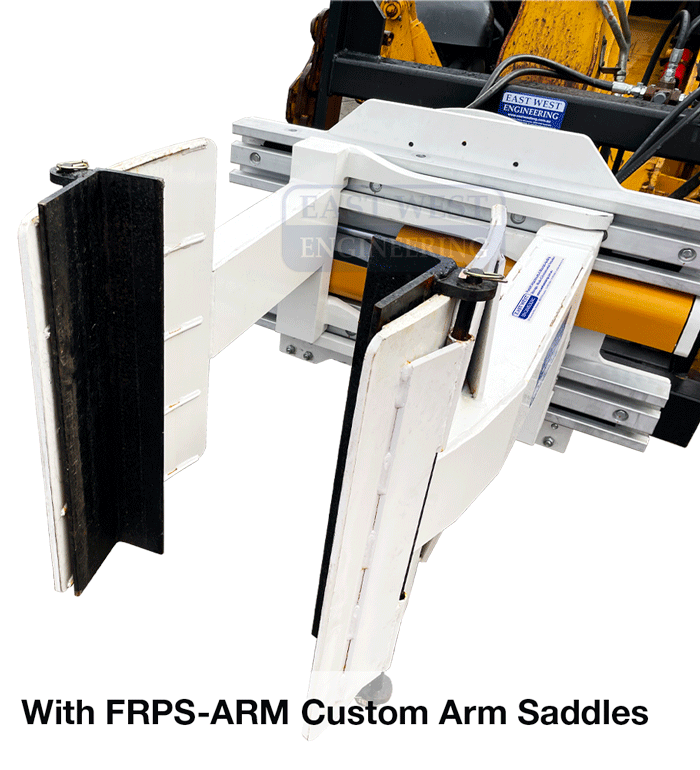

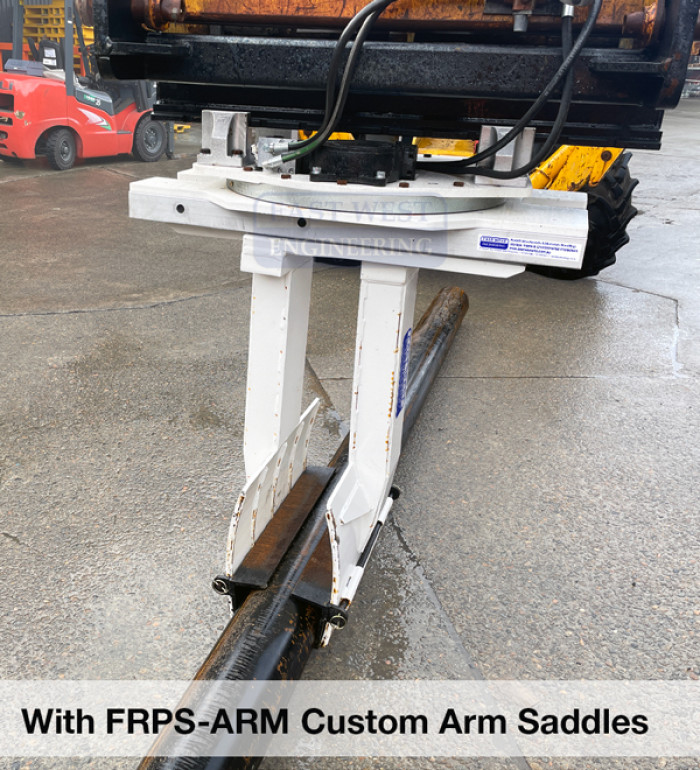

• Optional customised arm saddles (FRPS-ARM) available on request for enahanced load grip
• Increases safety and productivity on your job site
• Eliminates the need for cranes, slings or manual handling
• Available in other arm sizes and opening ranges on request
• Enamel paint finish

2 hydraulic functions required. Check compatibility with your truck manufacturer.

Details

	Working Load Limit (WLL)	1400kg @ 500mm LC
	Mounting Class	III
	Carriage Width	1100mm
	Opening Range	90-1090mm
	Arm Dimensions	1020(L) x 660(H) mm
	Unit Weight	590kg

Features

Model	Description	Lead Time (days)	Price (excl GST)
FRPS140	ROTATING POLE SETTER	0	Please Call

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
