Quick Overview

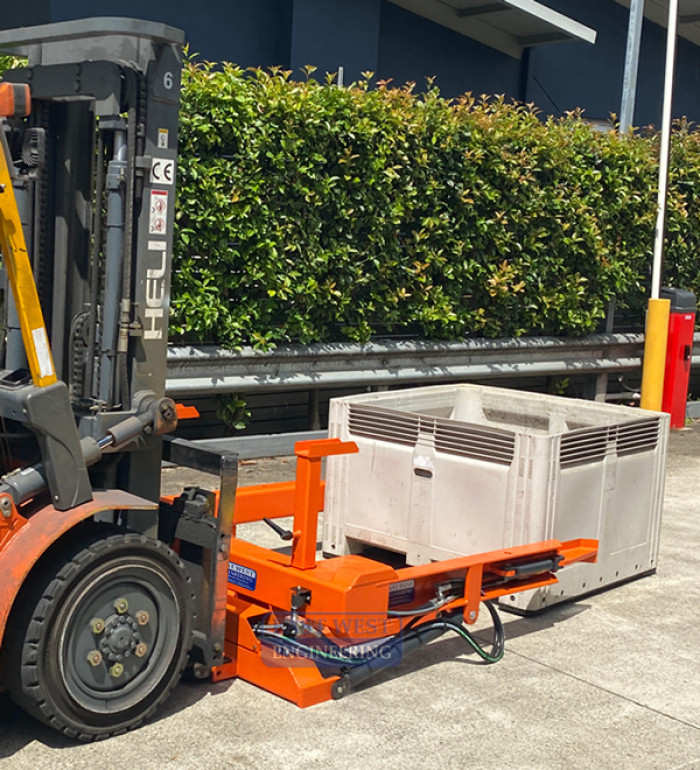

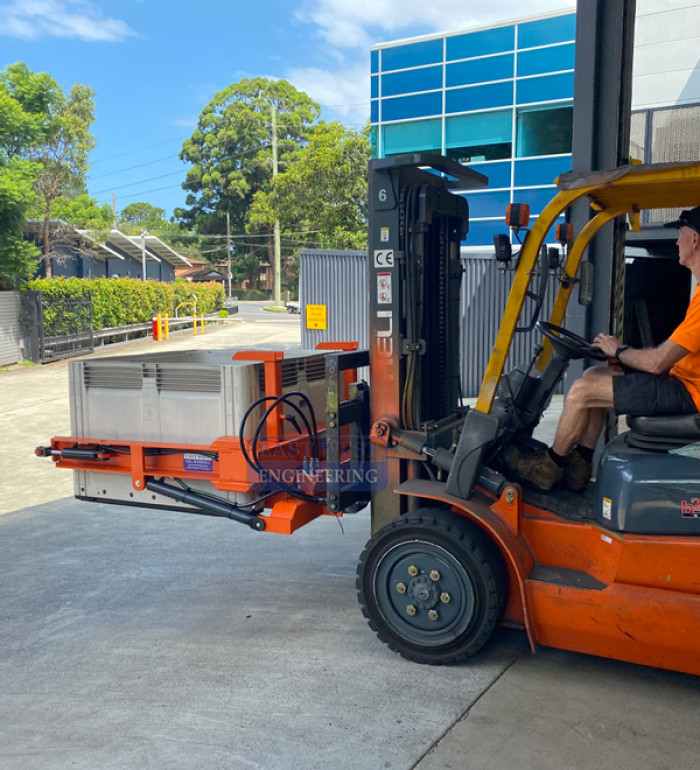

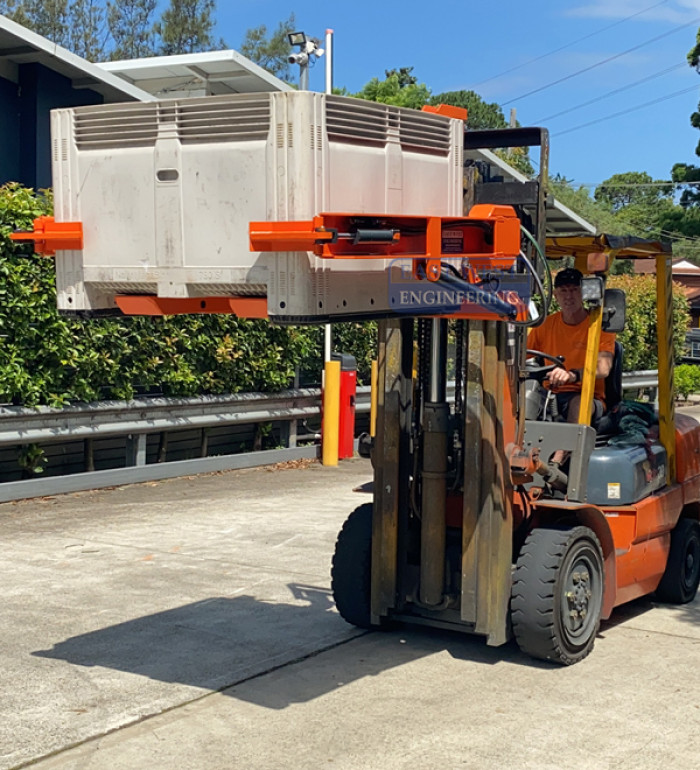

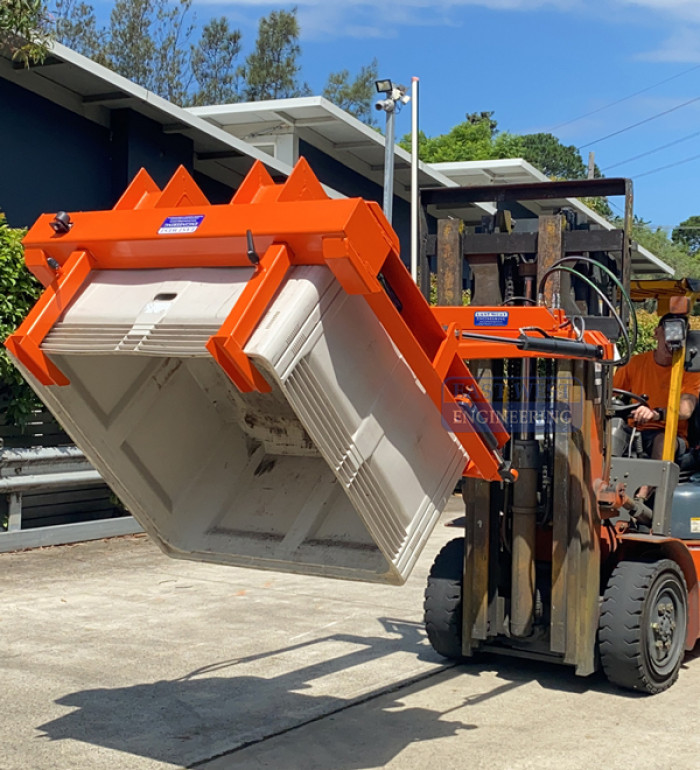

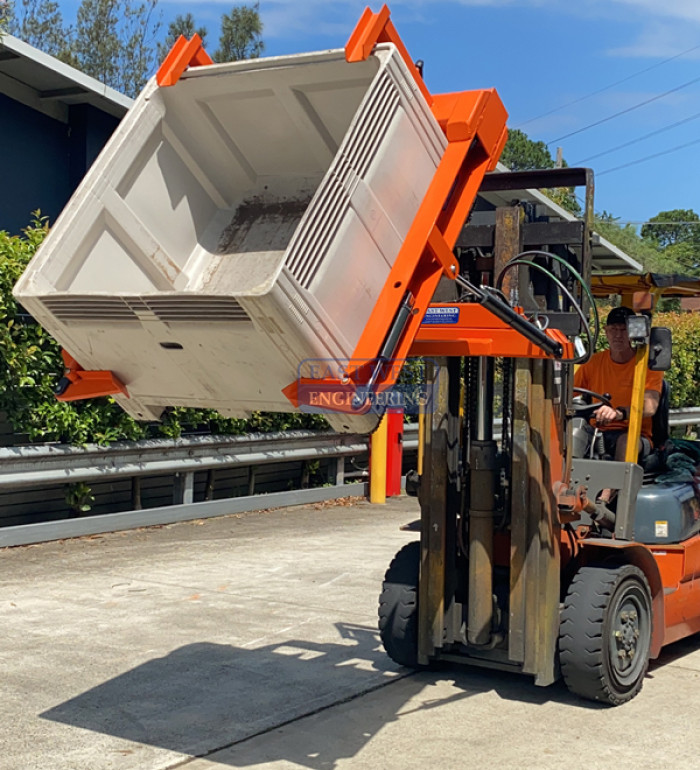

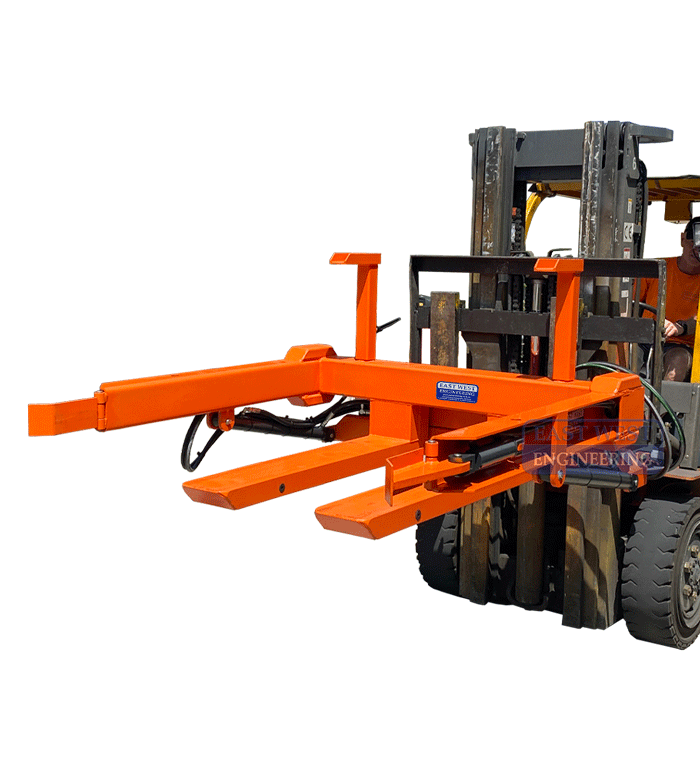

The FBT-SM & FBT-FH Hydraulic Forward Bulk Bin Tippers are designed for handling and tipping mega bins, timber produce bins or similar, full or empty.

FEATURES:
• Suits bins up to 1200mm square, with a height range of 700-900mm
• FBT-SM includes a hydraulic sequence valve reducing the risk of dropping the bin as rotation only commences after bin is clamped
• FBT-FH is best suited for fast and high-volume tipping
• Wide clamp arms limit bin damage
• Slip-on attachment allows quick connection to a forklift
• Ideal for use in the fresh produce industry
• Enamel paint finish

* Type FBT-SM requires one hydraulic function
* Type FBT-FH requires two hydraulic functions

Details

 Working Load Limit (WLL)  1000kg
 Rotation Angle  124°
 Unit Weight  350kg
 Fork Pocket Size  155 x 55mm
 Fork Pocket Centres  540mm

Features

Model Description Price
(excl GST)
FBT-SM Fitted with sequencing valve, requires 3rd hydraulic function only
$8,980.00
FBT-FH Requires 3rd & 4th auxilary hydraulic functions from the forklift
$7,880.00
* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
