CCD Machinery Lifting Platform

Add to Favourites

Quick Overview

The heavy duty CCD Machinery Lifting Platform is designed to safely lift machinery, vehicles, equipment and other heavy or oversized loads by crane. Also ideal for use as a helicopter transport deck.

FEATURES:
• Allows easy transport and loading of machinery, vehicles, heavy equipment and other heavy or oversized loads
• Dual ramped ends allow easy drive-on, drive-off access

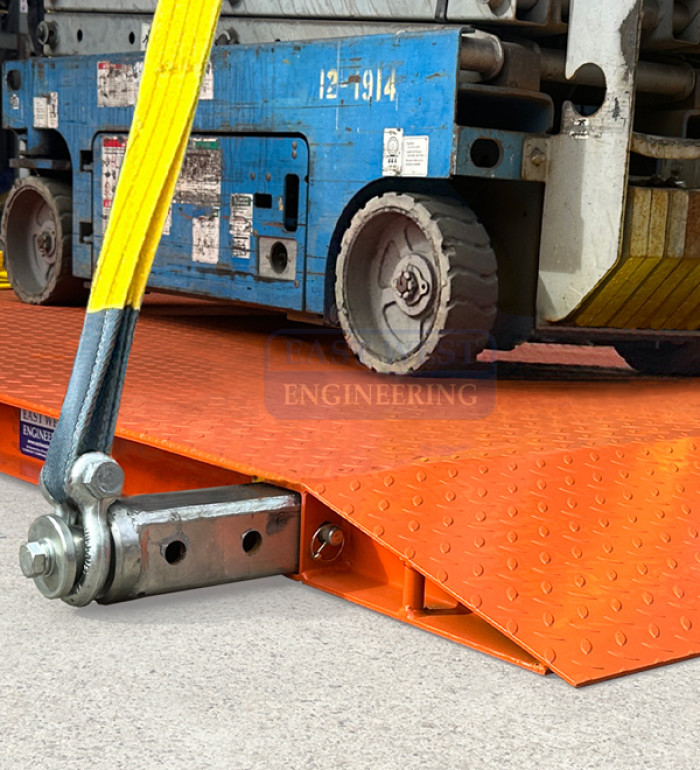

• Extendable crane pick up points allow for oversized loads
• 4 point lift lugs and fork pockets for easy transport and placement
• Multiple tie down points allow various load sizes to be safely secured
• Reinforced underside to eliminate steel fatigue
• Can be transported on a standard width truck
• Durable non-slip tread plate

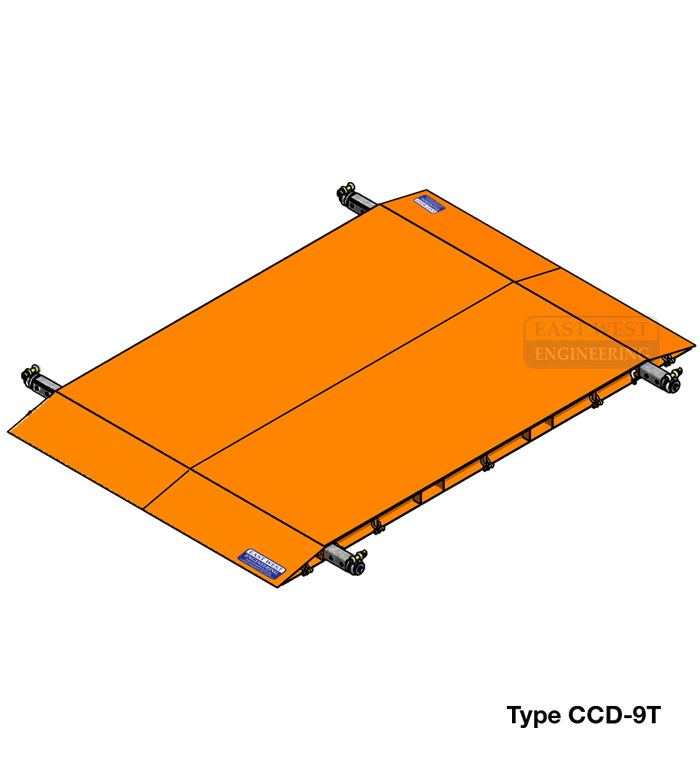

• Model (CCD) supplied as platform only

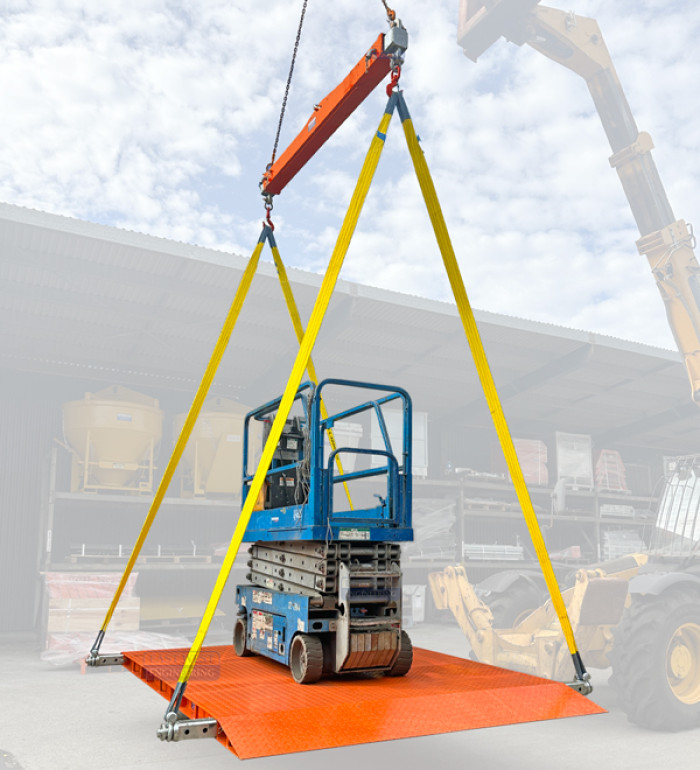

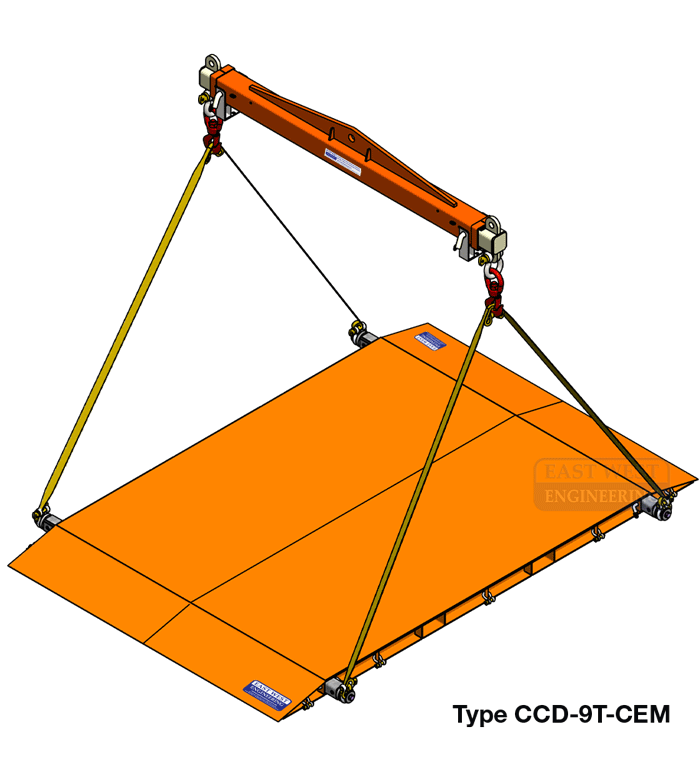

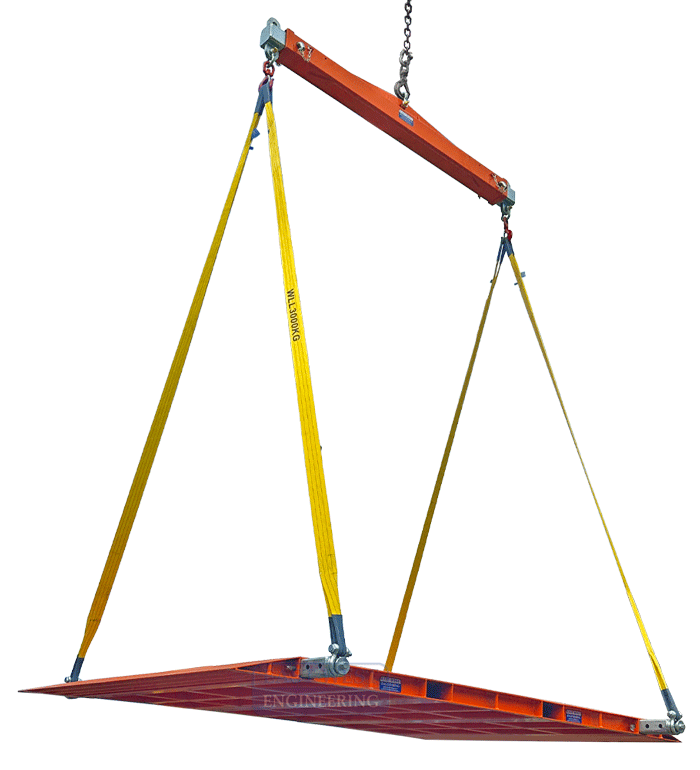

• Model (CCD-CEM) supplied with spreader beam and slings to allow a 4 point lift without contact of load, maximising usable platform space
• Zinc finish

Details


	CCD-3T	CCD-3T-CEL	CCD-9T	CCD-9T-CEM
Working Load Limit (Platform)	3000kg	3000kg	9000kg	9000kg
Deck Size	3570(l) x 2300(w) mm	3570(l) x 2300(w) mm	3570(l) x 2300(w) mm	3570(l) x 2300(w) mm
Spreader Beam	No	Yes	No	Yes
Unit Weight (Platform / Spreader)	670kg	670kg / 140kg	805kg	805kg / 218kg
Fork Pocket Size	180 x 80mm	180 x 80mm	180 x 80mm	180 x 80mm
Fork Pocket Centres	930mm	930mm	930mm	930mm

NOTE: The spreader beam supplied in models CCD-3T-CEL (CEL2439) and CCD-9T-CEM (CEM2439) can be used separately. See below Rated Capacity table for supplied spreader beam.

CEL2439 Rated Capacity (RC) - supplied with CCD-3T-CEL				Unit Weight (kg)
when used as	Fully Retracted (LC@2405mm)	Middle Position (LC@3165mm)	Fully Extended (LC@3925mm)
Length	2500mm	3260mm	4020mm
Lifting Beam	4500kg	2500kg	1300kg	140
Spreader Beam	9000kg	7200kg	5600kg	140

CEM2439 Rated Capacity (RC) - supplied with CCD-9T-CEM				Unit Weight (kg)
When used as	Fully Retracted (LC@2380mm)	Middle Position (LC@3140mm)	Fully Extended (LC@3900mm)	Unit Weight (kg)
Length	2500mm	3260mm	4020mm
Lifting Beam	6000kg	4500kg	2400kg	218
Spreader Beam	10,000kg	10,000kg	10,000kg	218

Model	Description	Price (excl GST)
CCD-3T	Machinery Lifting Platform - 3T	$6,870.00
CCD-3T-CEL	Machinery Lifting Platform - 3T + Spreader Beam	$9,020.00
CCD-9T	Machinery Lifting Platform - 9T	$8,220.00
CCD-9T-CEM	Machinery Lifting Platform - 9T + Spreader Beam	$10,820.00

* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
