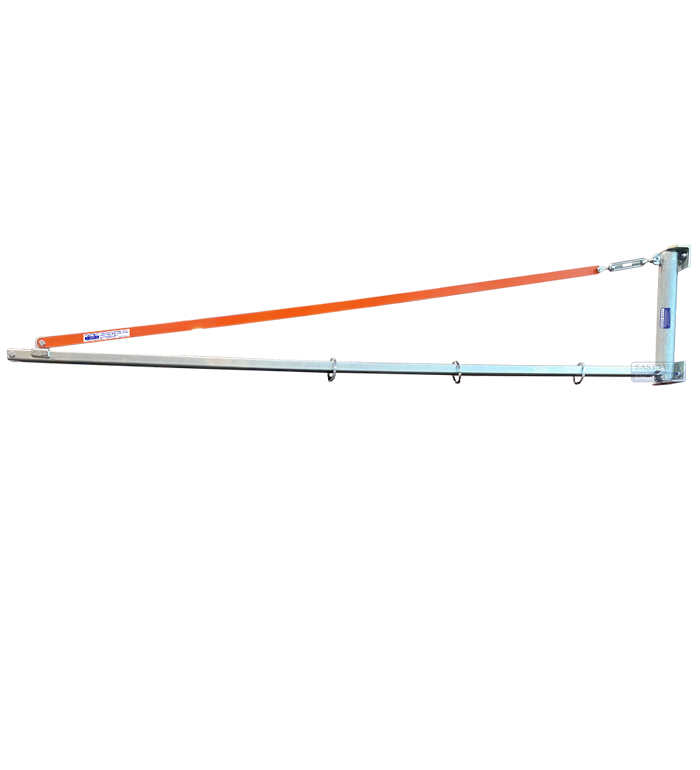

AWH30 Welding Boom

  • AWH30 Welding Boom Arm AWH30 Welding Boom Arm
  • AWH30 Welding Boom Arm 4 wheel trolley fitted to hang wire feeder AWH30 Welding Boom Arm 4 wheel trolley fitted to hang wire feeder
  • AWH30 Welding Boom Arm AWH30 Welding Boom Arm
  • AWH30 Welding Boom Arm with mobile base and post for compelte manoeuvrability around the workshop AWH30 Welding Boom Arm with mobile base and post for compelte manoeuvrability around the workshop
  • AWH30 Welding Boom Arm with mobile base and post for compelte manoeuvrability around the workshop AWH30 Welding Boom Arm with mobile base and post for compelte manoeuvrability around the workshop
  • AWH30 Welding Boom Arm with mobile base and post for compelte manoeuvrability around the workshop AWH30 Welding Boom Arm with mobile base and post for compelte manoeuvrability around the workshop

Quick Overview

The AWH30 Welding Boom is designed to increase welding productivity and safety by extending coverage of the welding area and removing trip hazards and floor clutter.

FEATURES:
• 3.1m boom
• 180° bi-directional rotation of boom arm
• 4 wheel trolley fitted to hang wire feeder
• Top strut fitted with turn buckle to allow leveling of assembly
• Hangers slide freely along beam to support cabling
• Wall mount brackets supplied
• Reduces welder fatigue, strain and non-arc time welding related activities
• Optional post (AW-POST) available for floor mounting
• Optional base (AW-BASE) allows unit to be floor mounted or fit with optional wheel kit for manoeuvrability
• AW-BASE is fitted with fork pockets and cranable when used with AW-POST
• Design & engineered to relevant Australian Standards
• Enamel paint finish


Supplied part assembled for simple on-site installation

Wire feeder and welding equipment not included

Optional base (AW-BASE) is for use with the AW-POST

Details

 Working Load Limit (WLL)    50kg
 Boom Dimensions  3115(L) x 155(w) x 680mm(H)
 Trolley Range  2800mm
 Arm Rotation    180° bi-directional
 Unit Weight  32kg

Model Description Price
(excl GST)
AWH30 Welding Boom
$680.00
AW-POST Optional Welding Boom Post
$1,080.00
AW-BASE Optional Welding Boom Base
$1,060.00
SC60006-006 Optional Wheel Kit (4 Swivel with brakes) 150mm DIA, PU/CI
$300.00
* Prices displayed are the net buying price, ex-GST. Contact East West Engineering for availability and lead times
